Papular 5-Axis CNC Tool Grinder
Papular 5-Axis CNC Tool Grinder
Papular 5-Axis CNC Tool Grinder
Papular 5-Axis CNC Tool Grinder
Papular 5-Axis CNC Tool Grinder
Papular 5-Axis CNC Tool Grinder
Papular 5-Axis CNC Tool Grinder
Papular 5-Axis CNC Tool Grinder
Papular 5-Axis CNC Tool Grinder
Papular 5-Axis CNC Tool Grinder
Papular 5-Axis CNC Tool Grinder
Papular 5-Axis CNC Tool Grinder
Specifications
Model NO. :
DM300
Application :
Metal
Process Usage :
Metal-Cutting CNC Machine Tools
Movement Method :
Linear Control
Control Method :
Closed-Loop Control
Numerical Control :
CNC/MNC
Processing Precision :
0.05~0.06(mm)
Performance Classification :
High-End CNC Machine Tools
Condition :
New
Transport Package :
Metal Case
Specification :
1890mm*1650mm*1980mm
Trademark :
DEMINA
Origin :
China
HS Code :
8460390000
Production Capacity :
50 Sets Peryear
MOQ :
1 Piece
Price :
US $99,800 / Piece
Description
Product Description

DM300 five- axis CNC tool grinder is a CNC tool production machine developed for full grinding tools. It is a five-axis and five-link machine, in which the X,Y,Z is a linear servo shaft and the A,C two axes are rotating shafts. It is specialized in grinding standard milling cutters, drill bits, reamers, non-standard cutters, molding knives and other cutting tools.It is a CNC tool production equipment with low consumption, high efficiency and high accuracy.It has extraordinary advantages in grinding high-speed steel, cemented carbide milling cutters and other material cutters.

Product Parameters
Technical parameter of DM 300
1 X axis travel 950mm
2 Y axis travel 520mm
3 Z axis travel 280mm
4 A axis travel Consecutive 3 6 0 °
5 C axis travel 220°
6 X axis positioning accuracy 0.005mm
7 Y axis positioning accuracy 0.005mm
8 Z axis positioning accuracy 0 005mm
9 A axis positioning accuracy 0.005°
10 C axis positioning accuracy 0.005°
11 Repeat positioning accuracy ± 0 . 00 2 mm
12 Minimum units 0.01°
13 Spindle rated power 1 8 KW; torque 3 0 NM; ( double extension spindle)
14 Speed of main shaft 0 - 10000 RPM/min
15 Number of grinding wheels installed 6-8 pieces
16 Maximum wheel diameter Φ150mm
17 Diameter of Grinding Wheel Rod HSK50E
18 Taper of work-piece shank BT50
19 Maximum grinding length Blade length: 2 6 0 mm;
total Length: 3 0 0 mm
20 Minimum handle diameter Φ3mm
21 Maximum work-piece shank diameter Φ32mm
22 Maximum length of work-piece Φ200mm
23 Working pressure 0 6~0 8 MPa
24 Cooling fluid flow 85L/min
25 Total rated power of equipment 3 2 kw ( three- phase
AC3 8 0 V)
26 Dimensions of equipment 2700*2300*2800
27 Total equipment weight 6000kg

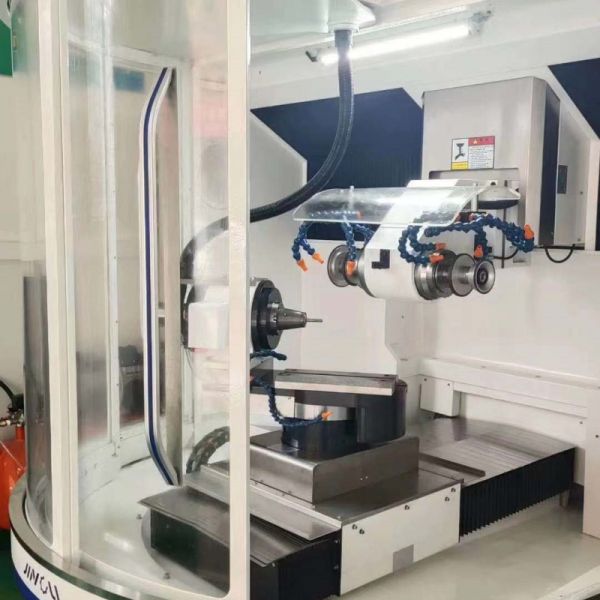

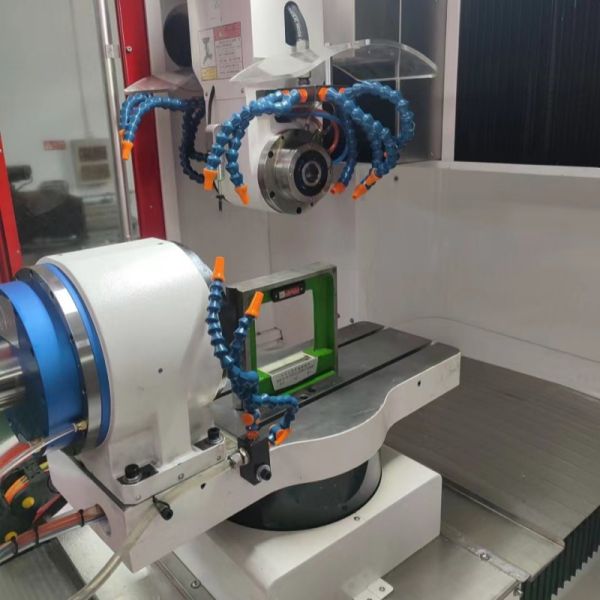

Detailed Photos

Papular 5-Axis CNC Tool GrinderPapular 5-Axis CNC Tool GrinderPapular 5-Axis CNC Tool GrinderPapular 5-Axis CNC Tool GrinderPapular 5-Axis CNC Tool GrinderPapular 5-Axis CNC Tool Grinder
