Specifications
Model NO. :
BT-150DS
Abrasives :
Grinding Wheel
Controlling Mode :
CNC
Automatic Grade :
Automatic
Cylindrical Grinder Type :
Universal Cylindrical Grinder
Precision :
High Precision
Certification :
CE, ISO 9001
Condition :
New
Free Trial Grinding Service :
Yes
Customized :
Yes
Voltage Requested :
380V/Three Phase /50Hz
Diameter of Grinding Wheel :
150mm
Transport Package :
Wooden Case
Specification :
1890*1650*1980mm
Trademark :
DEMINA
Origin :
China
HS Code :
8460390000
Production Capacity :
500
MOQ :
1 Piece
Price :
US $94,000 / Piece
Description
Product Description

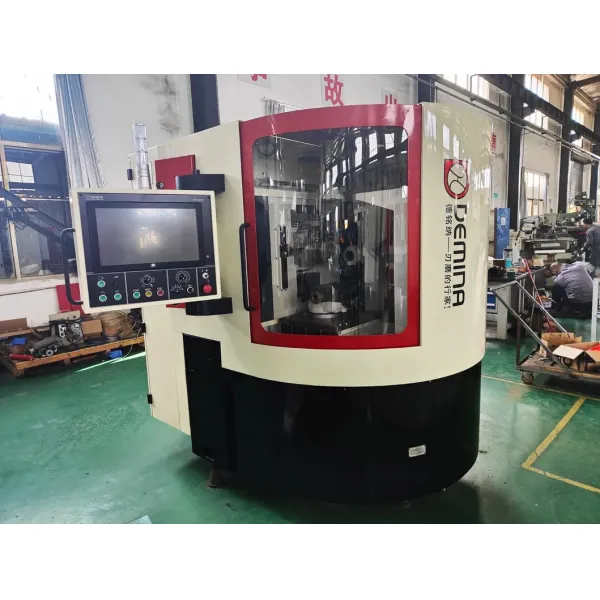

Compared with traditional five-axis CNC tool grinder,BT-150DS has one more axis for grinding wheel inclination.It is flexible enough to grind PCD & PCBN rotary tools,nonstandard carbide insert by means of special fixture and software packages. Probe or video measurement system can be equipped according to user requirements.So carbide tool resharpening and small tool production is also possible on this machine.

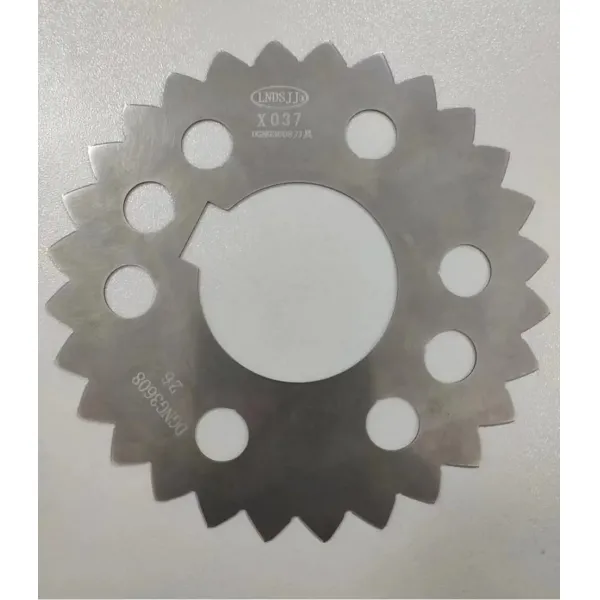

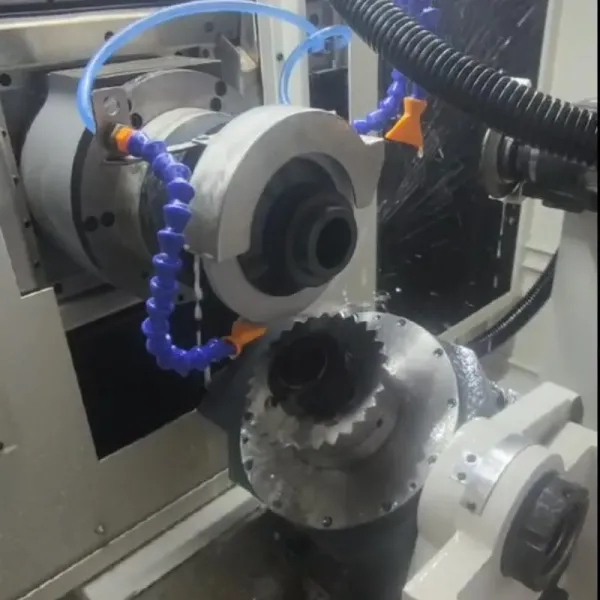

Scope of use of BT-150DS

Bt-150ds CNC Universal Tool Grinder
Bt-150ds CNC Universal Tool Grinder

Product Parameters
1
Diameter of Grinding wheel
150mm
2
Direct Drive Spindle with Water Cooling
5 KW
3
RPM of Grinding Spindle
0~5,000 RPM
4
Spindle speed range
0-8000 RPM
5
Changeable Clearance Angle
-5~25°
6
Max Magnification of Optical Microscope
0.7x~4.5x
7
Industrial PC and Displayer
15 inch
8
Magnification of CCD Measuring System
About 70 times
9
Coolant Tank with Filter Paper
About 70L
10
Electriacl Supply
12KW
11
Voltage Requested
380V/Three Phase/50Hz
12
Weight with Coolant Tank
2000Kg
13
Overall Dimensions
1890*1650*1980mm
Detailed Photos

Bt-150ds CNC Universal Tool Grinder

Bt-150ds CNC Universal Tool Grinder
Bt-150ds CNC Universal Tool GrinderBt-150ds CNC Universal Tool GrinderBt-150ds CNC Universal Tool Grinder

Packaging & Shipping

Bt-150ds CNC Universal Tool Grinder

After Sales Service

1. The warranty period: is one year.
2. During the warranty period, all kinds of failures are repaired and free of charge in time, and all kinds of non-man-made damage to parts will be replaced free of charge in time.
3. Outside the warranty period, the supplier provides lifelong paid maintenance services. If the parts are replaced, the supplier supplies the demand side at a cost price.

Company Profile

Demina mainly engages in mass production of CNC tool grinding machine and provides tool regrinding service. We have been in the field over 20 years. It is a national high-tech enterprise and a SRDI enterprise in Beijing.

Our company's independently developed BT-150 series PCD tool grinding machine closely combines traditional tool grinding technology with software technology. On the basis of ensuring the accuracy of tool grinding, we have achieved CNC tool grinding technology, greatly improving the work efficiency of tool enterprises and effectively reducing their operating costs.

According to the different technical requirements of our customers, our BT-150 series PCD tool grinding machine have three types: manual action, manual and automatic integration, and CNC operation. Among them, the CNC tool grinder with specially developed software is in a leading position in the industry in China. In addition to providing high-quality products, we also provide customers with comprehensive and high-quality after-sales technical support.

FAQ

Q: Are you trading company or manufacture?
A: We are a professional manufacturer. Our products have been exported to Asia, South America, Africa, and have developed a good world wide reputation.

Q: Do you have after sales service?
A: Yes, we have special service team which will offer you professional guidance, or On-site installation in customer Factory.

Q: Do you test all your goods before delivery?
A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.
