Specifications
Brand Name :
JWIM
Model Number :
TN-150
Certification :
CE,CO,ISO
Place of Origin :
made in China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1 set per month
Delivery Time :
15-90 work days
Packaging Details :
wooden cases
Labeling speed :
≤7000 BPH(100ml)
Bottle Diameter :
Φ30-95mm
Label Size :
50-280*40-140mm(L*H)
Label Length :
50-280mm
Labeling precision :
±1mm 95%
Applicable Label :
Label roll inner diameter Φ76.2mm Maximum label roll outer diameter Φ340mm Label backing width 16~200mm
Power Supply/Power :
~220V 50Hz/1.1KW
Machine Size :
2200×1200×1350mm(L×W×H)
Weight :
~234Kg
Description
TN-150 Intelligent Self-adhesive Labeling Machine

1.Introduction
TN-150 intelligent self-adhesive labeling machine adopts programmable control, touch human-machine interface, servo-driven labeling, the whole machine is easy to operate, intuitive, and has a fault display function.
It is suitable for automatic labeling of self-adhesive labels of various round containers.

Tn-150 Auto High-Speed Labeling Machine (7000BPH) – Intelligent Multi-Industry Solution

2.Machine Dimension

Tn-150 Auto High-Speed Labeling Machine (7000BPH) – Intelligent Multi-Industry Solution

3.Technical Parameters

1 Labeling speed ≤7000 BPH(100ml)
*Actual capacity varies according to product size, package material, material characteristics, etc.
2 Bottle Diameter Φ30-95mm
3 Label Size 50-280*40-140mm(L*H)
4 Label Length 50-280mm
5 Labeling precision ±1mm 95% *Labeling accuracy varies according to material and label material.
6 Applicable Label Label roll inner diameter Φ76.2mm Maximum label roll outer diameter Φ340mm
Label backing width 16~200mm
7 Power Supply/Power ~220V 50Hz/1.1KW
8 Machine Size 2200×1200×1350mm(L×W×H)
9 Weight ~234Kg

4.Electrical Configuration

Tn-150 Auto High-Speed Labeling Machine (7000BPH) – Intelligent Multi-Industry Solution

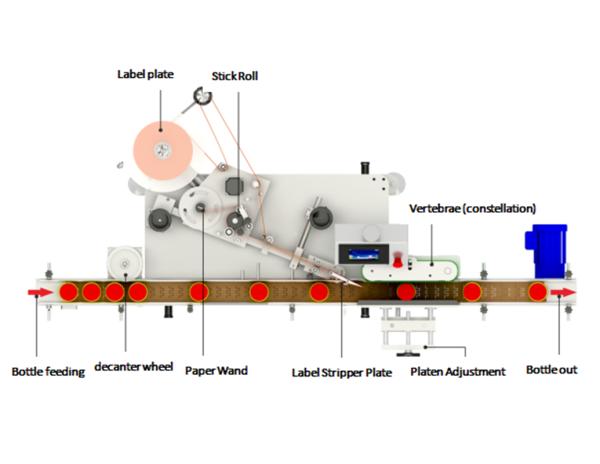

5.Working Process
Bottle feeding--Split BottleRoll--out labeling--Bottle with label passes through rolling label--Out of the bottle--Finish labeling

Tn-150 Auto High-Speed Labeling Machine (7000BPH) – Intelligent Multi-Industry Solution

6.Advantage
6.1 Servo motor + reducer drive labeling mechanism, supporting double buckle paper pressure mechanism, improve the stability of labeling.

Tn-150 Auto High-Speed Labeling Machine (7000BPH) – Intelligent Multi-Industry Solution

6.2 The label feeder adopts wear-resistant rubber produced by special process, made of drive roller structure: excellent friction, non-slip characteristics to ensure the lasting stability of the label feeding function.
6.3 The whole machine electronic control system adopts domestic famous brand, integrated electronic control system, more economical and applicable.

Tn-150 Auto High-Speed Labeling Machine (7000BPH) – Intelligent Multi-Industry Solution

6.4 The independent motor controls the speed of rolling label, which is easy to adjust and saves adjustment time.

Tn-150 Auto High-Speed Labeling Machine (7000BPH) – Intelligent Multi-Industry Solution

6.5 Adopting single bottle dividing wheel structure, making the spacing of bottles to be labeled more accurate and consistent.
6.6 The center sleeve of the label placing tray adopts double-layer fixation, which can meet the label rolls with different sizes of label rolls within a certain range.
6.7 Put the label tray center sleeve using soft polyurethane production, can meet a certain range of label rolls within the set of different sizes of label rolls.

Tn-150 Auto High-Speed Labeling Machine (7000BPH) – Intelligent Multi-Industry Solution
