round bottle sticker labelling machine For Glass Bottles 100bottles min
round bottle sticker labelling machine For Glass Bottles 100bottles min
round bottle sticker labelling machine For Glass Bottles 100bottles min
round bottle sticker labelling machine For Glass Bottles 100bottles min
round bottle sticker labelling machine For Glass Bottles 100bottles min
round bottle sticker labelling machine For Glass Bottles 100bottles min
round bottle sticker labelling machine For Glass Bottles 100bottles min
round bottle sticker labelling machine For Glass Bottles 100bottles min
round bottle sticker labelling machine For Glass Bottles 100bottles min
round bottle sticker labelling machine For Glass Bottles 100bottles min
Specifications
Brand Name :
JWIM
Model Number :
TZ-100D
Certification :
CE，ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1 Osets per month
Delivery Time :
15-90 work days
Packaging Details :
wooden cases
Product name :
TZ-100D
applicable bottle type :
Φ30-95mm diameter
marking speed :
≤ 100 bottles / min
marking accuracy :
± 1 mm (mm)
Post Length :
50-280 mm (mm)
Mapping Height :
40-150 mm (mm)
Power supply :
~380 V, 50 Hz Total power: 1.2 kW
Overall Dimensions :
2500 × 1000 × 1200 (L × W × H) mm
Complete weight :
approximately 700 kg
Description

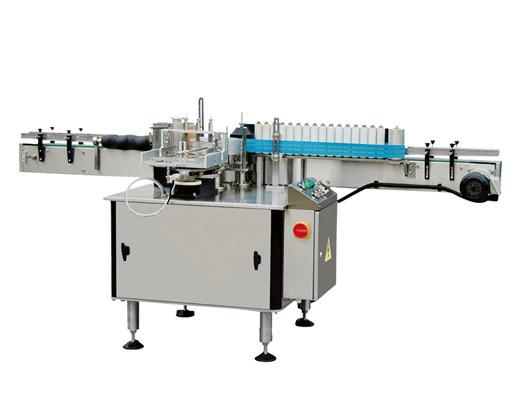

TZ-100D-type paper adhesive marking machine

I. Overview

TZ-100D paper adhesive labeling machine is suitable for continuous paper labels of cylindrical containers, such as round glass bottles, plastic bottles, polyester bottles, etc., which can automatically mark, glue and paste the label, under the control of the detector.

round bottle sticker labelling machine For Glass Bottles 100bottles min

II. Equipment characteristics

2.1. Unique designed glue dispenser is simple and convenient when adding glue.

round bottle sticker labelling machine For Glass Bottles 100bottles min

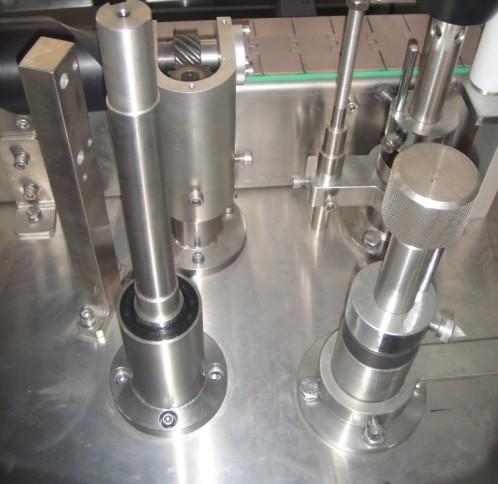

2.2. The screw is bottled and added into the bottle testing device to realize the function of not marking without bottle.

round bottle sticker labelling machine For Glass Bottles 100bottles min

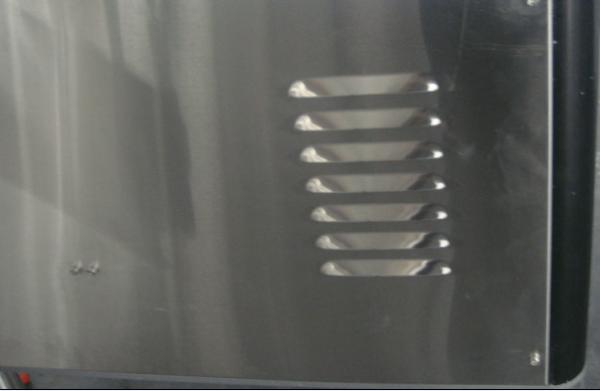

2.3. Box installation and exhaust window can effectively reduce the heat generated by the motor operation, improve the efficiency, and prolong the service life.

round bottle sticker labelling machine For Glass Bottles 100bottles min

2.4. Simple and reliable structure setting, simple and convenient to replace the specifications.

round bottle sticker labelling machine For Glass Bottles 100bottles min

III. Main technical parameters

1, applicable bottle type: Φ30-95mm diameter

2, marking speed: ≤ 100 bottles / min

3, marking accuracy: ± 1 mm (mm)

4, Post Length: 50-280 mm (mm)

5, Mapping Height: 40-150 mm (mm)

6, power supply: ~380 V, 50 Hz

Total power: 1.2 kW

8, Overall Dimensions: 2500 × 1000 × 1200 (L × W × H) mm

9, complete weight: approximately 700 kg

IV. Equipment configuration table

No ial Name Location Brand name
1 Converconverter

Taiwan

 Delta City
2 Contactor

France

 Schneider
3 Thermal relay

France

 Schneider
4 The C-2 controller Taiwan Yangming
5 Fiber-optic sensor Japan OPTEX.
6 Air source processor Germany FESTO.
7 Solenoid valve

Germany

 FESTO.
