Specifications
Description

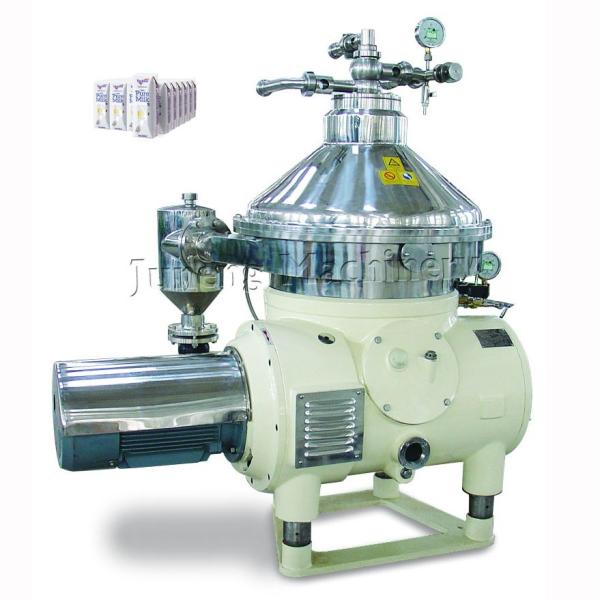

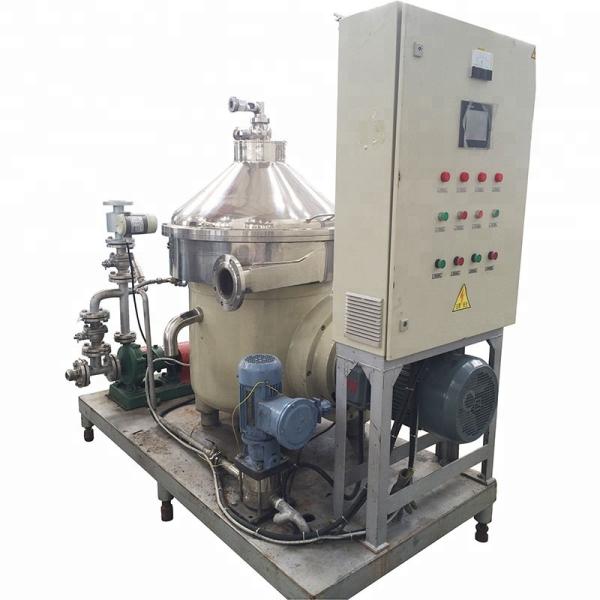

Disc Bowl Milk Cream 3 Phase Separator Machine
Product Application
Juneng dairy separator features large capacity, excellent deoiling performance, high efficiency, and lower energy consumption. The advanced inlet and outlet design ensures gentle treatment throughout the separation process, preventing destructive air entry and maintaining product quality.
Milk products vary widely in composition, from simple market milk with different fat contents to diverse dairy products including butter, cheese, quark, and yogurt.
Industrial Milk Cream Separator 3000-7000L/H 15KW 220V-460V
Industrial Milk Cream Separator 3000-7000L/H 15KW 220V-460V
Industrial Milk Cream Separator 3000-7000L/H 15KW 220V-460V
Main Features
  • High rotating speed
  • Operating stability
  • Completely sealed inlet and outlet system
  • Lower noise operation
  • Perfect separation efficiency
Technical Specifications
Model Treatment capacity (L/H) Inlet Pressure (Mpa) Outlet pressure (Mpa) Motor power (Kw) Weight (Kg) Outline dimension (mm)
DHNZ204 1000-1500 0.05 0.1-0.2 4 520 810*850*1350
DHNZ360 1000-3000 0.05 0.1-0.3 7.5 1200 1530*1150*1500
DHNZ470 3000-7000 0.05 0.1-0.4 15 1600 1800*1200*2030
DHNZ550 5000-10000 0.05 0.1-0.4 22 2300 1950*1550*1960
Machine Components
Disc
Brand: Juneng | Origin: China

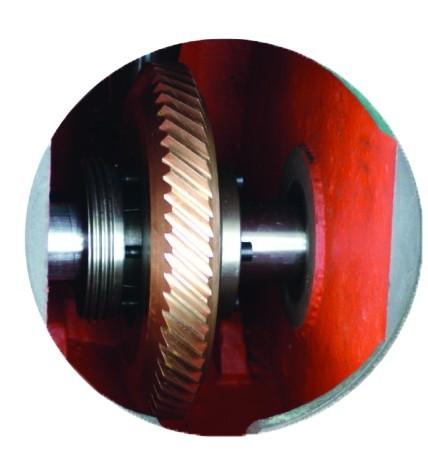

Shaft
Brand: Juneng | Origin: China
The vertical shaft transmits power and is equipped with speed step-up gear (small spiral gear) and high-speed rotating parts. The cross shaft transmits motor power to the vertical shaft and main drum components.
Industrial Milk Cream Separator 3000-7000L/H 15KW 220V-460V
Industrial Milk Cream Separator 3000-7000L/H 15KW 220V-460V
Drum
Brand: Juneng | Origin: China
The drum is the high-speed rotating component that performs material separation, serving as the heart of the separator.
Equipment Base
Brand: Juneng | Origin: China
The underframe supports the entire separator and connects to the base. All four supporting feet feature damping rubber pads that effectively isolate vibration between the separator and building structure.
Industrial Milk Cream Separator 3000-7000L/H 15KW 220V-460V
Test & Inspection
  • Material Test Report
  • Magnetic Particle Examination
  • Nondestructive Examination
  • Liquid Penetrant Examination
  • Dynamic Balancing Test
  • Radiographic Examination
Industrial Milk Cream Separator 3000-7000L/H 15KW 220V-460V
Industrial Milk Cream Separator 3000-7000L/H 15KW 220V-460V
Industrial Milk Cream Separator 3000-7000L/H 15KW 220V-460V
Our Service
Industrial Milk Cream Separator 3000-7000L/H 15KW 220V-460V
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing opportunities
Industrial Milk Cream Separator 3000-7000L/H 15KW 220V-460V
After-Sales Service
  • Machine installation training
  • Operator training
  • Overseas engineer support
We maintain a dedicated division to support on-site service domestically and overseas. Upon order, our technical engineer will assist with equipment installation to ensure smooth operation and provide comprehensive operator training.
Industrial Milk Cream Separator 3000-7000L/H 15KW 220V-460V
Certifications
Industrial Milk Cream Separator 3000-7000L/H 15KW 220V-460V
Exhibitions We Attended
We have participated in numerous international exhibitions including ACHEMA, AchemAsia 2019, ProFood Tech, 21st Interphex Week Japan, Spring and Autumn Canton Fair, and other domestic trade shows.
Industrial Milk Cream Separator 3000-7000L/H 15KW 220V-460V
Packing & Delivery
Industrial Milk Cream Separator 3000-7000L/H 15KW 220V-460V
Packaging
Size 123 (L) * 456 (W) * 789 (D)
Weight 1.2 T
Standard packaging includes wooden boxes (Size: L*W*H). For European exports, wooden boxes are fumigated. For tight container fits, we use PE film packaging or accommodate special customer requests.
