SUS304 Stainless Steel Refrigerated Air Dryer For Medical Air Compressor
SUS304 Stainless Steel Refrigerated Air Dryer For Medical Air Compressor
SUS304 Stainless Steel Refrigerated Air Dryer For Medical Air Compressor
SUS304 Stainless Steel Refrigerated Air Dryer For Medical Air Compressor
SUS304 Stainless Steel Refrigerated Air Dryer For Medical Air Compressor
SUS304 Stainless Steel Refrigerated Air Dryer For Medical Air Compressor
SUS304 Stainless Steel Refrigerated Air Dryer For Medical Air Compressor
SUS304 Stainless Steel Refrigerated Air Dryer For Medical Air Compressor
Specifications
Brand Name :
Jufeng
Certification :
CE, ISO, etc.
Place of Origin :
China
MOQ :
1 unit
Price :
contact us
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 units per month
Delivery Time :
3-15 working days after the payment
Model Number :
JS-06
Packaging Details :
Carton packaging
Name :
Refrigerated Air Dryer
Air Volume :
0.6m³/min
Pressure :
7-20 bar
Power Supply :
380~415VAC 50Hz 3P
Input Power :
0.38kw
Material :
SUS 304
Pressure dew point :
2-10℃
Cooling method :
Air-cooled
Refrigerant :
R410A or you need
Inlet/Outlet Size :
G1/2''
Size :
400*342*540mm
Weight :
25kg
Description

SUS304 Stainless Steel Refrigerated Air Dryer For Medical Air Compressor


Product Introduction


The Jufeng JS Series Refrigerated Air Dryer utilizes an integrated 3-in-1 heat exchanger made of SUS304 or SUS316 stainless steel. This design offers high corrosion resistance and prevents.
With higher pressure resistance, our customized products can support operating pressures of up to 5.0 MPa, enabling us to provide a wider range of drying solutions for compressed air andinert gases.

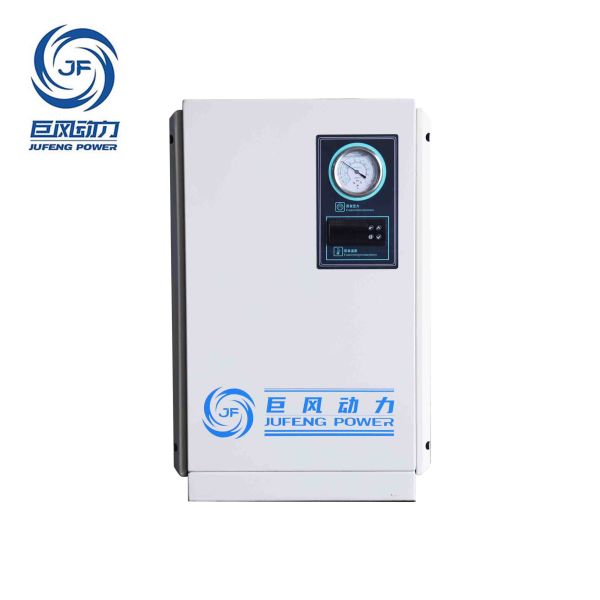

Product photo


SUS304 Stainless Steel Refrigerated Air Dryer For Medical Air Compressor


Product parameters


Model

Air flow

m³/min

Pressure

Mpa

 Power supply

Air pipe connection

 Refrigerant

Total power consumption

kw

Dimension

mm

 Weight
JS-12 1.2 0.7~2.0 220~240VAC-50Hz-1P G3/4'' R410A 0.54 620*440*825 37
JS-16 1.6 G1'' 0.6 620*440*830 43
JS-26 2.6 0.86 660*500*790 49.5
JS-38 3.8 G1½'' 0.91 660*500*850 57.5
JS-65 6.9 1.97 820*580*985 80.5
JS-85 8.5 G2'' 3.3 820*580*985 126
JS-115 11.5 3.43 1080*660*1100 126
JS-135 13.5 3.8 1080*660*1100 141
