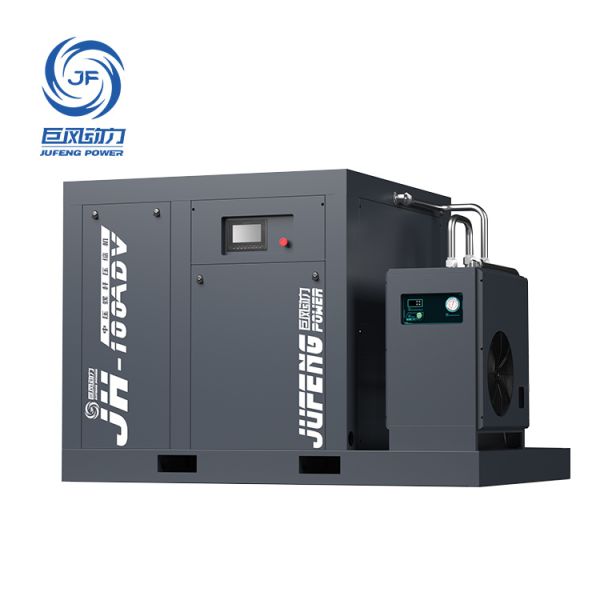

Jufeng 100kw 30bar Two Stage Medium-pressure Screw Air Compressor
Jufeng 100kw 30bar Two Stage Medium-pressure Screw Air Compressor
Jufeng 100kw 30bar Two Stage Medium-pressure Screw Air Compressor
Jufeng 100kw 30bar Two Stage Medium-pressure Screw Air Compressor
Jufeng 100kw 30bar Two Stage Medium-pressure Screw Air Compressor
Jufeng 100kw 30bar Two Stage Medium-pressure Screw Air Compressor
Jufeng 100kw 30bar Two Stage Medium-pressure Screw Air Compressor
Jufeng 100kw 30bar Two Stage Medium-pressure Screw Air Compressor
Specifications
Brand Name :
Jufeng
Model Number :
JH-135ADV
Certification :
CE, ISO, etc.
Place of Origin :
China
MOQ :
1 unit
Price :
Contact us
Payment Terms :
L/C,D/A,MoneyGram,Western Union,T/T,D/P
Supply Ability :
1000 units per month
Delivery Time :
15-30 work days
Packaging Details :
wooden case
Model :
JH-135ADV
Pressure :
Medium
Working Pressure :
3.0MPa
Motor Power :
100KW
Voltage :
380V/50Hz
Control System :
PLC
Power :
Electric
Warranty :
1 Year
Description

Jufeng 100kw 30bar Two Stage Medium-pressure Screw Air Compressor


Introduction


The Jufeng 100kW 30Bar two-stage screw air compressor is specifically designed for industries requiring stable, medium-to-high pressure air flow. By utilizing advanced two-stage compression technology, this unit significantly reduces internal leakage and improves volumetric efficiency, delivering up to 15% more compressed air compared to single-stage units of the same power.


Key features& Benefits


  • Optimized Two-Stage Air End: Lower compression ratio per stage increases bearing life and reliability.
  • High-Efficiency 100kW Motor: IP54/IP55 protection level, ensuring continuous operation in harsh environments.
  • 30Bar Steady Output: Perfect for PET bottle blowing, hydro-power stations, and other industries.
  • Advanced Cooling System: Oversized cooler design prevents overheating even in high ambient temperatures.
  • Intelligent Control System: Real-time monitoring of pressure, temperature, and maintenance schedules via a user-friendly PLC.


Technical Specifications


Parameter Specification Details
Model JH-135ADV(Two-Stage)
Pressure 30 bar
Displacement 4.1~8.3m³/min
Speed 3500r/min
Voltage/Frequency 380v/50hz
Motor protection grade IP54
Cooling method Air cooling/ Water cooling Optional
Starting method Variable frequency starting
Outlet size DN40
Size

2000*2150*1950mm
Weight

3180kg


Why choose Jufeng two-stage compression


Single-stage compressors struggle with high heat and energy loss when reaching 30Bar. Our Two-Stage Technology breaks the compression process into two steps, allowing for inter-stage cooling. This leads to:

  • Lower Discharge Temperature: Prevents oil carbonization.
  • Reduced Energy Costs: Closer to isothermal compression, saving you thousands in electricity annually.
  • Longer Service Intervals: Balanced loads extend the life of rotors and bearings.
