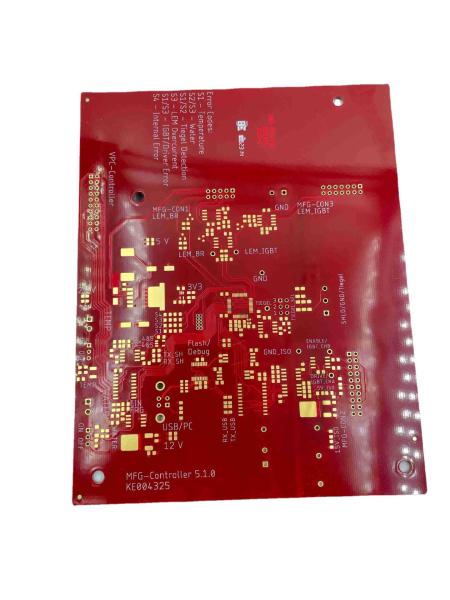

Multilayer Prototype PCB Assembly Custom Rectangular Irregular Shape
Multilayer Prototype PCB Assembly Custom Rectangular Irregular Shape
Specifications
Brand Name :
JIETENG
Model Number :
PCB
Certification :
ISO/TS16949/RoHS/TS16949
Place of Origin :
Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Negotiable
Supply Ability :
150000 Square Meter/Square Meters per Year
Delivery Time :
5-8 days for delivery
Packaging Details :
Inner vacuum packing, outer standard carton
Description

Custom multi-layer circuit board processing needs to provide design research and development

Essential details
Model Number:
PCB-10
Type:
consumer electronics pcba
Place of Origin:
Guangdong, China
Brand Name:
JIETENG
Supplier Type:
Customisation
Copper Thickness:
2 OZ, 1oz
Layers:
4layers
Base Material:
FR4
Board Thickness:
1.6mm
Min. Hole Size:
0.25mm
Min. Line Width:
3mil
Min. Line Spacing:
0.003"
Surface Finishing:
HASL
Material:
FR4

Layer 1~64 Layers
Material FR4, CEM1, CEM3, Hight TG, Rogers, F4B, Taconic, FR1, FR2, 94V0, Aluminum
Production Capacity 30000 ㎡/months
Board shape Rectangular, Round, Slots, Cutouts, Complex Irregular
Board cutting Shear, V-Score, Tab-Routed, Counter Sunk
Board thickness 0.2~8.0mm, Flex 0.1-0.25mm
Copper weight 0.5oZ~12oZ
Solder Mask Double-sided Green LPI, Red, White, Yellow, Blue, Black, Purple etc.Solder mask
Silk screen Double-Sided or Single-Sided in White, Yellow, Black etc
Min line width/space 0.08mm/3mil
Max board dimensions 25.6inch*43.3inch or 650mm*1100mm
Min drill hole diameter 0.1mm
Min Laser Drill hole diameter 0.075mm
Surface finish HASL, ENIG, Immersion Tin, Immersion Silver, OSP,ENEPIG etc
Board thickness toleranc ± 10%
Min slot width 0.12",3.0mm,or 120mils
V-score depth 20-25% of board thickness
PTH Wall Thickness >0.025mm
PTH Hole Dia Tolerance ±0.076mm
Non PTH Hole Dia Tolerance ±0.05mm
Hole Position Deviation ±0.076mm
Sink holes Yes
Quality Standard IPC-A600F/MIL-STD-105D
Design file format Gerber RS-274X, 274D, Eagle and AutoCAD'S DXF,DWG
