48V 460AH Battery For Industrial Forklifts-Robust Deep-Cycle Performance
48V 460AH Battery For Industrial Forklifts-Robust Deep-Cycle Performance
48V 460AH Battery For Industrial Forklifts-Robust Deep-Cycle Performance
48V 460AH Battery For Industrial Forklifts-Robust Deep-Cycle Performance
48V 460AH Battery For Industrial Forklifts-Robust Deep-Cycle Performance
48V 460AH Battery For Industrial Forklifts-Robust Deep-Cycle Performance
48V 460AH Battery For Industrial Forklifts-Robust Deep-Cycle Performance
48V 460AH Battery For Industrial Forklifts-Robust Deep-Cycle Performance
48V 460AH Battery For Industrial Forklifts-Robust Deep-Cycle Performance
48V 460AH Battery For Industrial Forklifts-Robust Deep-Cycle Performance
Specifications
Brand Name :
JSTARY
Model Number :
JX-B48460
Certification :
UN38.3 MSDS CE
Place of Origin :
CHINA
MOQ :
5 Pcs
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1,000 items per week
Delivery Time :
5 - 7 working days
Packaging Details :
Ship safely in wooden crates or cardboard boxes.
Description





48V 460AH Battery For Industrial Forklifts-Robust Deep-Cycle Performance








The 48V 460AH forklift lithium - ion battery serves as the core power source for the efficient operation of electric forklifts. With its outstanding performance, it is widely used in various fields such as warehousing logistics and manufacturing, becoming the preferred power solution in the modern material handling industry.



48V 460AH Battery For Industrial Forklifts-Robust Deep-Cycle Performance


With Iron Frame







48V 460AH Battery For Industrial Forklifts-Robust Deep-Cycle Performance



No Iron Frame







PRODUCT INFORMATION



48V 460AH Forklift Battery
Parameter Details
Nominal Voltage 51.2V
Nominal Capacity 460Ah
Total Energy 23.55KWh
Max Charge Voltage 58.4V (prevents overcharging)
Discharge Cut-off 40V (recharge to avoid damage)
Standard Charge Current 100A, ~5-hour full charge
Max Charge 230A (continuous)
Max Discharge 460A
Peak Discharge Current 800A (10s)
Cycle Life >4000 cycles @80% DOD
Charge Temp 0°C–60°C
Discharge Temp -20°C–65°C

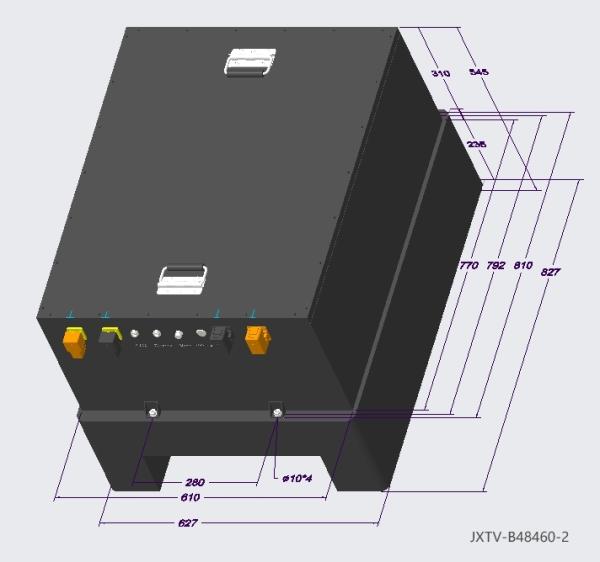

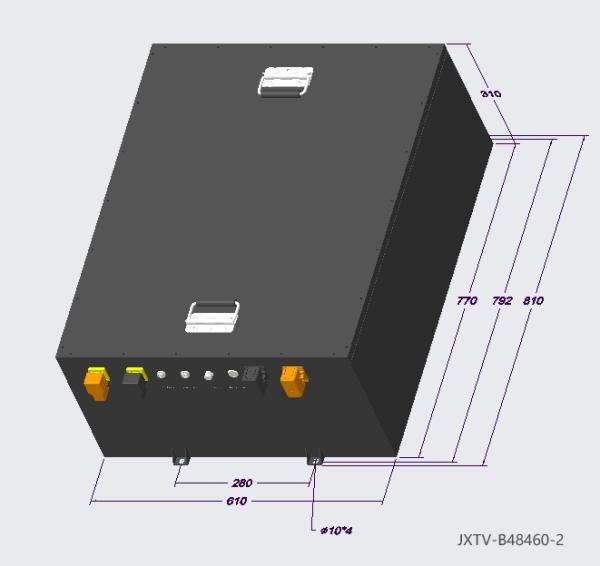

Dimensions 827×627×545mm (With iron frame)
Weight 90KG
IP Rating IP65 (dust/water resistant)
BMS Protection Over Charge, Over Discharge, Over Current, Short Circut, High temperature alarm






48V 460AH Battery For Industrial Forklifts-Robust Deep-Cycle Performance







Working Principle and Structure


The 48V forklift battery converts chemical energy to electrical energy. In lithium - ion batteries, lithium ions move between electrodes during charging and discharging, with electrons flowing through the external circuit to power the forklift. These batteries use multiple series - connected cells to reach 48V. Typically, 13 or 14 cells are used, and cell quantity/type determines capacity and performance. An advanced Battery Management System (BMS) monitors voltage, current, and temperature. It regulates charging/discharging, ensuring stable performance and safe operation.




48V 460AH Battery For Industrial Forklifts-Robust Deep-Cycle Performance





Core Performance


48V 460AH Battery For Industrial Forklifts-Robust Deep-Cycle Performance





Power & Endurance:

48V/460AH outputs stable, strong current, enabling forklifts to handle heavy loads, slopes, and frequent stops. In large warehouses, it supports 4 - 6 hours of continuous work, reducing battery - related downtime.

Fast Charging:

With dedicated chargers and advanced tech, it fully recharges from low in 2 - 3 hours. Forklifts can quickly charge during breaks, enhancing operational efficiency.

Long Lifespan:

Built with high - quality cells and strict processes, it endures 1500 - 2000 charge - discharge cycles, outlasting lead - acid batteries by 2 - 3 times and cutting maintenance costs.




48V 460AH Battery For Industrial Forklifts-Robust Deep-Cycle Performance






48V 460AH Battery For Industrial Forklifts-Robust Deep-Cycle Performance
