Specifications
Place of Origin :
China
Brand Name :
SWS
MOQ :
1
Weight :
5 kg
Core components :
Carbon steel
Valve type :
single valve & double valve
Machine Type :
Drilling Tool
Processing Type :
Forging
Size range :
2-3/8~20"
Thread Type :
BTC\LTC\ Special Thread\EU\NU
Material :
Aluminum Alloy
Hi Flow valve sizes :
70mm and 90mm
Valve body material :
Fibre phenolic
Pressure rating :
70MPa
Temperature rating :
204°C
Spring material :
Phospher bronze C510
Plunger seal material :
HNBR
Min Bore Parameter :
2"
Description
Company Profile
API Standard 2-3/8
CORPORATE BRIEF
We(SWS) is a professional company engaged in the development, manufacturing, sales and service of downhole oil tools; Advanced downhole tool manufacturing technology from the U.S. and Canada is used to provide casing accessories that exceed industry quality standards to meet the challenging cementing tool needs of oilfields around the world.

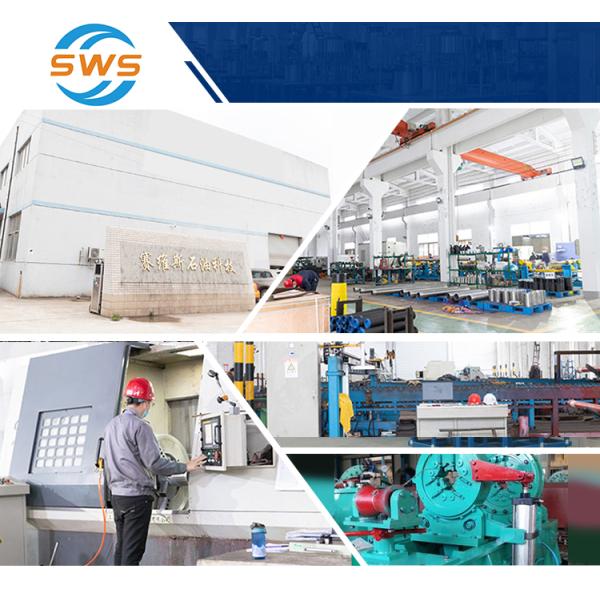

To meet these demands, we have established a manufacturing facility of 78000sq ft. This facility has modern CNC machining, fabrication and processing equipment, testing and inspection facilities,together with raw material and production storage.

MAIN PRODUCTS

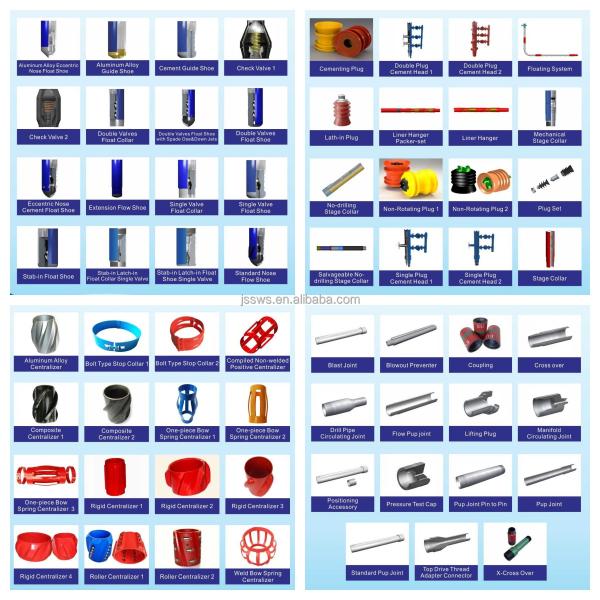

Our main products are: float collar and shoes, stage collars, liner hangers, Packer, cement plugs, cement heads, centralizers, casing and tubing, pup joints, coupling, etc.
API Standard 2-3/8
Certifications
API Standard 2-3/8
Product Description

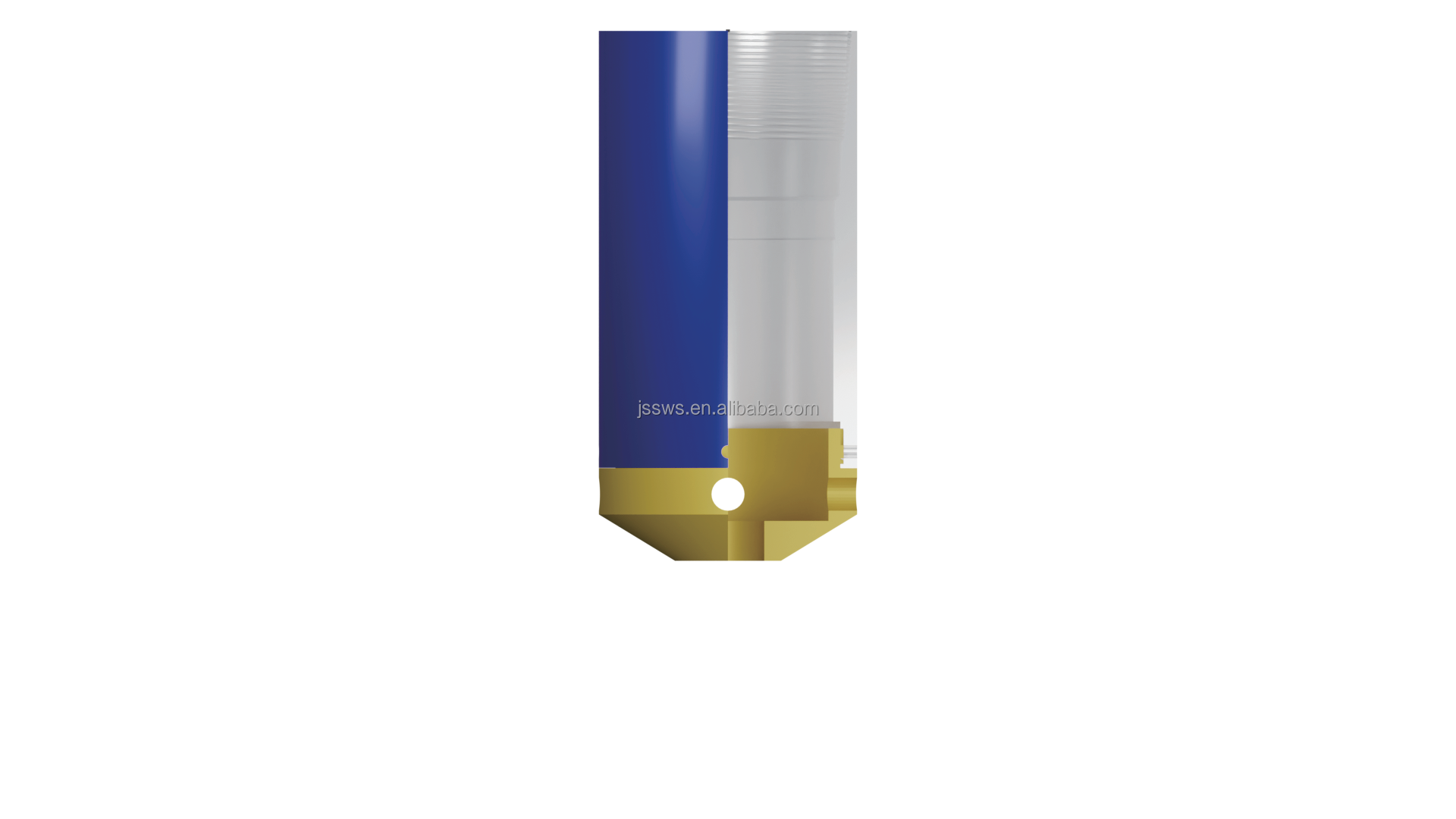

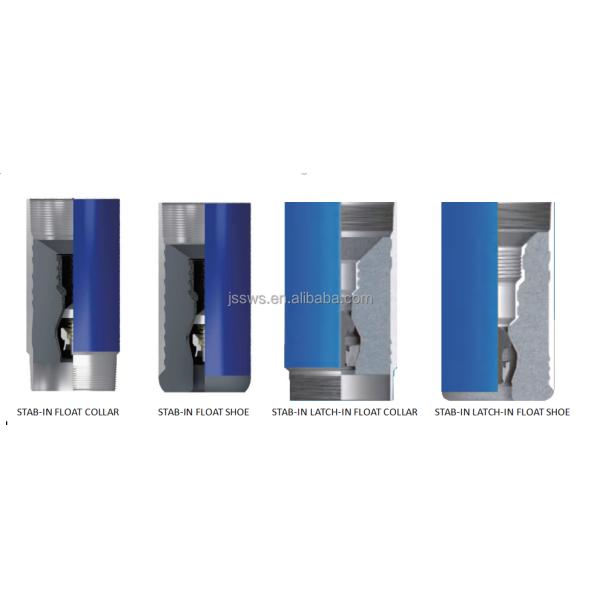

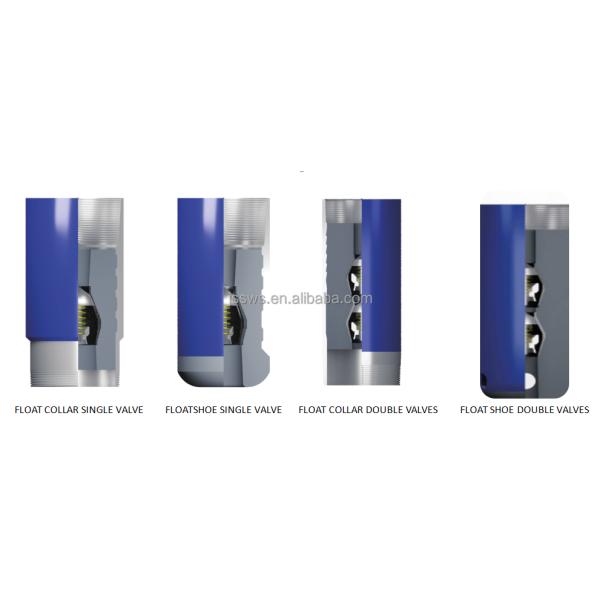

Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guids the casing to total depth and prevents contaminated mud from entering the casing. Also, it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures great accuracy of cement slurry displacement.

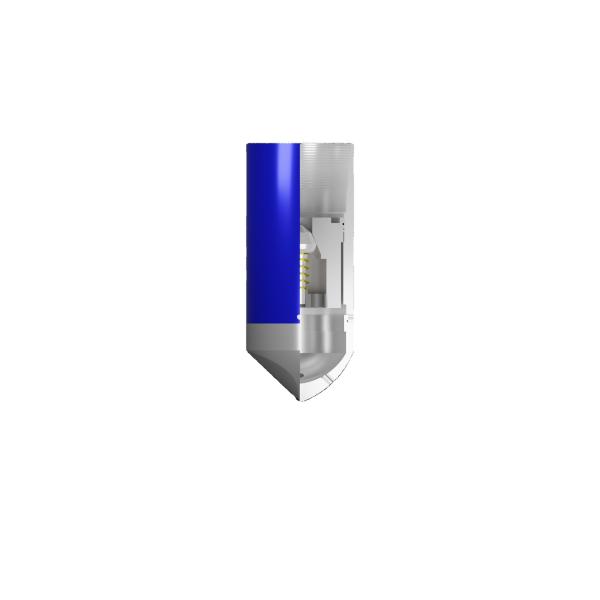

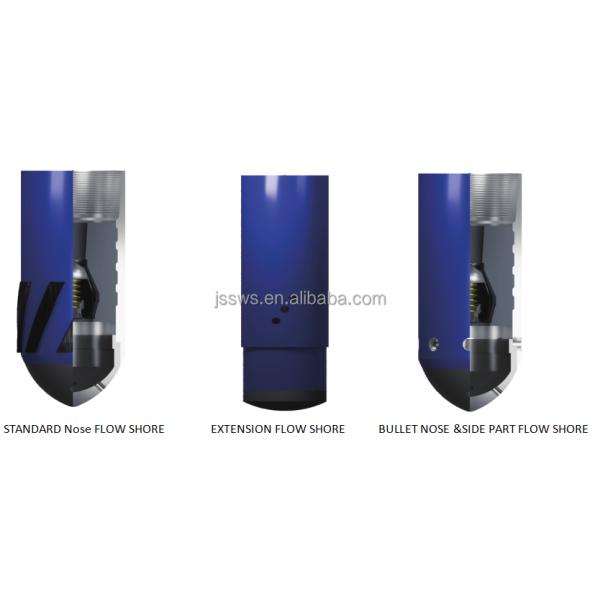

Hi Flow valves to reduce fluid erosion and minimize pressure drop. Hi Flow valves are manufactured in two sizes 70mm and 90mm. PDC drillable composite plastic materials used for the valve components. Standard seal rated to 150°C with optional 204°C seal.
Valve body moduled with fibre phenolic,70MPa and 204°C seal. Spring purchased from Canada victoryspring Company,phospher bronze C510 material,high restoring force and drillable. Plunger sealtop moduled with HNBR,70MPa and 204 seal.
API Standard 2-3/8
API Standard 2-3/8
API Standard 2-3/8
API Standard 2-3/8
API Standard 2-3/8
API Standard 2-3/8
API Standard 2-3/8
Specification
Name
Size(in)
Bore O.D.(in)
Bore I.D.(in)
Min Bore
Parameter(in)
Thread Type
lb(in2)
Float Collar
5 1/2"
6"
4 3/4"
2"
5 1/2” LCSG
4351
7"
7 5/8"
6 1/4"
2 3/8"
7" LCSG
3626
9 5/8"
10 5/8"
8 5/8"
2 3/8"
9 5/8" LCSG
3626
13 3/8"
14 3/8"
12 3/8"
2 3/8"
13 3/8" LCSG
3626
Float Shoe
5 1/2"
6"
4 3/4"
2"
5 1/2" LCSG
4351
7"
7 5/8"
6 1/4"
2 3/8"
7" LCSG
3626
9 5/8"
10 5/8"
8 5/8"
2 3/8"
9 5/8" LCSG
3626
13 3/8"
14 3/8"
12 3/8"
2 3/8"
13 3/8" LCSG
3626
Our Factory
API Standard 2-3/8
Device image
API Standard 2-3/8
Exhibition
API Standard 2-3/8
Product packaging
API Standard 2-3/8
FAQ
API Standard 2-3/8
Q1、When can I get the price? A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority. Q2、Could I have prices of your products? A: Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours. Q3、Can I get a lower price if I order large quantities? A: Yes, cheaper prices with more bigger quantity orders. Q4、Do you inspect the finished products? A: Yes, each step of production and finished products will be came out inspection by QC department before shipping. Q5、What about the lead time for the mass production? A: Honestly, it depends on the order quantity and the season you place the order.
Send your message to this supplier
Send Now

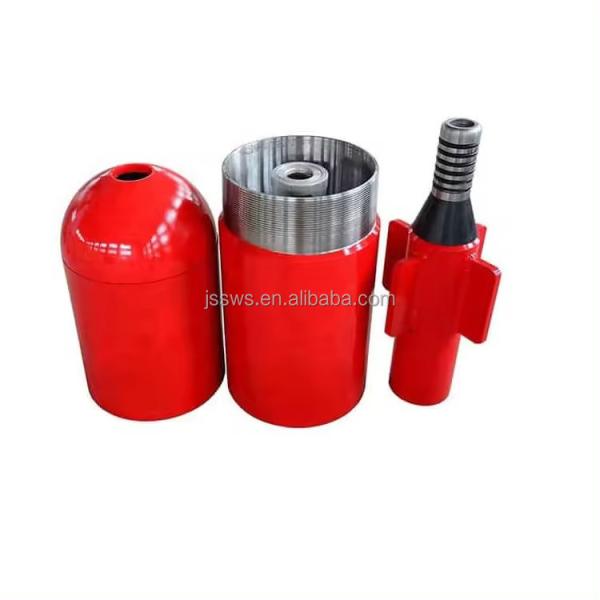

API Standard 2-3/8" Aluminum Alloy Float Shoe for Cementing
