Specifications
Model Number :
343
Place of Origin :
CHINA
Brand Name :
SWS
MOQ :
MOQ as per type requirements
Price :
Details pls contact our staff
Packaging Details :
Export standards packaging and others requirements should be clarified in advance
Delivery Time :
Delivery ex-mill details need to discuss
Payment Terms :
T/T or LC irrevocable In sight
Supply Ability :
As requirement
Shape :
bullet nose
Value choose :
single or double
Type :
helical or straight, with or without carbide coating
Type2 :
Down jet or side parts
Type3 :
with or without deflectors
Description

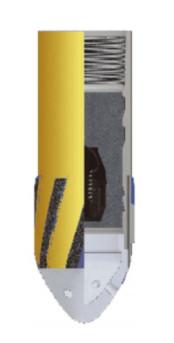

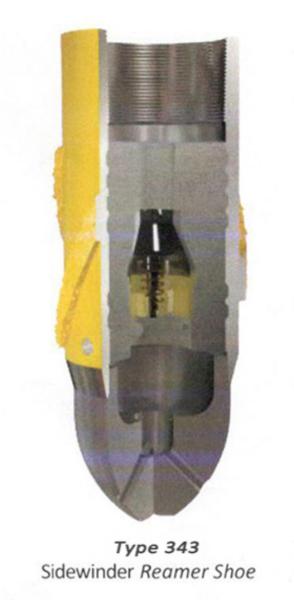

343 SERIES REAMER FLOAT SHOE

(INDEPEDENT) 343 SERIES REAMER FLOAT SHOE , CEMENTING TOOLS,FLOAT EQUIPMENT, WELL BORE TOOLS

ADVANTAGES AND MAIN FEATURES

1- The series 343 float shoes can be provided with many options to tailor the product for use in moderate to adverse well bore conditons

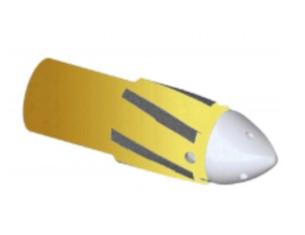

2- Helical Carbide Coated Blades that extend down the contour of the nose to the drill out diameter of the shoe.

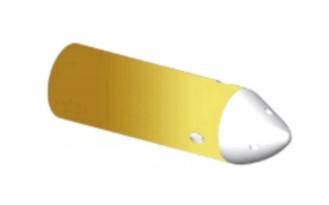

3- Bullet Nose with multiple down jets.

4-single and double valve shoes are available.

5- Eccentric nose with multiple down jets.

6-Helical or straight reaming pads with or without carbide coating.

7-Orifice fill float valves available

8-Auto fill values available

9-ball deflectors available

Reamer Float Shoe And Float Collar Bullet Nose Casing Float Equipment

Reamer Float Shoe And Float Collar Bullet Nose Casing Float Equipment

Guide shoe, Float shoe& Float collar Dimensions Casing weight range
Size(casing O.D.) Type O.D. Drillout I.D. Float&Guide shoes Float collars
in mm in mm in mm lb/ft kg/m lb/ft kg/m
4-1/2. 114.3 Std 5 127 4 101.6 9.5-13.5 14.15-20.11 9.5-13.5 14.15-20.11
P.G. 5 127 3.895 98.93 11.6-15.1 17.28-22.49 11.6-15.1 14.15-20.11
5 127 Std 5.56 141.22 4.408 111.96 13-18 19.36-26.81 13-18 19.36-26.81
P.G. 5.56 141.22 4.389 111.48 13-18 19.36-26.81 13-18 19.36-26.81
5-1/2. 139.7 Std 6.05 153.67 4.907 124.64 14-23 20.85-34.26 14-23 20.85-34.26
P.G. 6.05 153.67 4.787 121.59 17-23 25.32-34.26 17-23 25.32-34.26
6-5/8. 168.28 Std 7.39 187.1 5.944 150.98 20-32 29.79-47.66 20-32 29.79-47.66
P.G. 7.39 187.1 5.944 150.98 20-32 27.79-47.66 20-32 27.79-47.66
7 177.8 Std 7.66 194.56 6.351 161.32 20-35 29.79-52.13 20-32 29.79-47.66
P.G. 7.66 194.56 6.27 159.26 23-38 34.26-56.6 23-38 34.26-56.6
7-5/8. 193.7 Std 8.5 215.9 6.864 174.35 26.4-47.1 39.32-70.16 26.4-39 39.32-58.09
P.G. 8.5 215.9 6.864 174.35 26.4-47.1 39.32-70.16 26.4-39 39.32-58.09
8-5/8. 219.1 Std 9.63 244.6 7.992 203 24-49 35.75-72.99 24-49 35.75-72.99
P.G. 9.63 244.6 7.845 199.26 32-49 47.66-72.99 32-49 47.66-72.99
9-5/8. 244.5 Std 10.63 270 8.865 225.17 32.3-53.5 48.11-79.69 32.3-53.5 48.11-79.69
P.G. 10.63 270 8.699 220.96 40-71.8 59.58-106.85 40-58.4 59.58-86.99
10-3/4. 273.1 Std 11.75 298.45 10.056 255.42 32.75-65.7 48.78-97.86 32.75-55.5 48.78-82.67
P.G. 11.75 298.45 9.77 248.16 51-71.1 75.96-105.9 51-71 75.96-105.9
11-3/4. 298.5 Std 12.75 323.85 11.02 279.91 42-71 62.56-105.75 42-60 62.56-89.37
P.G. 12.75 323.85 10.77 273.56 54-71 80.43-105.75 54-71.1 80.43-105.81
13-3/8. 339.7 Std 14.38 365.25 12.579 319.51 48-72 71.5-107.24 48-72 71.5-107.24
P.G. 14.38 365.25 12.579 319.51 48-86 71.5-128.1 48-72 71.5-107.24
16 406.4 Std 17 431.8 15.124 384.15 65-109 96.82-162.36 65-97 96.82-144.36
18-5/8. 473.1 Std 20 508 17.755 450.98 87.5-139 130.33-206.85 87.5-106 130.33-157.75
20 508 Std 21 533.4 19.125 485.78 94-133 140.01-198.1 94-106.5 140.01-158.63

NOTES:
1. Std. grade equipment is made of K-55 material and is H2S resistant. Std. shoe equipment is suitable for use with all casing grades.
Std. collar equipment is suitable for use with API grades L-80/N-80 & lesser, including any similar proprietary grade of steel. P.G.
(Premium Grade) shoes and collars are made of high strength steel meeting or exceeding P-110 specifications.
When it is necessary that a shoe or collar meet exact chemical and physical properties of a special grade of steel, such as L-80 or
C-90, then it is necessary to special order.
2. Std. and P.G. equipment is available with API 8-round or buttress connections.
* Size 4-1/2" through 9-5/8" Std. equipment is furnished with LT&C box and ST&C pin.
* Size 4-1/2" through 9-5/8" P.G. equipment is furnished with LT&C box and pin.
* Size 10-3/4" through 20" equipment is furnished with ST&C box and pin.
3. These dimensions and weight ranges apply to Std. and P.G. 8-round and buttress float equipment only. Other equipment may vary
from the above specifications. Verify dimensions and weight ranges on labels furnished with equipment.
