Energy-Saving Compact Rotary Spin Flash Dryer with 10–230kW Power Range for Heat-Sensitive Raw Materials
Energy-Saving Compact Rotary Spin Flash Dryer with 10–230kW Power Range for Heat-Sensitive Raw Materials
Specifications
Model Number :
XSG-3 Spin Flash Dryer
MOQ :
1 set
Packaging Details :
Wooden Case
Payment Terms :
L/C,T/T,D/P,western union…
Evaporated moisture :
12-1500 kg/h
Area covered :
15-150 m2
Maximum height :
4-10.1 m
Certification :
iso9000，CE
Price :
16300-38000$
Installed capacity :
10-230 kw
Delivery Time :
Shipment arranged within 3 working days after payment.
Blowing rate :
350-56500 M3/h
Place of Origin :
China
Brand Name :
Pengduo
Inner diameter :
200-2000 mm
Description

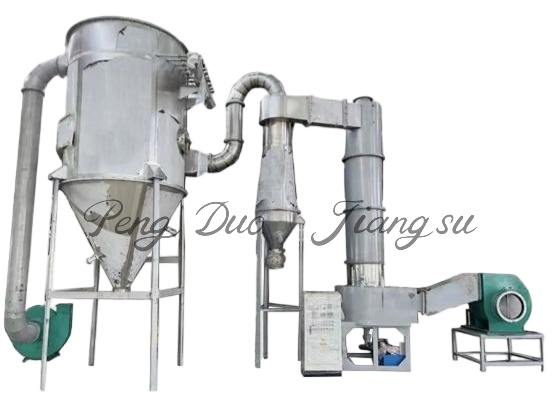

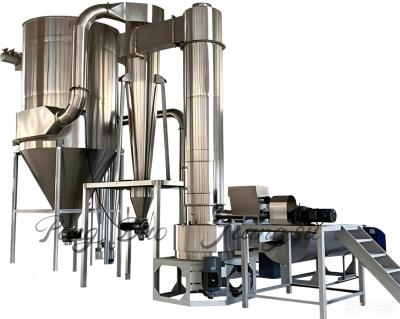

XSG Flash Dryer
Energy-Saving Compact Rotary Spin Flash Dryer with 10–230kW Power Range for Heat-Sensitive Raw Materials
Product Overview

Hot air tangentially enters the dryer’s bottom chamber to generate a strong swirling airflow powered by the built-in agitator. Paste feedstock is conveyed into the unit via a screw feeder; high-speed stirring blades disintegrate the material through intense impact, friction and shearing action. Agglomerated lumps get fragmented immediately to achieve full contact with hot air for rapid dehydration. Dried fine particles rise upward along the hot air flow. A built-in classifying ring intercepts oversized granules, while eligible fine powder passes through the ring’s central outlet and is recovered by cyclone separators and bag dust collectors. Particles insufficiently dried are thrown toward the cylinder wall by centrifugal force and re-crushed for secondary drying.

Energy-Saving Compact Rotary Spin Flash Dryer with 10–230kW Power Range for Heat-Sensitive Raw Materials

Product Features
  • All-in-one integration of vortex circulation, fluid bed dispersion, pulverization and particle sorting
  • Mini space occupation paired with powerful continuous large-volume processing capability
  • High thermal efficiency and reduced energy loss
  • 5–60 second short residence time ideal for heat-sensitive substances
  • Sealed negative-pressure operation with closed circulation, high productivity and no environmental pollution
Applications
  • Organic Compounds: Atrazine (pesticide), Lead laurate, Benzoic acid, Captan fungi-cide, Sodium oxalate, Cellulose acetate
  • Dyes & Pigments: Anthraquinone, Iron oxide black, Indigo, Titanium hydroxide, Zinc sulfide, Azo dye intermediates
  • Inorganics: Borax, Calcium carbonate, Copper sulfate, Barium carbonate, Antimony trioxide, Synthetic cryolite
  • Food Ingredients: Soy protein, Gelatinized starch, Brewer's grains, Wheat sugars, Corn starch
Technical Parameters
Model XSG-2 XSG-4 XSG-6 XSG-8 XSG-10 XSG-12 XSG-16 XSG-20
Inner diameter of main engine mm 200 400 600 800 1000 1200 1600 2000
Blowing rate M³/h 350-500 1150-2000 2450-4500 4450-7550 7000-12500 10000-20000 18000-36000 28200-56500
Evaporated moisture kg/h 12-17 40-70 80-150 150-250 230-4250 300-600 600-1000 1000-1500
Maximum installed capacity kw 10 20 40 65 85 105 150 230
Maximum height m 4 4.8 5.8 6.5 7.1 7.8 8.8 10.1
Area covered m² 15 20 28 35 40 52 80 150
