3.81mm Female Plug-In Terminal Blocks PCB Terminal Connector Green Connector
3.81mm Female Plug-In Terminal Blocks PCB Terminal Connector Green Connector
Specifications
Brand Name :
Jrkconn
Model Number :
JRK15EDGKB-3.5/3.81
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
Contact Us
Price :
Contact us
Payment Terms :
T/T,MoneyGram,D/P,D/A,L/C
Supply Ability :
1000000 per week
Delivery Time :
7-14 working days
Packaging Details :
PE Bag Packaging
Pitch :
3.5/3.81mm
Rated current :
8A
Screw :
M2.0 Steel Zinc Plated
Contact Material :
Brass
Wire Guage :
28-16AWG
Number of Poles :
2P~24P
Description
3.5mm Plug In Terminal Block Connector Receptacle Header Terminal Blocks
High-density plug-in terminal block connectors are designed for reliable electrical connections in demanding industrial applications.
Application Fields of 3.5mm Plug-In Terminal Block Connector
  • Programmable Logic Controller (PLC) Systems: For high-density Input/Output (I/O) point connections
  • Factory Automation & Robotics: Where end-effectors, tool changers, or sensor modules require frequent disconnection
  • Motor Control Centers (MCCs) & Power Distribution Panels: For connecting contactors, drives, and circuit breakers
  • Transportation: Railway and mobile equipment requiring reliable, vibration-proof connections
Our Advantages
  • Expert Engineering: Over 13 years of manufacturing experience dedicated to perfecting terminal block technology
  • Quality Assurance: 100% inspection commitment ensures zero-defect deliveries and minimized project risks
  • Streamlined Operations: One-stop solution consolidates your needs, saving time and reducing overall costs
  • Technical Support: Expert engineering assistance with custom drawings and tailored solutions
Product Specifications
Model Number JRK15EDGKB-3.5/3.81 Series
Type Pluggable
Pitch 3.5/3.81mm
Poles 2~24P
Screw Material M2.0 Steel, Zinc Plating
Contact Material Phosphor Bronze, Ni Plated
Operating Temperature -30℃ ~ +120℃
Wire Cage Brass, Ni Plated
Housing Material PA66, UL94V-0
Voltage Rating 300V
Withstanding Voltage AC 1500V / 1Min
Current Rating 8A
Torque 0.2Nm (1.7 Lbin)
Wire Gauge 28-16AWG
Max Soldering +250℃ for 5 Sec
Strip Length 6~7mm
Color Green
Application Aerospace, Rail Transportation, Shipbuilding, Machinery, Metallurgical Chemical, Power Communication, Electrical Control, etc.
Note: The actual product color may vary slightly from the images shown due to variations in monitor settings. All measurements are taken manually and may have slight deviations.
Packing & Delivery
Selling Units Single item
Package Tray/bag + carton box packing
Port Shenzhen
Quantity (pcs) 1 - 100K
Samples 3 ~ 7
Estimated Delivery Time 15 business days

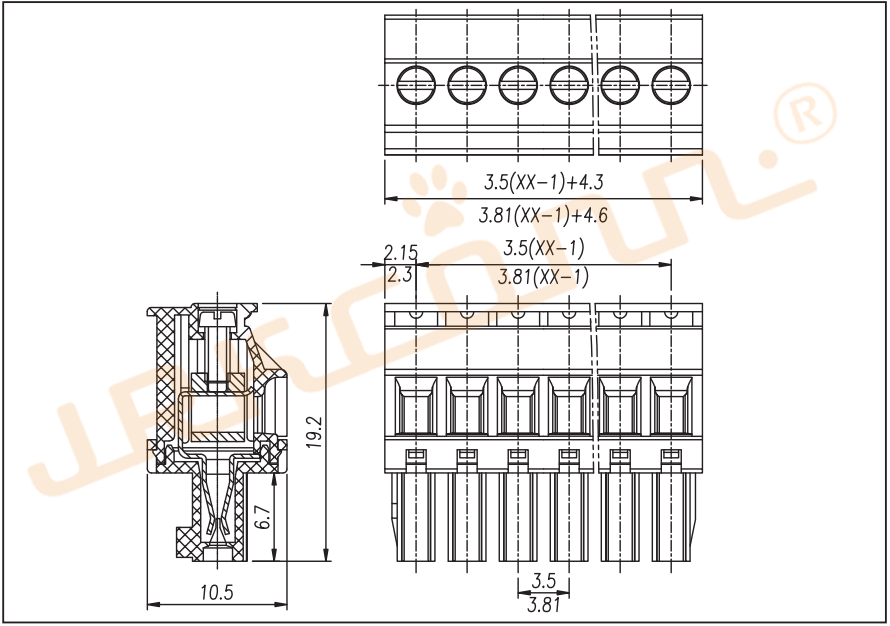

Technical Drawing of JRK15EDGKB-3.5/3.81 Series Terminal Blocks:
3.81mm Female Plug-In Terminal Blocks PCB Terminal Connector Green Connector
Custom Manufacturing Process
3.81mm Female Plug-In Terminal Blocks PCB Terminal Connector Green Connector
Frequently Asked Questions
Q1. Can I have a sample order before placing a purchase order?
A: Samples are available for testing; customers pay only the express courier cost.
Q2. What is the sample lead time?
A: Standard samples take 3-7 working days; customized samples take 7-15 working days.
Q3. Do you have any MOQ Limit?
A: Low MOQ available; 1 piece for sample checking.
Q4. Can I make personalized/customized products?
A: Yes, we accept custom orders based on your drawings or samples.
Q5. How do you ship the goods, and what is the shipping time?
A: We ship via DHL, UPS, FedEx, TNT, or your freight forwarder, typically arriving in 3-10 days.
Q6. Are OEM and ODM available?
A: Yes, OEM and ODM are available.
