3.81mm Pitch 8 Poles PCB Screw Terminal Block Green Wire Terminals
3.81mm Pitch 8 Poles PCB Screw Terminal Block Green Wire Terminals
Specifications
Brand Name :
Jrkconn
Model Number :
JRK15EDGKRP
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
Contact Us
Price :
Contact us
Payment Terms :
T/T,MoneyGram,D/P,D/A,L/C
Supply Ability :
1000000 per week
Delivery Time :
7-14 working days
Packaging Details :
PE Bag Packaging
Pitch :
3.81mm
Poles :
2-24P available
Color :
Green, Terminal Block's color can be customized
Screw :
steel,M2.0 Steel Zinc Plated
Wire gauge :
28-16 AWG
Torque :
0.2Nm(1.7Lbin)
Description
3.81mm PCB Screw Terminal Block 8 Poles Female Green Wire Terminals
High-quality PCB pluggable terminal blocks designed for 28-16AWG wire gauge with superior connectivity and reliability for industrial applications.


Key Advantages Of Plug-in Terminal Blocks:
1. Direct insertion spring connection design enables fast and efficient wiring.
2. Dual-side locking mechanism provides easier operation and improved space efficiency.
3. Automatic plug-and-lock function prevents accidental disconnection during operation.
4. Integrated stainless steel auxiliary clamps maintain long-term connection stability under temperature variation.
Why Choose JRKCONN?
  • Over 13 years of specialized experience in terminal block production with deep industry knowledge
  • Strict 100% inspection policy for all products before shipment
  • Comprehensive service from sourcing and design support to final delivery
  • Professional technical support and custom technical drawing assistance
Product Specifications
MATERIAL:
Model Number JRK15EDGKRP-3.81
Type Pluggable Terminal Block Connector
Pitch 3.81mm
Poles 2P-22P
Screws Material M2.0 Steel, Zinc Plating
Contact Material Phosphor Bronze, Ni Plating
Wire Cage/ Wire Guard Brass, Tin plating
Housing Material PA66, UL94V-0
ELECTRICAL:
Rated Voltage 300V
Withstanding Voltage AC 1600V / 1Min
Rated Current 8A
Wire Range 28-16 AWG
MECHANICAL:
Temperature Range -40℃ ~ +105℃
Strip Length 6-7 mm
Max Soldering +250℃ for 5 Seconds
Torque 0.2Nm(1.7Lbin)
Color Green
Application Aerospace, Rail Transportation, Shipbuilding, Machinery, Metallurgical Chemical, Power Communication, Electrical Control, etc
Note: The actual product color may vary slightly from images due to monitor settings. All measurements are taken manually and may have slight deviations.

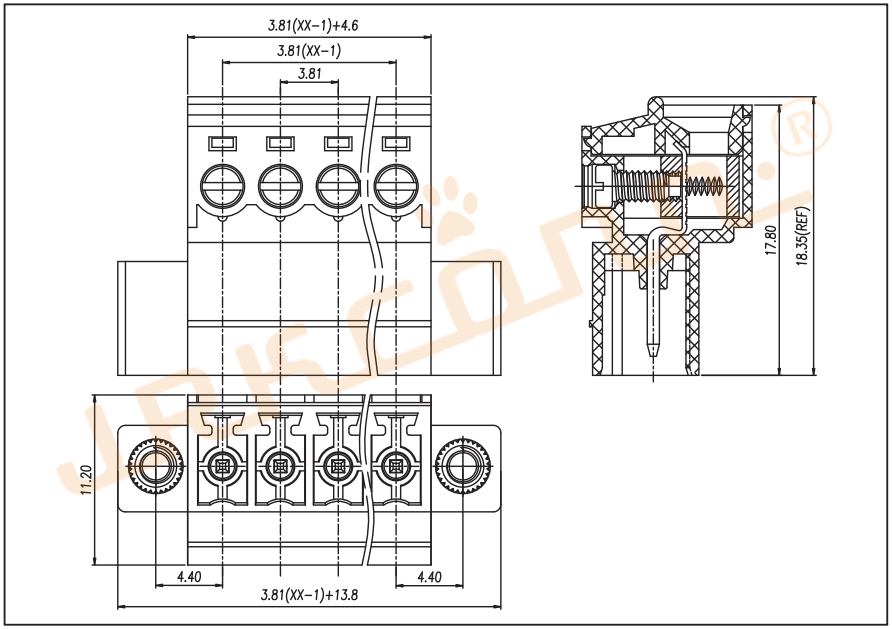

Technical Drawing
3.81mm Pitch 8 Poles PCB Screw Terminal Block Green Wire Terminals
Packaging & Delivery
Selling Units Single item
Package PE bag + carton box packing
Port Shenzhen
Quantity (PCS) Estimated delivery time (business day)
Samples 3-7
1-50K 7-14
51K-100K 15-20
Custom Manufacturing Process
3.81mm Pitch 8 Poles PCB Screw Terminal Block Green Wire Terminals
Frequently Asked Questions
Q1. Can I have a sample order before placing a purchase order?
A: Samples are available for testing; customers pay only the express courier cost.
Q2. What is the sample lead time?
A: Standard samples take 3-7 working days; customized samples take 7-15 working days.
Q3. Do you have any MOQ Limit?
A: Low MOQ available; 1 piece for sample checking.
Q4. Can I make personalized/customized products?
A: Yes, we accept custom orders based on your drawings or samples.
Q5. How do you ship the goods, and how long does it take?
A: We ship via DHL, UPS, FedEx, TNT, or your freight forwarder, typically arriving in 3-7 days.
