15A Rated Current 7.62mm Pitch PA66 Housing Barrier Terminal Block Power Terminal Block Connector
15A Rated Current 7.62mm Pitch PA66 Housing Barrier Terminal Block Power Terminal Block Connector
Specifications
Brand Name :
Jrkconn
Model Number :
JRK25CM-7.62
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
Contact Us
Price :
Contact us
Payment Terms :
T/T,MoneyGram,D/P,D/A,L/C
Supply Ability :
1000000 per week
Delivery Time :
7-14 working days
Packaging Details :
PE Bag Packaging
Rated Current :
15A
Pitch :
7.62mm
Poles :
2P-24P
Housing :
PA66
Screw :
M3 Steel Zinc Plated
Conductor Cross Section :
2.5 mm²
Description
Power Terminal Block Connector Barrier Terminal Block Connector 6 Pin

What are the Barrier Terminal Blocks:

A barrier terminal block is a type of electrical connector used to join multiple wires to a power source or circuit securely. It features raised insulating barriers between each terminal, which help prevent accidental contact, short circuits, and electrical leakage.

Barrier terminal blocks are commonly mounted on PCBs, panels, or chassis and are widely used in applications where high current, higher voltage, and enhanced safety are required.


Why Choose Us:
  • 13+ Years of Manufacturing Expertise
    With over 13 years of specialized experience in terminal block production, we combine deep industry knowledge with a refined, reliable manufacturing process.
  • 100% Quality Inspection
    Every product is strictly inspected before shipment. Our 100% inspection policy ensures consistent quality, safety, and dependable performance.
  • One-Stop Supply Chain Solution
    From product sourcing and design support to production and final delivery, we provide a complete one-stop service that saves time, reduces costs, and simplifies your supply chain.
  • Professional Technical Support
    Our experienced engineering team offers responsive technical support and customized technical drawings, delivering tailored solutions for your specific application requirements.

Product Description of Barrier Terminal Block
Model Number JRK25CM-7.62 Pin Header Brass, Tin plating
Type Barrier Terminal Blocks Housing Material Polyamide (PA66), Nylon 6/6
Pitch 7.62mm, 8.25mm, 9.5mm, 10.0mm, 11.0mm Rated Voltage 300V
Poles 2P,-24P Withstanding Voltage AC 2000V / 1Min
Screws Material M3, Steel, Zinc Plating Rated Current 15A
Wire Range 22-14 AWG Max. Torque Value 8kg.cm
Temp Range -40℃ ~ +105℃ Mounting Type Through Hole
Color Black Application Industrial Control Systems, HVAC Systems, Power Supply, Transportation, Consumer Electronics, Telecommunications
Note: The actual product color may vary slightly from images due to monitor settings. All measurements are taken manually and may have slight deviations.

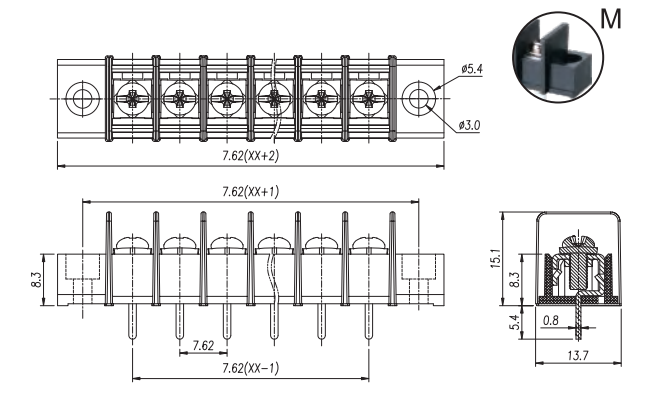

Technical Data

15A Rated Current 7.62mm Pitch PA66 Housing Barrier Terminal Block Power Terminal Block Connector

Packing & Delivery
Selling Units Package Port
Single item PE bag + carton box packing Shenzhen
Quantity (pcs) Samples Estimated delivery time (business day)
1 - 100K 3 ~ 7 15
Custom Manufacturing Process
15A Rated Current 7.62mm Pitch PA66 Housing Barrier Terminal Block Power Terminal Block Connector
Q&A

Q1. Can I have a sample order before placing a purchase order?

A: Samples are available for testing; customers pay only the express courier cost.

Q2. What is the sample lead time?

A: Standard samples take 3-7 working days; customized samples take 7-15 working days.

Q3. Do you have any MOQ Limit?

A: Low MOQ available; 1 piece for sample checking.

Q4. Can I make personalized/customized products?

A: Yes, we accept custom orders based on your drawings or samples.

Q5. How do you ship the goods, and what is the shipping time?

A: We ship via DHL, UPS, FedEx, TNT, or your freight forwarder, typically arriving in 3-7 days.
