JL-75II Small Scale Softgel Encapsulation Machine for R&D Testing Capsules
JL-75II Small Scale Softgel Encapsulation Machine for R&D Testing Capsules
JL-75II Small Scale Softgel Encapsulation Machine for R&D Testing Capsules
JL-75II Small Scale Softgel Encapsulation Machine for R&D Testing Capsules
Specifications
Certification :
CE
Output Capacity :
Approx. 6,000 capsules/hour
Model Number :
JL-75II
Compressed Air :
≥ 0.4 MPa
Applications :
Lab. , R&D department
Machine Type :
Laboratory Softgel Encapsulation Machine
MOQ :
1SET
Packaging Details :
wooden box with vacuum packing inside
Brand Name :
JANGLI
Delivery Time :
30 days-60 days
Power Supply :
220V / 50Hz, Single Phase
Price :
10000-100000USD
Place of Origin :
CHINA
Supply Ability :
100sets per year
Payment Terms :
L/C,D/A,D/P,Western Union,T/T
Model :
JL-75II
Description

JL-75II Small Scale Softgel Encapsulation Machine for R&D Testing Capsules


Description of JL-75II Small Scale Softgel Encapsulation Machine

We specialize in softgel equipment for more than 25 years. Our small lab machine is perfectly fit for your pharmaceutical R&D department, ideal for formula testing and small batch sample production. The small machine fully meets GMP standard, with compact structure, specially for university labs, pharma R&D centers and small batch sample production.

Built on the same structural principles as industrial-scale equipment, it ensures reliable, consistent output. Features include a standalone cantilever touchscreen, high precision, and strong seam quality.

Technical Parameters of JL-75II Small Scale Softgel Encapsulation Machine
Die Roller Speed 0-5 Rpm
Die Roller Size Dia. 64 x W75 mm
Production Capacity 8# OV 8,000 pcs/hour (500mg)
Power 2Kw
Filling Volume 0-1.2 ml
Precision of Filling +/-1.5%
Weight 450Kgs
Dimension L900xW700xH1600 mm

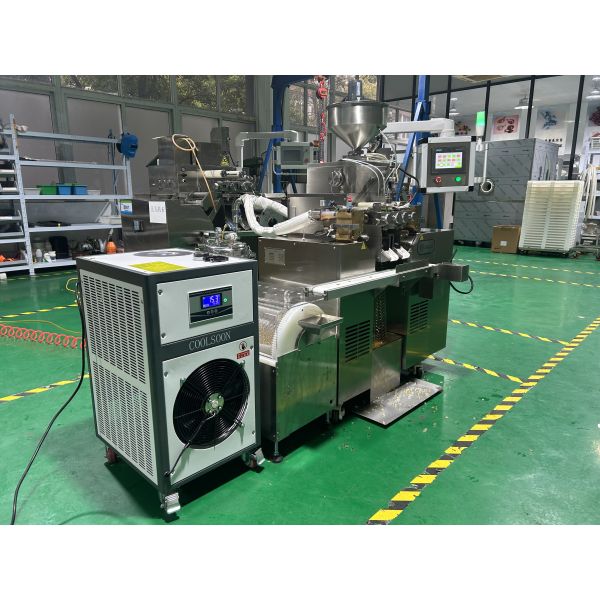

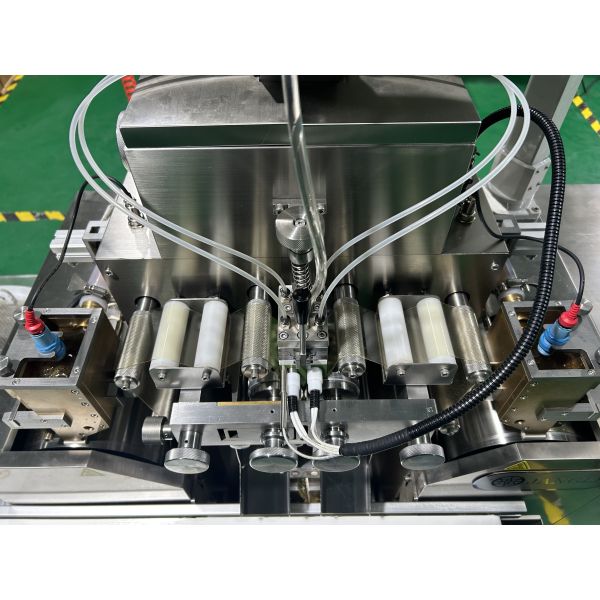

Images of JL-75II Small Scale Softgel Encapsulation Machine

JL-75II Small Scale Softgel Encapsulation Machine for R&D Testing Capsules

JL-75II Small Scale Softgel Encapsulation Machine for R&D Testing Capsules

JL-75II Small Scale Softgel Encapsulation Machine for R&D Testing Capsules

JL-75II Small Scale Softgel Encapsulation Machine for R&D Testing Capsules


Packing and Shipping of JL-75II Small Scale Softgel Encapsulation Machine

JL-75II Small Scale Softgel Encapsulation Machine for R&D Testing Capsules

FAQ

Q1: Can the machine run 24/7?

A: Yes, it’s built for long-term stable operation without interruptions.

Q2: Is switching capsule formats difficult?

A: Not at all. One-click parameter recall and quick mold changes make it easy.

Q3: Is it audit- and export-ready?

A: Fully compliant with GMP, FDA, and 21 CFR Part 11, ready for international markets.

Q4: Are maintenance costs high?

A: No, the mature design and low power consumption keep long-term costs manageable.
