Compact Size Softgel Encapsulation Machine for R&D and Small-Batch Manufacturing
Compact Size Softgel Encapsulation Machine for R&D and Small-Batch Manufacturing
Compact Size Softgel Encapsulation Machine for R&D and Small-Batch Manufacturing
Compact Size Softgel Encapsulation Machine for R&D and Small-Batch Manufacturing
Specifications
Material of Machine Frame :
SUS 304
Place of Origin :
China
Machine Weight :
450 Kgs
MOQ :
1 SET
Die Roller Size :
Φ64 x W75 mm
Delivery Time :
30 days
Brand Name :
JANGLI
Packaging Details :
vacuum inner packing, plywood outer packing
Die Roller Speed :
0-5 Rpm
Price :
USD 30,000 - 50,000
Certification :
CE
Power Consumption :
2Kw
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Model Number :
JL-75
Plunger Qty :
2 plungers
Supply Ability :
200 sets per year
Description
Compact Size Softgel Encapsulation Machine for R&D and Small-Batch Manufacturing

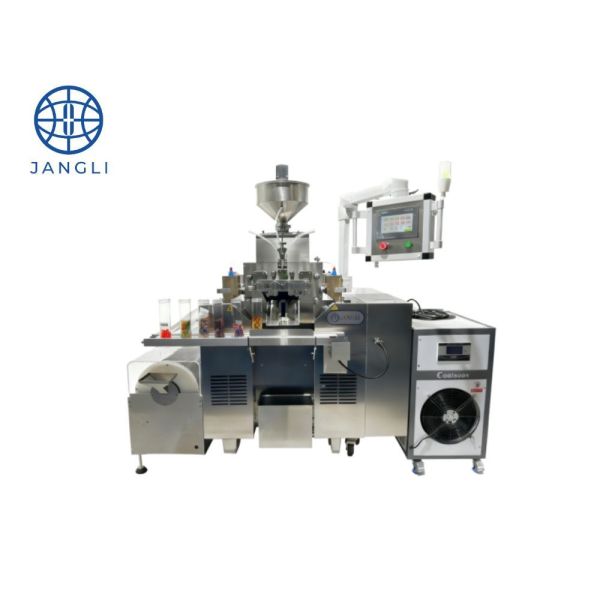

Description of JL-75 Compact Softgel Encapsulation Machine

The JL-75 softgel machine is a miniaturized production line for lab use, R&D, and small-batch manufacturing. It offers high cost-effectiveness without compromising performance.

Built on the same structural principles as industrial-scale equipment, it ensures reliable, consistent output. Features include a standalone cantilever touchscreen, high precision, and strong seam quality.

Two mold sizes are available. The 115×125 mm mold delivers up to 20,000 softgels per hour, making the system fully suitable for small-scale production.

Technical Parameters of JL-75 Softgel Encapsulation Machine
Die Roller Speed 0-5 Rpm
Die Roller Size Dia. 64 x W75 mm
Production Capacity 8# OV 8,000 pcs/hour (500mg)
Power 2Kw
Filling Volume 0-1.2 ml
Precision of Filling +/-1.5%
Weight 450Kgs
Dimension L900xW700xH1600 mm

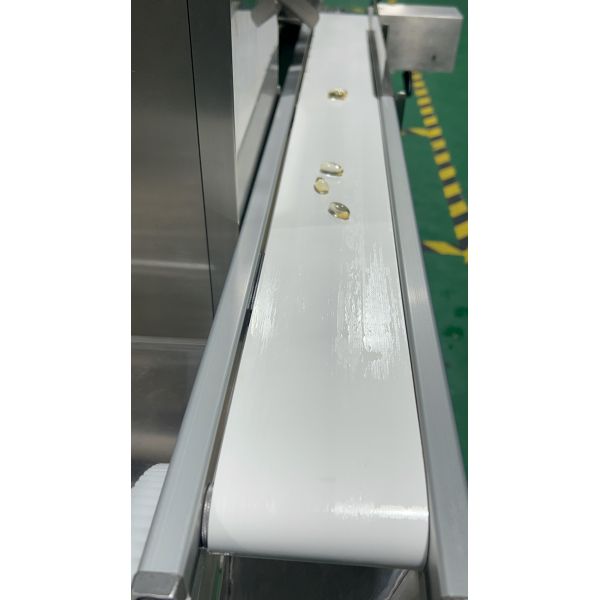

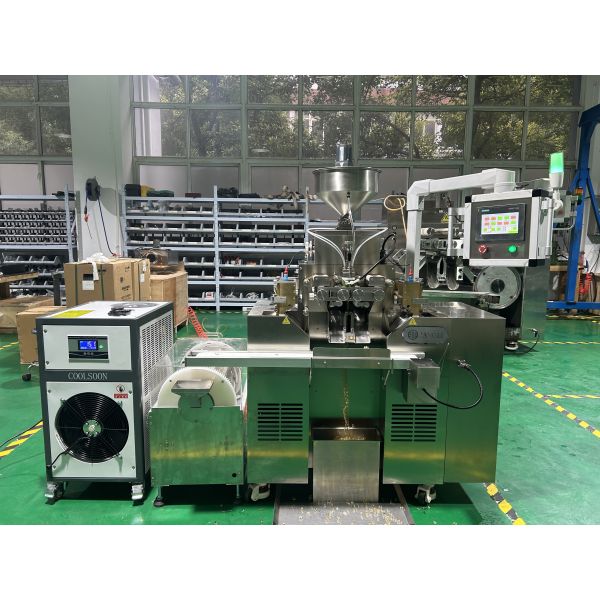

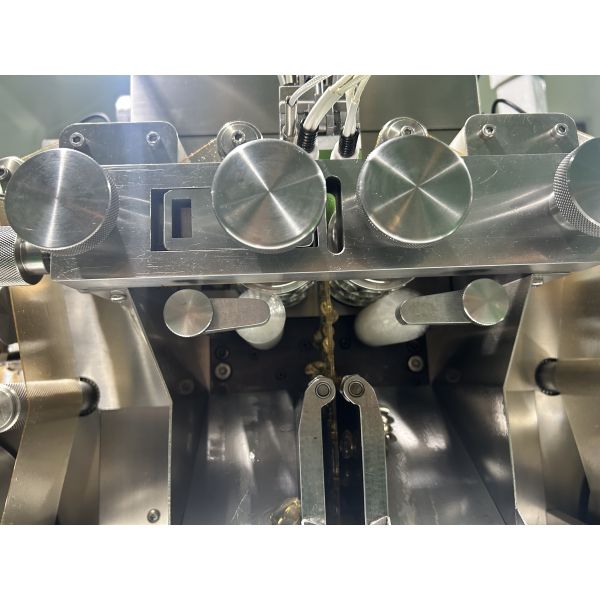

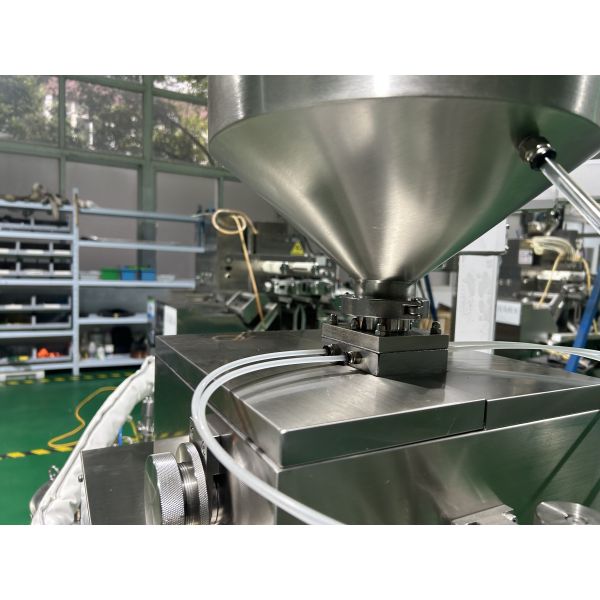

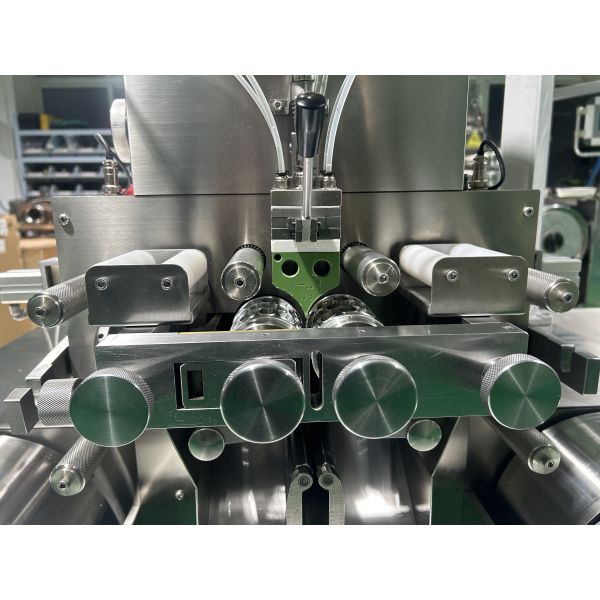

Images of JL-75 Softgel Encapsulation Machine

Compact Size Softgel Encapsulation Machine for R&D and Small-Batch Manufacturing

Compact Size Softgel Encapsulation Machine for R&D and Small-Batch Manufacturing

Compact Size Softgel Encapsulation Machine for R&D and Small-Batch Manufacturing

Compact Size Softgel Encapsulation Machine for R&D and Small-Batch Manufacturing

Packing and Shipping of JL-75 Softgel Encapsulation Machine

Compact Size Softgel Encapsulation Machine for R&D and Small-Batch Manufacturing

FAQ

Q1: Can the machine run 24/7?

A: Yes, it’s built for long-term stable operation without interruptions.

Q2: Is switching capsule formats difficult?

A: Not at all. One-click parameter recall and quick mold changes make it easy.

Q3: Is it audit- and export-ready?

A: Fully compliant with GMP, FDA, and 21 CFR Part 11, ready for international markets.

Q4: Are maintenance costs high?

A: No, the mature design and low power consumption keep long-term costs manageable.
