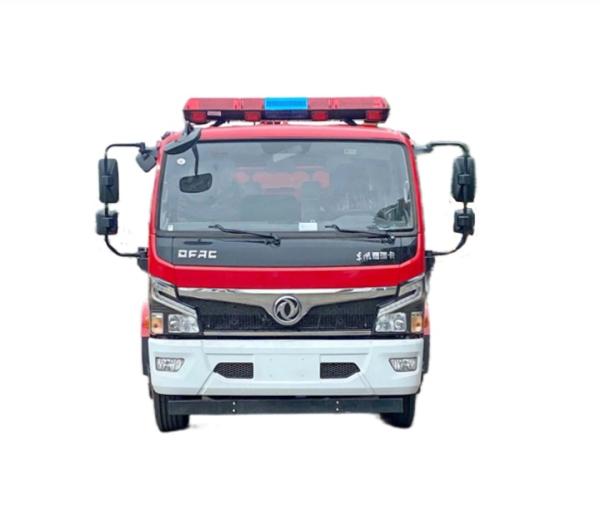

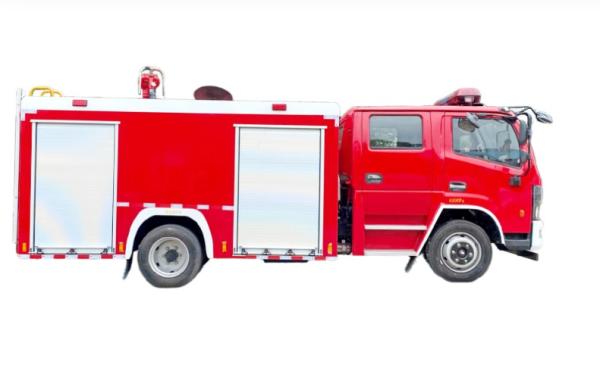

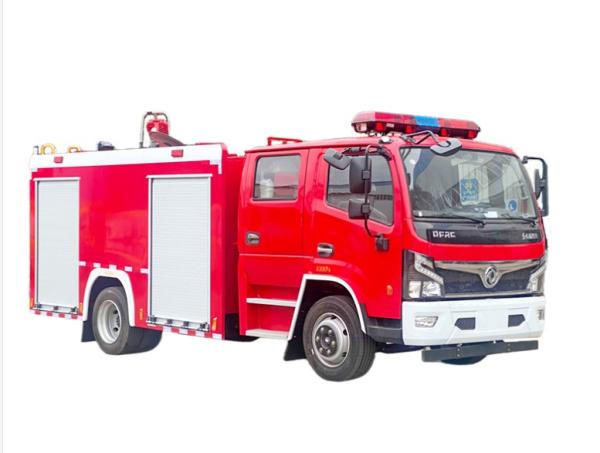

Dongfeng Yunnei 170HP Water Tank Fire Truck Double row Cab Welded Frame National Ⅵ
Dongfeng Yunnei 170HP Water Tank Fire Truck Double row Cab Welded Frame National Ⅵ
Dongfeng Yunnei 170HP Water Tank Fire Truck Double row Cab Welded Frame National Ⅵ
Dongfeng Yunnei 170HP Water Tank Fire Truck Double row Cab Welded Frame National Ⅵ
Dongfeng Yunnei 170HP Water Tank Fire Truck Double row Cab Welded Frame National Ⅵ
Dongfeng Yunnei 170HP Water Tank Fire Truck Double row Cab Welded Frame National Ⅵ
Specifications
Brand Name :
Dongfeng
Model Number :
Water Tank Fire Truck
MOQ :
1
Price :
$21000/Unit
Payment Terms :
L/C,D/A,T/T,D/P
Delivery Time :
5-8 work days
Safety Features :
AdvanceTrac with Roll Stability Control, Lane-Keeping System, Pre-Collision Assist with Automatic Emergency Braking
Size :
Full-size
Horsepower :
450 hp
Transmission :
10-speed automatic
Torque :
510 lb-ft
Model :
F-150
Engine :
3.5L V6 EcoBoost
Fuel Type :
Gasoline
Type :
Pickup Truck
Drive Type :
4x4
Special Features :
Emergency lights and sirens
Seating Capacity :
5
Fuel Efficiency :
17 mpg city / 23 mpg highway
Description

I. Chassis Parameters

Item Specification
Chassis Model Dongfeng Motor Co., Ltd. / EQ1125SJ8CDC
Engine Yunnei 170HP
Engine Model Yunnei D30TCIF1
Engine Power 125kW
Dimensions (L×W×H, mm) 6860×2210×2880
Emission Standard GB3847-2005, GB17691-2018 National VI
Drive Type Rear-wheel drive (RR)
Wheelbase 3800mm

II. Cab Specifications

Item Configuration
Structure Double-row seat cab
Seating Capacity 3+3 persons
Equipment Original equipment plus PTO control switch, 100W siren, rotating beacon switch, radio power connector, and external charging device

III. Tank System

Item Specification
Water Capacity 4000kg
Material High-quality carbon steel for water tank
Structure Welded frame with anti-slosh baffle inside
Equipment 1×quick-locking manhole, 1×liquid level indicator, 1×stainless steel ball valve drain, 2×water inlets (left/right)

IV. Fire Pump & Pipeline System

Item Specification
Fire Pump CB10/30 normal-pressure fire pump
Flow Rate 30L/s (normal pressure)
Pressure 1.0MPa (normal pressure)
Installation Type Rear-mounted
Suction Pipeline Φ100mm inlet for water intake from natural sources or tank
Discharge Pipeline 2×side outlets; 1×≥89mm water cannon pipeline from tank top
Drain Pipeline Drain pipes with ball valves to protect pump and valves
Cooling Pipeline Forced water-cooled pipeline with stainless steel ball valves for PTO

V. Fire Cannon

Item Specification
Model PS30W
Flow Rate 30L/s
Firing Range ≥50m (water)
Working Pressure 1.0MPa

VI. Power Take-off (PTO)

Item Specification
Type Full-power sandwich PTO
Cooling Method Forced water cooling
Lubrication Method Splash oil lubrication

VII. Equipment Compartment & Pump Room

Item Configuration
Material Steel frame with aluminum alloy panel bonded structure
Structure Sectional steel partitions for improved space utilization and flexibility
Doors Aluminum roller shutter doors on both sides, lightweight and low-noise
Equipment Arrangement Arranged to avoid operator interference; based on usage frequency, weight, shape, combat 编成,and ergonomics

VIII. Electrical System

Item Configuration
Roof Beacon Long-row emergency light at front of cab
Roof Light 1×24V, 60W work light at rear of roof
Strobe Lights Strobe lights on both sides; side marker lights at bottom
Siren System 100W siren; independent circuit for siren, beacon, and strobes controlled from cab

IX. General Technical Requirements

Item Specification
Performance Complies with GB7956 Fire Truck Performance Requirements and Test Methods
Exterior Appearance Smooth surface in compliance with relevant regulations
Riveting Rivet density in line with enterprise standards
Welding Firm, smooth, and flat welds meeting enterprise standards
Markings All switches, instruments, equipment racks, and vehicle parts have standardized nameplates

The Dongfeng water tank fire engine is a fire-fighting equipment based on the Dongfeng dedicated chassis, with the core function of "water storage + fire extinguishing". It is suitable for water supply and fire fighting in urban fire-fighting, industrial rescue and natural disaster sites. Its typical model, such as EQ1125SJ8CDC, adopts a national VI emission standard engine, which combines power and environmental protection. The double-row cab can accommodate 6 people, meeting the rapid response needs of the fire brigade.
