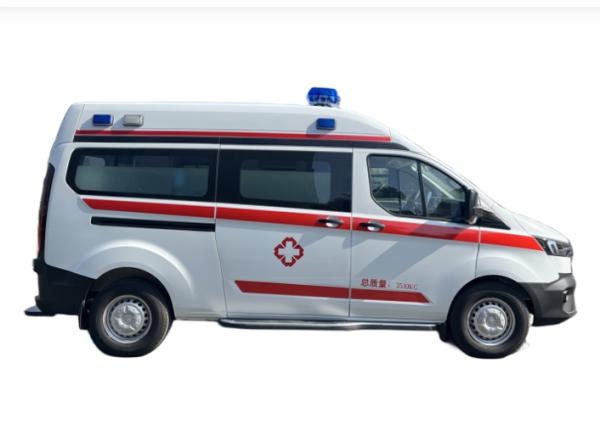

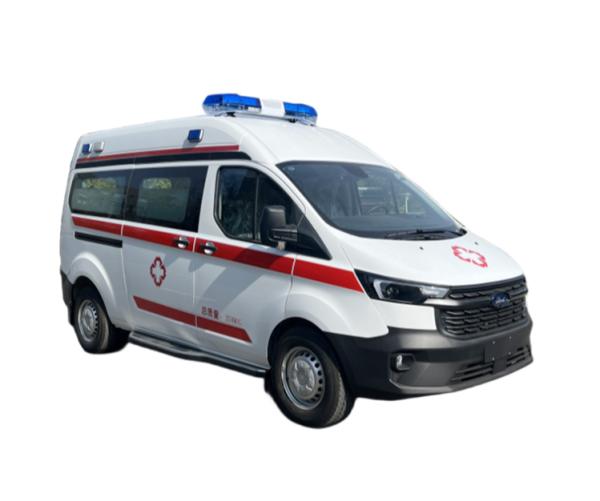

Ford V362 Ambulance National VI Front Engine Front Wheel Drive
Ford V362 Ambulance National VI Front Engine Front Wheel Drive
Ford V362 Ambulance National VI Front Engine Front Wheel Drive
Ford V362 Ambulance National VI Front Engine Front Wheel Drive
Ford V362 Ambulance National VI Front Engine Front Wheel Drive
Ford V362 Ambulance National VI Front Engine Front Wheel Drive
Specifications
Brand Name :
Ford
Model Number :
V362
MOQ :
1
Price :
$8000/Unit
Payment Terms :
L/C,D/A,D/P,T/T
Delivery Time :
5-8 work days
Durability :
Designed to withstand harsh conditions
Accessories :
First aid kits/Fire extinguishers/Rescue tools
Manufacturer :
Varies depending on specific vehicle model
Weight :
Varies depending on specific vehicle model
Speed :
Varies depending on specific vehicle model
Capacity :
Varies depending on specific vehicle model
Maneuverability :
Able to navigate through traffic and tight spaces
Emergency Equipment :
Siren/Lights/Communication Systems
Usage :
Emergency Response
Safety Features :
Airbags/Seatbelts/Reinforced structure
Size :
Varies depending on specific vehicle model
Power Source :
Gasoline/Diesel/Electric
Vehicle Type :
Specialized Vehicle
Special Features :
Customized for specific emergency response needs
Description

I. Vehicle Parameters

Item Specification
Base Chassis Ford New Transit Medium-Axle Medium-Roof Diesel (National VI)
Exterior Color White/Red
Gross Vehicle Mass 3510 kg
Passenger Capacity 7-8 persons (including stretcher capacity)
Wheelbase 3300 mm
Overall Dimensions (mm) 5341, 5520 × 1986, 2060 × 2455, 2580
Medical Compartment Dimensions (mm) 2600 × 1700 × 1720
Approach/Departure Angle (°) 19/21, 19/22
Maximum Speed 160 km/h
Engine Model DURATORQ4D20C6H (Manual), DURATORQ4D20B6H (Automatic)
Engine Displacement 1.998 L
Emission Standard National VI
Rated Power 105 kW
Fuel Tank Capacity 80 L
Drive Type Front-engine, front-wheel drive (FF)
Minimum Ground Clearance 141 mm
Transmission 6MT (Manual)/9AT (Automatic)
Suspension System Front: MacPherson independent suspension; Rear: Leaf spring non-independent
Steering Assist Rack and pinion, hydraulic power steering
Braking System Front and rear disc brakes, hydraulic

II. Medical Warning Exterior

Item Configuration
Body Structure Reinforced steel frame design for safety
Doors Right-side sliding door; rear double swing doors for easy access
Exterior Decoration All-white body with red cross logos on front, sides, and rear; high-visibility color strips
Medical Compartment Glass Frosted film on 2nd and 3rd windows for privacy
Warning Lights Streamlined integrated LED siren light (polymer material); 100W siren; blue strobe lights on sides and rear

III. Medical Compartment Equipment

Item Specification
Stretcher System Automatic loading stretcher (high-strength aluminum, PVC waterproof mattress, adjustable backrest); oval leg tubes with auxiliary wheels for single-person operation
Stretcher Platform Aluminum alloy auxiliary platform for stretcher loading/unloading
Infusion Rack Overhead aluminum rail-type rack with 2 foldable hooks
Oxygen System Two 10L steel oxygen cylinders (15MPa), dual single-gauge pressure reducers, German-style oxygen terminals, ventilator interface, and wall-mounted oxygen inhaler with humidifier

IV. Electrical System

Item Configuration
Lighting 4×12V cabin lights; 2×infusion spotlights
Inverter 1000W sine wave inverter; 2×220V/12V multi-function sockets (AC/DC)
Disinfection Light Intelligent timer-controlled UV disinfection light

V. Air Circulation System

Item Specification
Air Conditioning & Heating Rear-mounted AC and heater with independent temperature control
Ventilation Fan DC12V multi-function fan (intake/exhaust) for efficient air circulation

VI. Cabinets and Interior

Item Configuration
Partition Wall New eco-friendly material partition with glass observation window
Equipment Cabinet Long-strip cabinet with drawers and storage spaces
Oxygen Cylinder Cabinet Cabinet for 2×10L oxygen cylinders; overhead cabinet with sliding doors
Bench Seat Long-strip seat with cushions, backrests, and 2-point seat belts
Interior Materials Lightweight, waterproof, mildew-proof, antibacterial, and easy-to-clean materials
Floor Covering Medical-grade anti-slip, waterproof, mildew-proof floor leather

VII. Auxiliary Equipment

Item Configuration
Side Door Window Flat sliding glass window
Intercom System Hands-free microphone in driver and medical compartments
Fire Extinguisher 1kg dry powder fire extinguisher in medical compartment
Waste Bin Covered foot-pedal waste bin
Safety Handrail Overhead long-strip handrail in medical compartment
Emergency Hammer Emergency hammer for medical compartment

VIII. Optional Configurations

Item Specification
Negative Pressure System Negative pressure device (-30Pa to -10Pa when activated)
Driving Assist System Driving recorder
Scoop Stretcher 1 set (optional for stretcher compartment)
Stair Stretcher 1 set (load capacity: 160kg)
Side Door Step Auxiliary step for side sliding door
Rear Door Step Auxiliary step for rear double doors

The new Ford Transit mid-axle mid-roof ambulance is based on the Ford Transit mid-axle model launched by Jiangling Ford. It can reach a speed of 160 km/h. It uses Bosch ABS + EBD technology, which can actively detect and analyze road conditions and adjust the driving direction reasonably. It adopts domestic leading boron steel plates, with a high-strength chassis cast as a whole and multiple crossbeams to increase strength. The overall vehicle has a low center of gravity and is more stable, effectively ensuring the safety of the driver. The medical cabin is spacious and well-designed. The entire vehicle is modified with domestic leading medical vehicle technology and is suitable for various hospitals and emergency centers, especially for patient transfer and urban emergency rescue.
