Durable Semi Hermetic Condensing Unit optimized for refrigeration equipment requiring steady cooling and compressor operation
Durable Semi Hermetic Condensing Unit optimized for refrigeration equipment requiring steady cooling and compressor operation
Specifications
Model Number :
JLAZ-6HP
MOQ :
1 set
Price :
USD898.45
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
Over 2 million units
Delivery Time :
5 to 8 days
Packaging Details :
Cardboard box 102*138*43
Compressor :
Original
Size :
1050*700*680mm
Horsepower :
5HP
Showroom Location :
None
Electric Controler :
Elitech
Mirror Liquid :
Hongsen
Keywords :
Semi-hermetic compressor
Condenser :
V type air cooled
Configuration :
Stationary
Phase :
Single-phase / Three-phase
Capacity Type :
Medium Duty
Power Source :
AC Power
Temperature Range :
Medium & Low Temperature
Noiselevel :
65-75 dB
Temperature Ranges :
0ºC ~ - 10ºC and - 15 ºC ~ - 18 ºC
Description

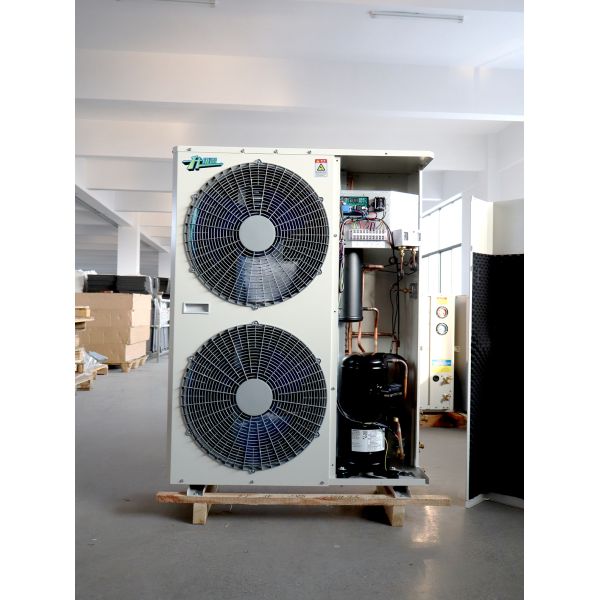

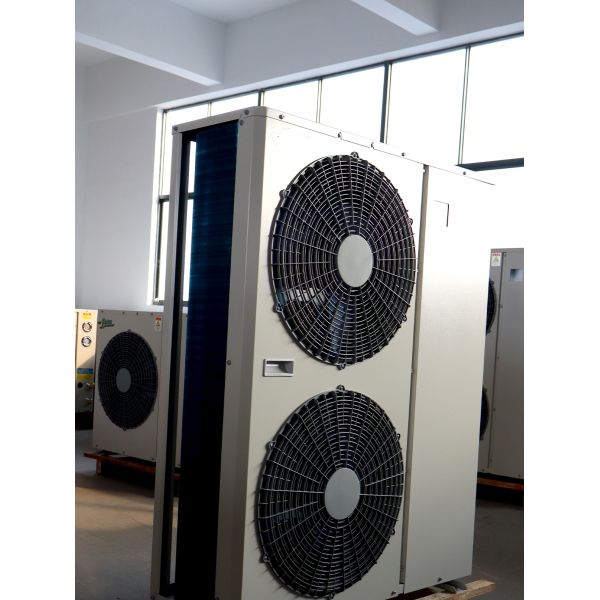

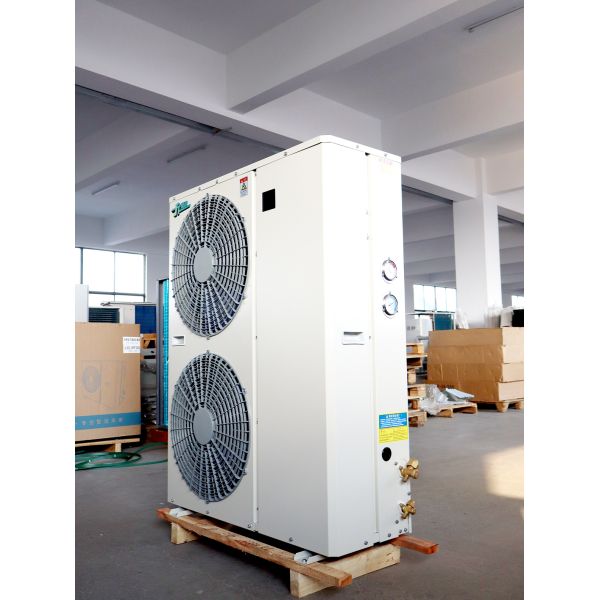

Side-outlet air-cooled condensing unit JLAZ-6HP
  • Wide temperature range and efficient operation

    Optimized for a wide evaporation temperature range from +10℃ to -20℃, it has a cooling capacity of 13.9kW under 0℃ conditions, with stable and reliable performance.

  • High-efficiency side air outlet heat exchange design

    Two high-flow fans (with a total air volume of 7,600 m³/h) are configured to achieve efficient heat dissipation and ensure the stable operation of the unit under various working conditions.

  • Environmentally friendly refrigerant compatible design

    Compatible with R404A/R22 refrigerants and using ester-based lubricating oil, it meets different environmental protection and usage requirements.

  • Compact structure design

    The body size is compact (L960W370H1250mm), the installation base size (D725*E385mm) is tight, and it has strong adaptability to space.

  • Low-energy consumption operation configuration

    The total power of the fan is only 160W, and it forms an efficient matching system with the compressor, effectively reducing operating costs.

  • Standardized interface design

    It is equipped with standard interfaces for ø12 liquid outlet pipe and ø19 suction pipe, making installation and connection convenient and maintenance simple.

Side-outlet air-cooled condensing unit
Unit model JLAZ-6HP
Applicable evaporation temperature (℃) +10C ~-20℃
Refrigerant R404A/R22
Power supply 380V/50Hz
Fan parameters Number of fans (units) 2
Air volume (m³/h) 2*3800
Fan power (w) 2*80
Parameters of the compressor unit Evaporation temperature: 0℃ Cooling capacity (w) 13900
Evaporation temperature: -10℃ Cooling capacity (w) 9750
Evaporation temperature -15℃ Cooling capacity (w) 8100
Lubricating oil Ester oil
Interface Liquid outlet pipe interface ∅12
Suction tube interface ∅19
Overall dimensions long(L)mm 960
wide(B)mm 370
high(H)mm 1250
Installation dimensions long(D)mm 725
wide(E)mm 385
Factory serial number JL202511
