Semi Hermetic Condensing Unit designed to provide refrigeration performance with easy integration and maintenance features
Semi Hermetic Condensing Unit designed to provide refrigeration performance with easy integration and maintenance features
Semi Hermetic Condensing Unit designed to provide refrigeration performance with easy integration and maintenance features
Semi Hermetic Condensing Unit designed to provide refrigeration performance with easy integration and maintenance features
Specifications
Model Number :
JLSZ-8HP
MOQ :
1
Price :
1473.77 USD
Payment Terms :
T/T
Supply Ability :
Over 2 million units
Delivery Time :
5 to 8 working days
Packaging Details :
A wooden box measuring 140*60*161cm
Type :
Compressor,Cooler,Condensing unit,Open type air cooled condensing unit,Plating Metal Shell and Piston Compressor
After-sales service provided :
Engineers available to service machinery overseas,No overseas service provided,Overseas service center available,No after-sales service,Overseas third-party support available
Refrigerant :
R134a,R22 or R404A,R404a,R22/R404a/other,R-22 R-404A R-407 R-408 R448 R-507
Voltage :
400V/3p/50~60Hz,230V/1p/50Hz,380V/3Ph/50Hz,380v,220V/1/50hz60HZ or 380V-440V/3/50hz 60HZ
Color :
Green,blue,Black/Grey white/other custom colors,diamond black,white or black
Warranty :
1 Year,3 months,Unavailable
Compressor :
Bizter,Copeland,MLZ021,Bitzer semi-hermetic for LBP,Semi hermetic
Application :
Cold Storage Room Freezer Room,Refrigeration Parts,Computer Room,Cold Room/Cold Storage
Cooling capacity :
From 1800W to 95600W,69.2KW,2.2~14.46kw,2-8 HP
Power supply :
380V/3Ph/50Hz,220-240v,380V/three Phase/50HZ,380V/50HZ,400v
Temperature :
+15~-55℃ (+60~-70)F,-35~+10'C,5℃ ~-5 ℃
Horse power :
From 2HP to 34HP,1hp
Condenser :
Copper pipe,3/8 thickness Copper Tubes
Compressor type :
Semi-sealed piston,Semi-hermetic Piston Compressors
Climate class :
N,SN,T,ST
Oem service :
Yes
Description
侧出风空气冷却式冷凝器 JLSZ-8HP
  • 宽温度范围和高效运行 优化用于蒸发温度范围+10℃至-20℃,在0℃条件下具有高达17.3kW的制冷量,性能强劲,应用范围广泛.
  • 高效侧空气出口热交换系统 配备2个大风量风扇(2*6500m³/h),确保高效的散热,并保证即使在高温环境中,装置也能稳定运行.
  • 一个强大且可靠的制冷核心 它采用R22制冷剂和矿物油润滑系统,针对中低温工作条件进行了优化,具有稳定的动力和便捷的维护.
  • 紧凑的工业设计 设备尺寸(长1300宽500高1350毫米)紧凑,安装占地面积小,大大节省空间.

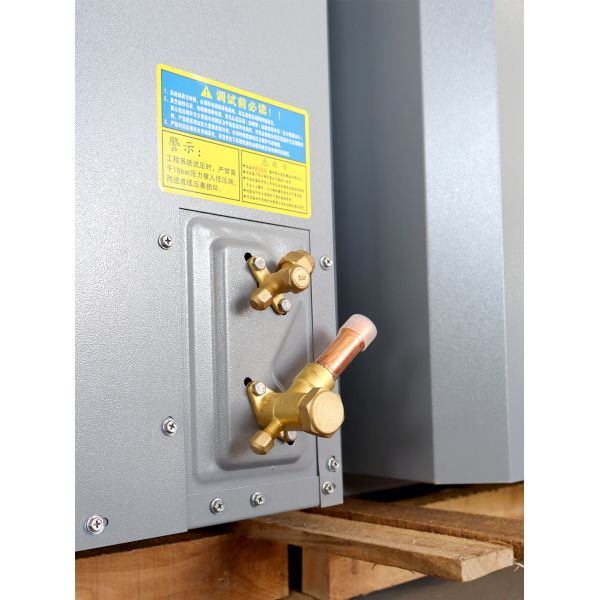

  • 标准化接口和便捷维护 它提供 ø12(液体出口) 和 ø22(蒸汽吸入) 标准接口,标记清晰,连接方便,简化了安装过程.
  • 低运行能耗和高性价比 风扇总功率仅为240W,与压缩机形成高效匹配系统,有效降低日常运行成本.
Product parameters

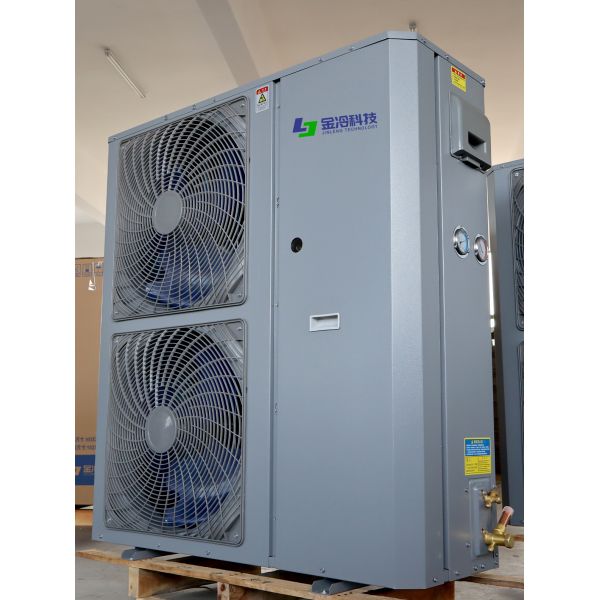

Side-outlet air-cooled condensing unit
Unit model JLSZ-8HP
Applicable evaporation temperature (℃) +10C ~-20℃
Refrigerant R22
Power supply 380V/50Hz
Fan parameters Number of fans (units) 2
Air volume (m³/h) 2*6500
Fan power (w) 2*120
Parameters of the compressor unit Evaporation temperature: 0℃ Cooling capacity (w) 17300
Evaporation temperature: -10℃ Cooling capacity (w) 12500
Evaporation temperature -15℃ Cooling capacity (w) 10400
Lubricating oil 矿物油
Interface Liquid outlet pipe interface ∅12
Suction tube interface ∅22
Overall dimensions Length (L)mm 1300
Width (B)mm 500
Height (H)mm 1350
安装尺寸 Length (D)mm 740
Width (E)mm 460
Factory serial number JL202511
