2.1 Inch Round LCD Display 480x480 Resolution 350cd/M2 Luminance High Clarity
2.1 Inch Round LCD Display 480x480 Resolution 350cd/M2 Luminance High Clarity
2.1 Inch Round LCD Display 480x480 Resolution 350cd/M2 Luminance High Clarity
2.1 Inch Round LCD Display 480x480 Resolution 350cd/M2 Luminance High Clarity
2.1 Inch Round LCD Display 480x480 Resolution 350cd/M2 Luminance High Clarity
2.1 Inch Round LCD Display 480x480 Resolution 350cd/M2 Luminance High Clarity
2.1 Inch Round LCD Display 480x480 Resolution 350cd/M2 Luminance High Clarity
2.1 Inch Round LCD Display 480x480 Resolution 350cd/M2 Luminance High Clarity
Specifications
Brand Name :
Jingtai
Model Number :
JT-2.1IPSR
Place of Origin :
ShenZhen / China
MOQ :
5pcs
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Delivery Time :
1-5 weeks
Certification :
ISO9001 / ISO14000
Supply Ability :
2000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
1-20
Key Words :
2.1 Inch Round IPS
Resolution :
480*480
Display Mode :
IPS Full Viewing Angle
Luminance :
350cd/m² (Typ)
Interface Definition :
MIPI/RGB
Touch Screen :
CTP
CTP Interface :
12C
CTP Structure :
GF/GFF
Description
Product Specifications
Application
Number of pixels 480 × 480 pixels
Active Area 53.28 × 53.28 mm
Module Outline 56.18 × 59.71 × 2.22 mm
Display Mode Normally Black
Viewing Angle (CR>10) 85/85/85/85 (Typ)
Contrast Ratio 800 MIN, 1000 (Typ)
NTSC 70% (Typ)
LCM Brightness 350 cd/m² (Typ) — Adjustable
Interface MIPI/RGB
Operating Temperature -20 to +70 ℃
Storage Temperature -30 to +80 ℃

2.1-Inch Circular LCD Display | 480×480 RGB TFT | IPS Wide Viewing Angle | ST7701S Controller

Product Overview

The Jingtai Liquid Crystal Display Technology JT-2.1IPSR is a 2.1-inch circular TFT LCD module offering a high resolution of 480×480 pixels. Integrated with an ST7701S controller-driver IC, it supports 18-bit RGB and 3-line MIPI interfaces, and operates within a wide voltage range of 2.5V to 4.8V (typical 2.8V).

Key Features

1. Circular Design: Ideal for space-constrained and style-specific applications

2. High Resolution: 480×480 pixels for sharp and detailed graphics

3. Dual Interface: Supports both RGB and MIPI interfaces for flexible system integration

4. Brightness: 350 nits (typical) for clear visibility in various lighting conditions

5. Touch Options: Compatible with resistive or projected capacitive touch panels

6. Robust Operating Range:

Operating Temperature: -20℃ to +70℃

Storage Temperature: -30℃ to +80℃

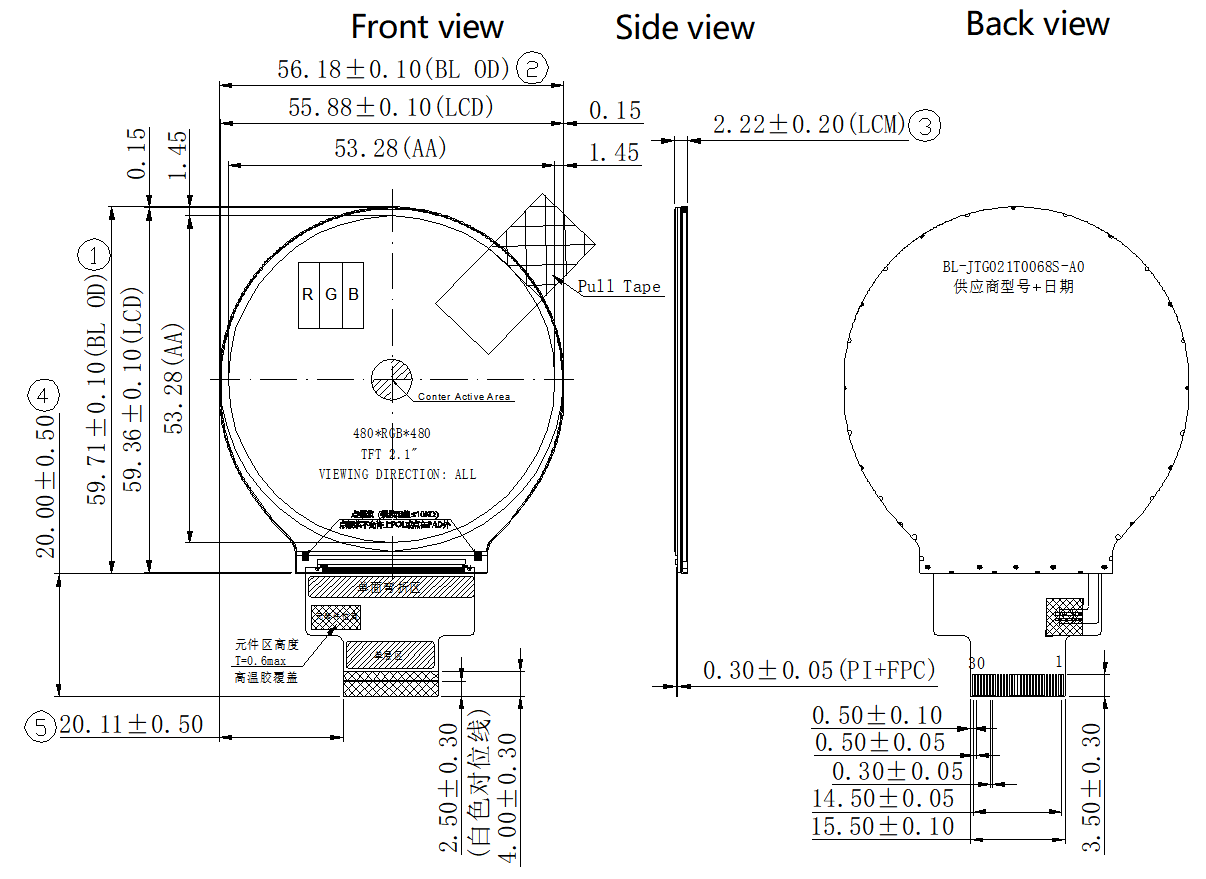

2.1" inch Rouch TFT Touch Screen LCD Drawing

2.1 Inch Round LCD Display 480x480 Resolution 350cd/M2 Luminance High Clarity

2.1 Inch Round LCD Display 480x480 Resolution 350cd/M2 Luminance High Clarity

2.1 Inch Round LCD Display 480x480 Resolution 350cd/M2 Luminance High Clarity

Applications

Widely used in multiple industries including:

1. Home Appliances: coffee machines, microwave ovens

2. Smart Home: automation systems, access control, garden irrigation

3. Industrial Equipment: scanners, monitoring devices, analyzers, security systems

This versatile 2.1-inch circular TFT LCD module combines high-performance display technology with reliable operation for diverse embedded visual applications.
