• High-resolution 800×800 pixel round display
• Wide viewing angles with 85° visibility in all directions
• Bright 350cd/m² adjustable backlight
• MIPI interface for reliable data transmission
• Wide operating temperature range for industrial applications

Product Introduction: 3.4-Inch Round TFT LCD Display with 800×800 Pixels for Automotive Applications

The JT-3.4IPSR is a 3.4-inch round TFT LCD display module offering a high resolution of 800×800 pixels. It delivers a brightness of 1000 cd/m² (nits, typical) and a contrast ratio of 1000:1 (typical). The LCD panel operates with a power supply voltage (VCC) ranging from 2.6V to 3.3V. This 3.4-inch IPS-type TFT display supports operating temperatures from -20 ℃ to +70 ℃, and can be stored in environments between -30 ℃ and +80 ℃.

This compact TFT LCD module is well-suited for a wide variety of applications, including:

1. Internet of Things (IoT) devices: Ideal for integration into smart home systems and industrial control systems.

2. Medical devices: Perfect for use in portable defibrillators, insulin pumps, and other medical monitoring and diagnostic equipment.

3. Industrial automation: Excellent for deployment in machine control, process control, and monitoring systems within industrial settings.

4. Gaming: A great choice for integration into handheld game consoles and other gaming applications.

These examples illustrate just some of the diverse potential uses of this 3.4-inch TFT display. The actual application will depend on the specific requirements of the product and the desired display features and performance.

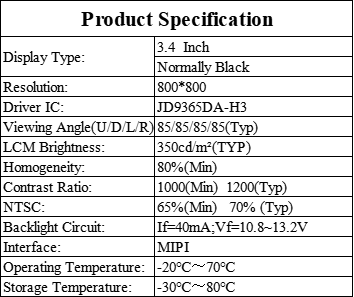

Features:

1. This 3.4-inch TFT LCD display provides a round screen with 800×800 pixel resolution.

2. The module incorporates an JD9365DA-H3 driver IC and supports MIPI interface.

3. Power supply voltage (Vdd) ranges from 2.6V to 3.3V, with a typical value of 2.8V.

4. The 3.4-inch circular LCD utilizes IPS technology for wide viewing angles up to 85/85/85/85.

5. The JT-3.4IPSR offers high brightness of 1000 nits.

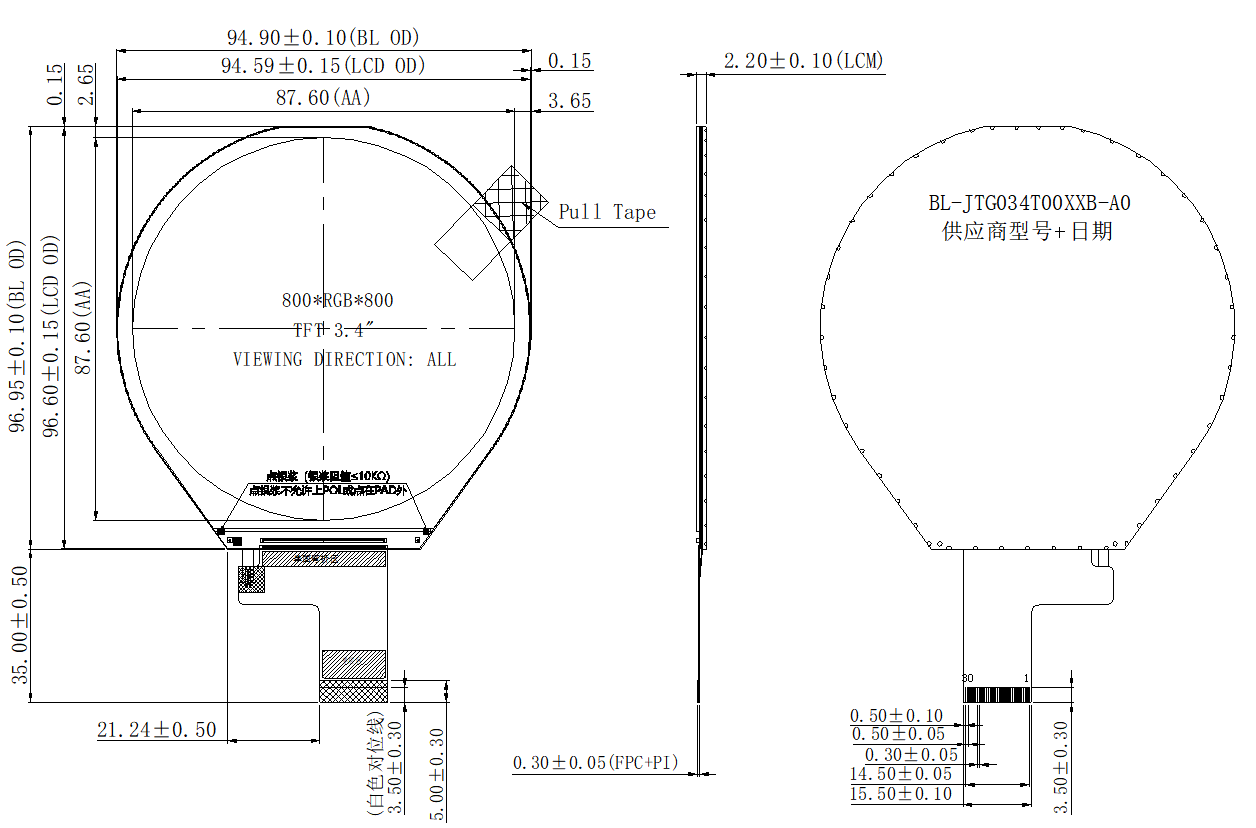

3.4" inch Rouch TFT Touch Screen LCD Drawing

Whether used in indoor or outdoor environments, this 3.4-inch TFT LCD display meets a wide range of visual requirements. It is a versatile and high-performance solution suitable for diverse applications.
