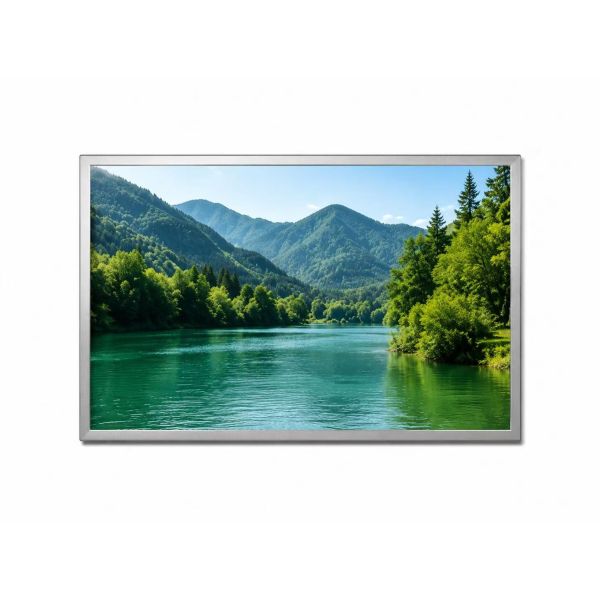

12.1 Inch IPS TFT LCD Module 1280x800 LVDS Office Automation Display

Product Introduction

This 12.1 Inch IPS TFT LCD Display features a 1280×800 resolution and is developed for Office Automation Display, Human Machine Interface and Embedded Display applications. The larger display area allows more information to be presented on a single screen, helping improve operational efficiency and user interaction. Combined with capacitive touch technology and IPS viewing performance, the module is suitable for intelligent control terminals and professional display equipment.

User Interaction Experience

• 1280×800 resolution provides clear presentation of operating interfaces, text and graphics.
• IPS TFT LCD technology supports wide viewing angles of 85/85/85/85.
• Capacitive touch panel enables smooth and responsive user interaction.
• Typical brightness options of 500 cd/m² and 1000 cd/m² support various installation environments.
• Suitable for applications requiring reliable display performance and intuitive operation.

Development Flexibility

The display module supports LVDS Interface for stable signal transmission and efficient system integration. The touch panel supports both I2C and USB communication, allowing compatibility with different controller platforms. Flexible interface options help simplify development processes and support customized Embedded Display solutions.

Typical Usage Scenarios

• Suitable for Office Automation Display terminals used for information management and equipment operation.
• Can be integrated into Human Machine Interface systems for monitoring and control applications.
• Applicable to intelligent office equipment requiring touch interaction and visual feedback.
• Suitable for embedded control panels, self-service terminals and operation consoles.
• Can be used in commercial and industrial devices where stable display performance and user-friendly operation are required.

The 12.1 Inch IPS TFT LCD Display combines a large viewing area, touch functionality and flexible interface support, providing an effective display solution for Office Automation Display, Human Machine Interface and Embedded Display applications.

Product Specifications

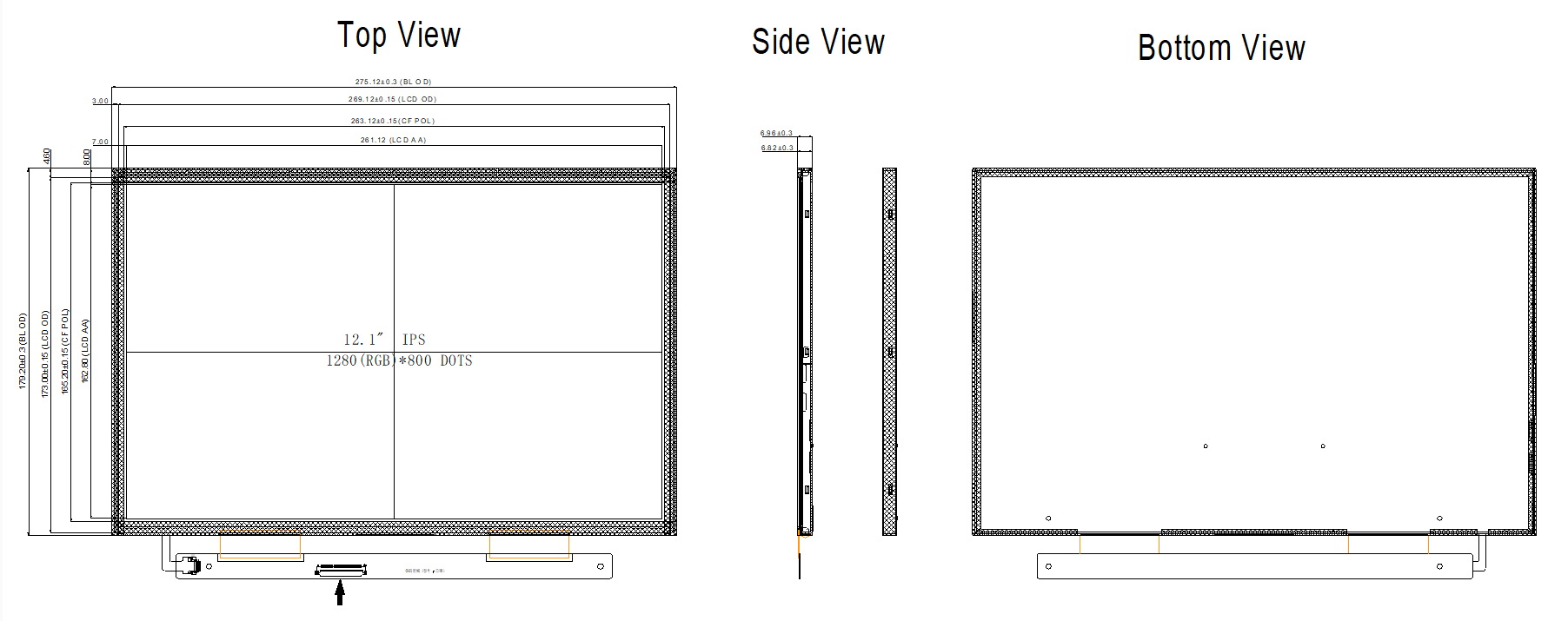

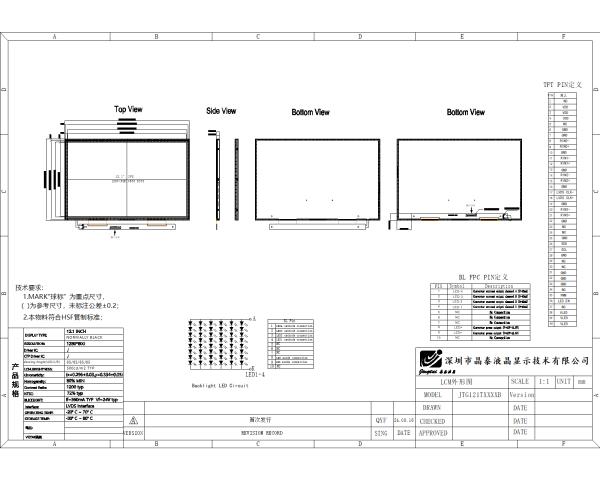

12.1 Inch IPS TFT LCD Module Drawing
