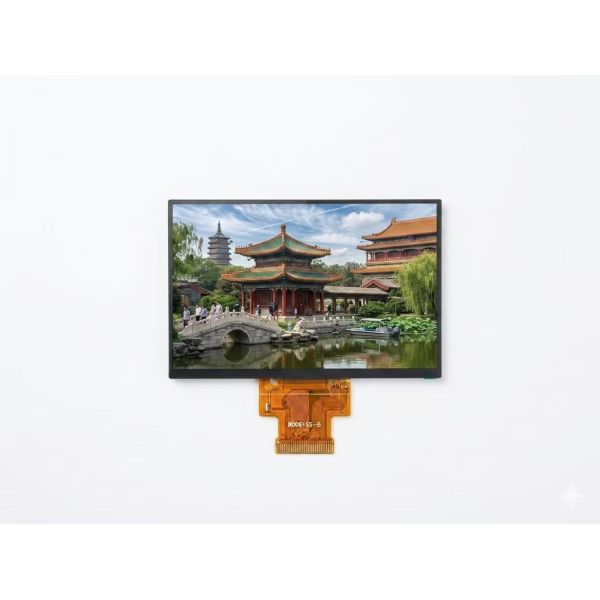

9.0 Inch IPS TFT LCD Touch Display Module 1280x720 LVDS For Office Equipment
9.0 Inch IPS TFT LCD Touch Display Module 1280x720 LVDS For Office Equipment
Specifications
Size :
9.0 Inch
MOQ :
5pcs
Certification :
ISO9001 / ISO14000
Viewing Angle :
85/85/85/85
Place of Origin :
Shenzhen/China
Interface Definition :
LVDS
Delivery Time :
1-5 weeks
Packaging Details :
Standard Exportation Package
Resolution :
1280 * 720
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Dispiay Mode :
IPS
Price :
1-20
Supply Ability :
2000K Pcs Per Month
CTP Structure :
GFF/GG
Luminance :
500 cd/m²(Typ) 800 cd/m²(Typ)
Model Number :
JT-9.0IPSOA
Brand Name :
Jingtai
CTP Interface :
12C/USB
Description

9.0 Inch IPS TFT LCD Touch Display Module 1280x720 LVDS For Office Automation Equipment


Designed for office automation equipment and intelligent control terminals, this 9.0 inch IPS TFT LCD module provides a 1280×720 resolution and 16:9 display format for clear visual presentation. The IPS display technology delivers wide viewing angles of 85/85/85/85, allowing information to remain visible from different positions during daily operation.


The module adopts a Normally Black display mode with a typical contrast ratio of 1200:1 and supports brightness options up to 800 cd/m². These specifications help improve screen readability for interface menus, operational data, equipment status pages and graphical control applications. The active area measures 198.912 × 111.888 mm while the module outline is 208.36 × 125.10 × 5.49 mm.


Supporting LVDS interface communication, the display can be integrated into office automation equipment, self-service terminals, control consoles, management panels and embedded display systems. Optional capacitive touch solutions with I2C and USB communication are available for interactive applications requiring touch operation and user input.


With an operating temperature range from -30℃ to +80℃ and storage temperature from -30℃ to +85℃, the module is suitable for long-term use in different indoor equipment environments. Its IPS viewing angle, stable display performance and touch screen compatibility make it a practical TFT LCD display module for office automation and intelligent terminal applications.


Product Specifications

Number Of Pixels

1280 * 720pixels

Active Area

198.912 * 111.888mm

Module Outline

208.36*125.10*5.49mm

Aspect Ratio

16:9

Display Model

Normally Black

Viewing Angle(CR>10)

85/85/85/85

Contrast Ratio

900(Min) 1200 (Typ)

NTSC

70%Typ

LCM Brightness

500 cd/m²(Typ) 800 cd/m²(Typ)

Interface

LVDS

Operating Temperature

-30~+80℃

Storage Temperature

-30~+85℃
