Specifications
Brand Name :
JETEX
Model Number :
FP Series
Certification :
CRAA ,ISO
Place of Origin :
Guangzhou Panyu
MOQ :
1
Price :
Depend on detail Models
Payment Terms :
T/T,Western Union
Supply Ability :
1000 per month
Delivery Time :
3-5 weeks
Packaging Details :
The unit is wrapped with anti-collision foam and film, or packed in a wooden case.
Description
New Horizontal Ceiling Concealed Chilled Water Ducted DC Motor Fan Coil Unit for HVAC System

Guangzhou Jetex-Lloyd Machinery Ltd is a professional manufacturer with over 30 years of experience in air handling equipment. Located in Guangzhou, China, with a production area of over 10,000 square meters.

Our Fan Coil Units are engineered for high efficiency, low noise operation, and stable performance, making them ideal for hotels, commercial buildings, offices, hospitals, and industrial facilities.

HVAC System 340-2380 Cm/h Brushless Motor Horizontal Fan Coil Unit (FCU) / Ceiling Fan Coil Unit ISO Certified HVAC System 340-2380 Cm/h Brushless Motor Horizontal Fan Coil Unit (FCU) / Ceiling Fan Coil Unit ISO Certified
Available FCU Models
  • Ceiling Concealed / Horizontal Units
  • Vertical Floor-Standing Units
  • Cassette Type Models
Key Features
  • Custom Design: Can be custom-designed according to project requirements, including airflow, cooling/heating capacity, dimensions, control options, and installation type
  • High Efficiency & Energy Saving: High-performance heat exchangers with optimized fin design and efficient motors (AC or EC optional) with low power consumption
  • Low Noise Operation: Precision-balanced fan and optimized air duct design
  • Multiple Installation Types: Available in ceiling concealed (horizontal/vertical), wall-mounted, and floor-standing configurations
  • Flexible Control Options: 3-speed or stepless fan speed control, thermostat control (manual or digital), optional BMS/Modbus connection
  • Reliable Quality & Long Service Life: Galvanized steel or powder-coated casing, copper tube & aluminum fin coils, strict quality control and factory testing
  • Wide Application Range: Suitable for commercial and residential HVAC projects

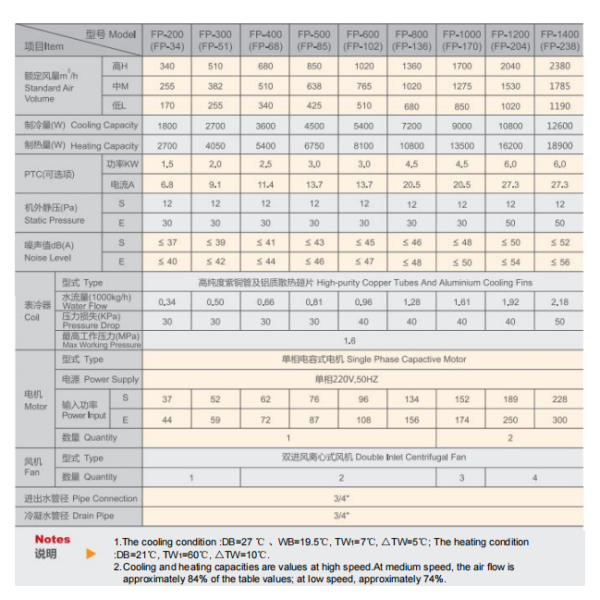

Technical Specifications
Applications

Residential Buildings


  • Commercial residential buildings, apartments and villas
  • Hardcover residential supporting projects

Commercial Office Buildings


  • Office buildings and business towers
  • Maker spaces and small studios
  • Government and institutional office areas

Commercial Complexes


  • Shopping mall shops and counters
  • Hotels and homestays
  • Catering auxiliary areas (private dining rooms, back-office areas)
  • Supermarkets and convenience stores (auxiliary areas, offices and storage zones)

Educational, Cultural & Medical Institutions


  • Schools (classrooms, teacher offices, libraries)
  • Hospitals (outpatient rooms, doctor offices, administrative buildings)
  • Training institutions and study rooms

Industrial & Warehousing Areas


  • Factory office buildings, R&D labs and quality inspection rooms
  • Warehousing auxiliary areas (office rooms, shipping zones)
  • Small light industrial workshops (no special temperature/humidity requirements)

Other Common Scenarios


  • Gyms and yoga studios
  • Beauty salons and nail salons
  • Bank branches and courier stations
HVAC System 340-2380 Cm/h Brushless Motor Horizontal Fan Coil Unit (FCU) / Ceiling Fan Coil Unit ISO Certified
Quality Certifications
HVAC System 340-2380 Cm/h Brushless Motor Horizontal Fan Coil Unit (FCU) / Ceiling Fan Coil Unit ISO Certified
Industry Exhibitions
HVAC System 340-2380 Cm/h Brushless Motor Horizontal Fan Coil Unit (FCU) / Ceiling Fan Coil Unit ISO Certified
Packing & Delivery
HVAC System 340-2380 Cm/h Brushless Motor Horizontal Fan Coil Unit (FCU) / Ceiling Fan Coil Unit ISO Certified
Frequently Asked Questions
1.What types of FCUs are available and how to choose the right one?
Our FCUs include wall-mounted, ceiling cassette, concealed ducted and floor-standing types. Selection is based on your space size (cooling/heating load), installation space (ceiling height/ wall space), and usage scenarios (e.g., ceiling cassette for offices, wall-mounted for residential rooms, ducted for concealed installation in hotels). We can provide a free load calculation and model recommendation based on your project details.
2.What are the available model numbers for the fan coil unit?
The available model numbers range from FP-200 to FP-1400.
