Specifications
Brand Name :
JETEX-LLOYD'S
Model Number :
5WC/5WV/5WH
Certification :
ISO quality system certification,CRAA
Place of Origin :
Guangzhou, Guangdong, China
MOQ :
One
Price :
negotiable
Payment Terms :
Bank transfer,T/T,Western Union
Supply Ability :
1000 units per month
Delivery Time :
35 work days
Packaging Details :
Specialized packing film
Air volume :
2000m³/h-65000m³/h
Function :
Cooling ,heating,filtering and all functions can be customized
Panel material :
Double-skin insulated panels, color steel sheet, galvanized steel sheet , stainless steel sheet ,and thickness of the panel can customized
Casing :
Alluminum alloy casing
Description

Jetex Standard Air Handling Unit


Product Specifications

Panel Types: Single-layer or double-layer panels.

Coil Rows: Available in 4-row, 6-row, or 8-row configurations.

Installation Types:

5WH Horizontal: Can be ceiling-mounted or floor-standing.

5WC Ceiling-mounted: Designed for installation within ceilings, with a lower profile than horizontal units.

5WV Vertical: Installed in machine rooms for easy maintenance.

5WF Surface-mounted Vertical: Ideal for environments where concealed installation or ductwork is impractical.

CBL Ultra-thin: Specifically designed for low-ceiling spaces, with an even lower profile than 5WC units.

Airflow ranges from 2,000 to 65,000 m³/h. All products have obtained the National Production License for Refrigeration Equipment.

Quality Assurance

All products undergo rigorous inspection before leaving the factory. From raw materials to finished products, each production step is supervised by dedicated quality control personnel. The company employs a fully automated computerized testing system to ensure product reliability and accuracy. Jetex has achieved ISO 9001 Quality Management System Certification.


Model No 5WC/5WV/5WH20-5WC/5WV/5WH650/CBL20-120
Air volume 2000m³/h-65000m³/h
Panel material Double-skin insulated panels, color steel sheet, galvanized steel sheet , stainless steel sheet ,and thickness of the panel can customized
Cooling capacity 12KW-1170KW
Product features Efficient and energy-saving
Heating capacity Customizable
Humidification capacity Customizable
Motor power 0.5KW-7.5KW (Customizable)
Pressure 250Pa-550Pa(Customizable)
Power supply 380V/3PH/50HZ(Customizable)
Cooling water coil 4 Rows-8 Rows
size Customizable

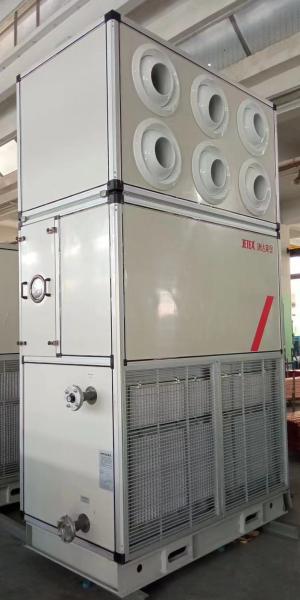

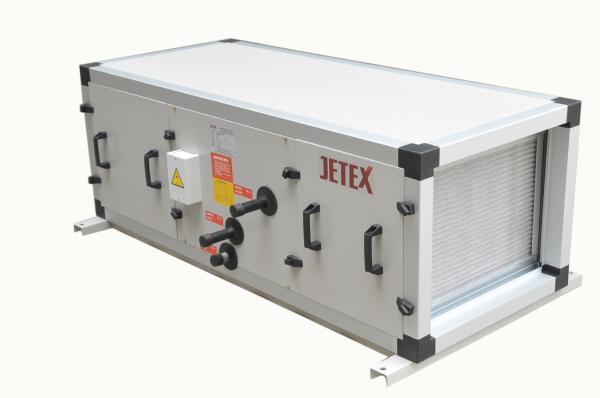

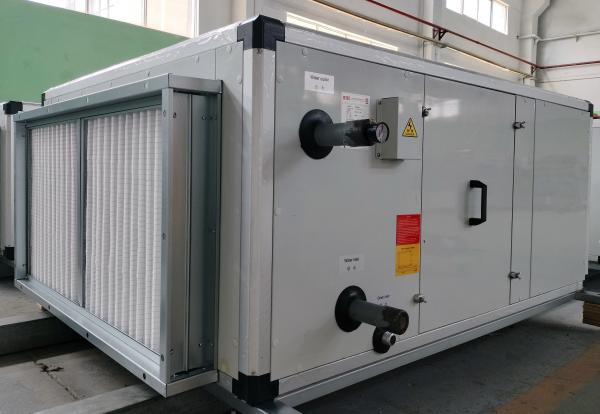

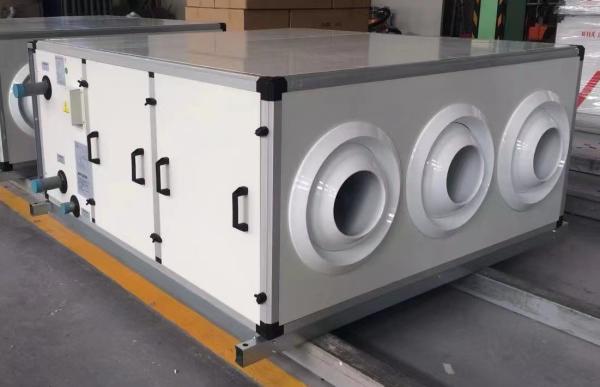

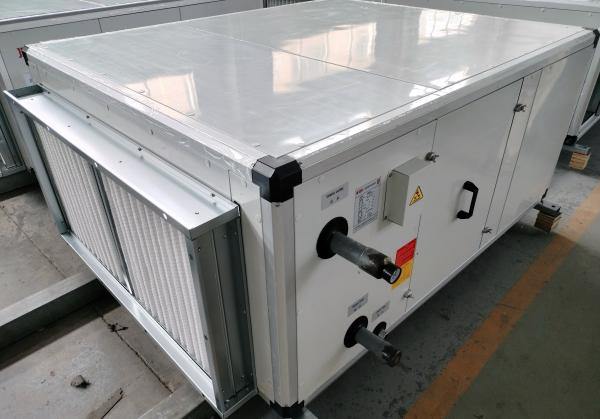

Different types air handling unit
