Water-cooled Modular Air Handling Unit (AHU）for HVAC System Manufacturer
Water-cooled Modular Air Handling Unit (AHU）for HVAC System Manufacturer
Specifications
Brand Name :
Jetex
Model Number :
AHS and 5W series
Certification :
ISO9001,2015,CRAA
Place of Origin :
Panyu ,Guangzhou
MOQ :
1
Price :
Pricing will be determined based on the actual solution.
Payment Terms :
T/T,Western Union
Supply Ability :
1000 per month
Delivery Time :
35 days
Type :
Air Handling Unit for HVAC Systems,Vertical Air Conditioner,Customizable,Water-cooled Modular AHU
Condition :
New
Mounting :
Floor Standing,Ceiling Mount,Door Mounted,rooftop mounted
Operating voltage :
Customizable
After-sales service provided :
Engineers available to service machinery overseas,Overseas service center available,Overseas third-party support available,No overseas service provided,Free spare parts
Application :
Hospital, workshop ,factory ,shopping mall ,Commercial,large office,Industrial and commercial large open space,
Product name :
chilled water air handling unit
Cooling capacity :
21.2-517.9kw,8.4-168 Kw,500W,18.0kw,8.4 kw
Function :
humidification,HVAC Terminal Unit,Cooling and heating,Fresh Keeping,Cooling/Heating/heat recovery/humidifying/purification/
Airflow :
2000-20000CMH (customized cap.)
Color :
white
Fan type :
direct driven /belt driven/AC/EC plug fan,Direct driven or belt driven,Centrifugal fan/plug fan,AC belt drive fan,Axial
Warranty :
1 Year
Material :
Aluminum,polyurethane foam insulation , Aluminum alloy structure ,Stainless Steel,
Description

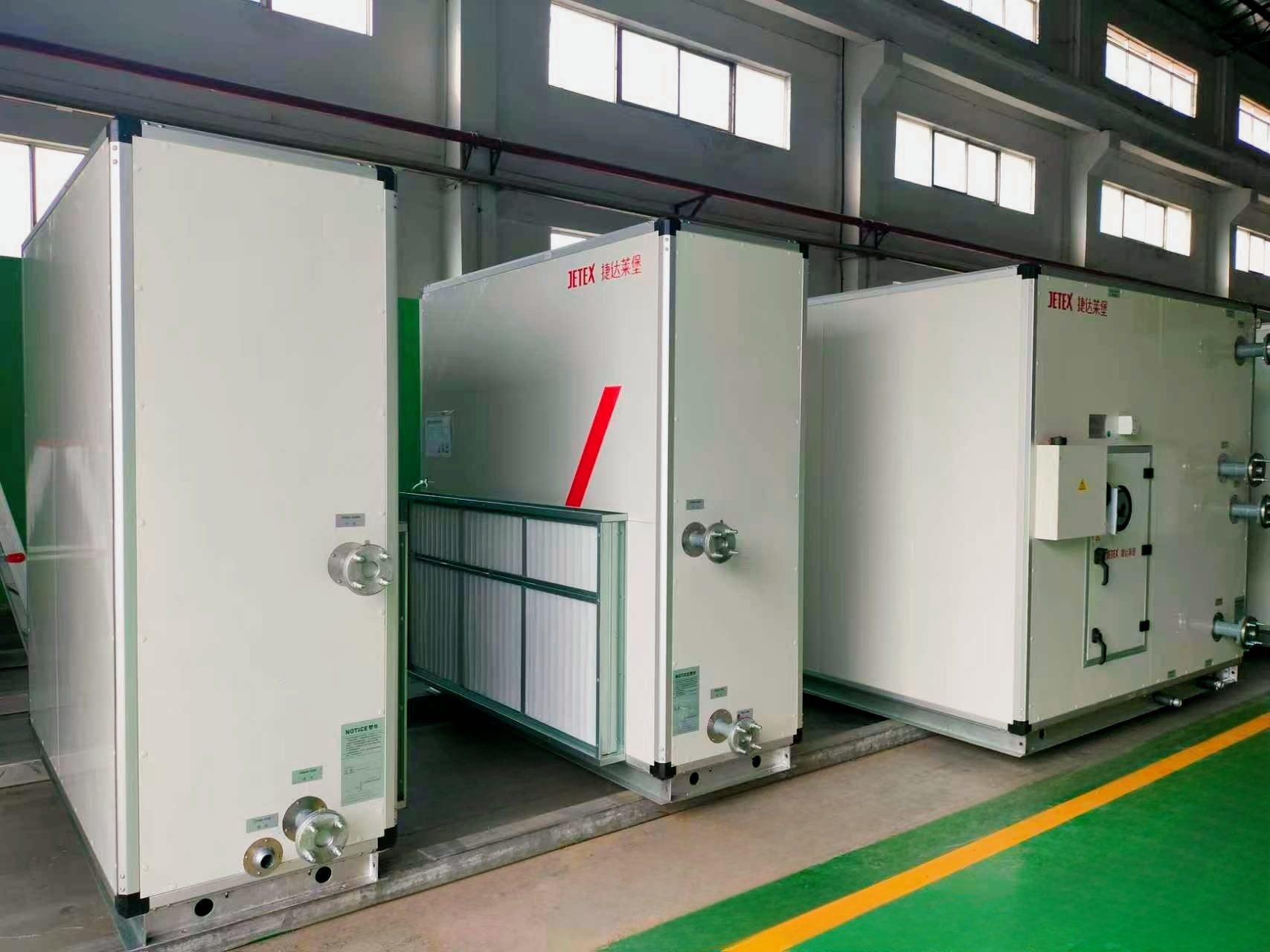

Water-cooled Modular Air Handling Unit (AHU)

The water-cooled modular air handling unit is designed to handle, cool, heat, filter, and distribute air efficiently in central air conditioning systems. It utilizes chilled water or hot water as the cooling and heating medium, ensuring stable performance and energy-efficient operation.

The unit adopts a modular design, allowing flexible configuration of different functional sections — such as the mixing section, filter section, cooling coil, heating coil, humidification section, fan section, and silencer section — according to project requirements.

The water-cooled AHU is widely applied in commercial buildings, factories, hospitals, clean rooms, laboratories, and other areas requiring large air volumes and reliable temperature and humidity control.


Key Features:

Modular structure: easy transportation, installation, and maintenance.

Water-cooled coils: high heat exchange efficiency and long service life.

Flexible configuration: customizable to different air volumes and applications.

Thermal and acoustic insulation: ensures quiet and stable operation.

High-quality casing: galvanized steel or color steel panels with polyurethane insulation.

Optional sections: heat recovery, humidification, fresh air intake, etc.

Key Features of JETEX AHU :
  • Double 50mm Skin Panel, outer plate is made of high quality pre-painted steel sheet, while inner plate is made of galvanized steel sheet. In the middle is high pressure foamed hard polyurethane as insulation, thickness: 50mm.
  • Using advance software selection to have coil performance.
  • Filter sections of Aluminum pre-filter, medium filter, bag type filter HEPA filter are available upon application requirement.
  • High efficiency copper tube with Aluminum fin, chilled water coil, with drain pan, Hot water and electric step heating; Steam and Electrode type Humidifier are available.
  • Energy saving Heat Wheel Recovery section are available.
  • Forward, Backward inclined Fans are available for specific fan application; Fan assembly framework with adjustable motor base for proper fan belt tension adjustment; Spring isolator for Fan Assembly Frame is special non defective type for protection of vigorous transportation.
Just contact us to tailor air solutions for you.
