EC-B Electric Chain Hoist with Smooth Dual-Speed Frequency Control System and Ceramic Brake System for Heavy-Duty Applications
EC-B Electric Chain Hoist with Smooth Dual-Speed Frequency Control System and Ceramic Brake System for Heavy-Duty Applications
EC-B Electric Chain Hoist with Smooth Dual-Speed Frequency Control System and Ceramic Brake System for Heavy-Duty Applications
EC-B Electric Chain Hoist with Smooth Dual-Speed Frequency Control System and Ceramic Brake System for Heavy-Duty Applications
EC-B Electric Chain Hoist with Smooth Dual-Speed Frequency Control System and Ceramic Brake System for Heavy-Duty Applications
EC-B Electric Chain Hoist with Smooth Dual-Speed Frequency Control System and Ceramic Brake System for Heavy-Duty Applications
EC-B Electric Chain Hoist with Smooth Dual-Speed Frequency Control System and Ceramic Brake System for Heavy-Duty Applications
EC-B Electric Chain Hoist with Smooth Dual-Speed Frequency Control System and Ceramic Brake System for Heavy-Duty Applications
EC-B Electric Chain Hoist with Smooth Dual-Speed Frequency Control System and Ceramic Brake System for Heavy-Duty Applications
EC-B Electric Chain Hoist with Smooth Dual-Speed Frequency Control System and Ceramic Brake System for Heavy-Duty Applications
EC-B Electric Chain Hoist with Smooth Dual-Speed Frequency Control System and Ceramic Brake System for Heavy-Duty Applications
EC-B Electric Chain Hoist with Smooth Dual-Speed Frequency Control System and Ceramic Brake System for Heavy-Duty Applications
Specifications
Brand Name :
Jentan
Model Number :
JTEC-B
Certification :
CE,GS
Place of Origin :
CHINA
MOQ :
1
Price :
USD 700/PC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1-10000PCS
Delivery Time :
5-50DAYS
Packaging Details :
WOODEN PACKAGE
Brake :
a ceramic brake system
Working Temperature :
-30℃ ~ +60℃
Ambient Humidity :
≤85%
Capacity :
1 ton - 10 ton
Air Pressure :
6Bar
Operating Temperature :
-20°C - +40°C
Supply Power :
220 - 600 V , 50 - 60 Hz
Oem :
yes
Maximum Lifting Weight :
0.25-100T
Lifting Weight :
5T Electric Chain Hoist
Push Botton :
waterproof push botton
Lift Height :
3-30 M
Control Voltage :
24V/36V/48V
Chain Diameter :
10
Chain Length :
3m - 30m
Product :
Electric Chain Hoist
Description

EC-B Electric Chain Hoists

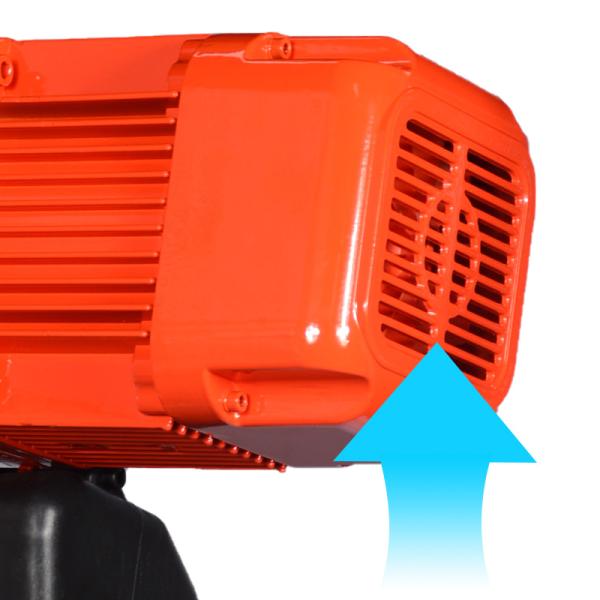

This heavy-duty electric chain hoist is engineered for superior performance and reliability in demanding industrial environments. Its robust aluminum die-casting body and connecting shaft external design ensure lightweight durability and long service life. The heart of the hoist is an air-cooled motor, built to withstand harsh conditions and prevent overheating during intensive operation.

Safety and precision are paramount. The hoist features a secure and reliable brake device, backed by an integrated friction clutch for overload protection. The upper and lower limit switches provide automated stopping for enhanced operational safety. Further contributing to smooth and quiet performance are the unique chain guide mechanism, which ensures precise load positioning, and the low-noise gear construction.

Additional premium features include a G80 alloy steel load chain for maximum strength, a durable high-quality chain bag for clean and organized storage, and an IP55 rating for protection against dust and water jets. Equipped with a standard inlet contactor for safe power control, this hoist is the complete solution for your critical lifting applications.

stallation and maintenance; each hoist is inspected and tested to over 125% of the rated load before shipment.

EC-B Electric Chain Hoist with Smooth Dual-Speed Frequency Control System and Ceramic Brake System for Heavy-Duty Applications

EC-B model, featuring a smooth dual-speed frequency control system and a ceramic brake system with a five-year warranty—far exceeding the typical two-year warranty of our competitors.

3-Phase,380V,50 HZ(Single Speed/Dual Speed)
Model Capacity Standard Lift Lifting Speed
(m/min)		 Lifting Motor Working
Grade		 NetWeight Extra weight per
meter of extra lift		 Dia of Chain Packing Size
(ton) (m) Single/Dual Power(kw) Rotation
Speed(r/min)		 (kg) (kg) (mm) (cm)
JTEC-B01-01 IS 1.0 4 7 2.3 1.5 1440 M5 58 1.1 7.1 68x34x40
JTEC-B02-01 IS 2.0 4 7 2.3 3.0 1440 M5 110 2.1 10 76x40x48
JTEV-B02-02 IS 2.0 4 3.5 1.2 1.5 1440 M5 68 2.2 7.1 68x34x40
JTEC-B03-01 IS 3.0 4 7 2.3 3.6 1440 M5 118 2.6 11.2 76x40x48
JTEC-B03-02 IS 3.0 4 3.5 1.2 3.0 1440 M5 128 4.4 10 76x40x48
JTEC-B05-02 IS 5.0 4 3.5 1.2 3.6 1440 M5 135 5.2 11.2 76x40x48
JTEC-B075-03 IS 7.5 4 2.3 0.8 3.6 1440 M5 175 7.8 11.2 76x55x75
