Specifications
Brand Name :
Jentan
Model Number :
JTHH-C
Certification :
CE;GS;EN;ISI;AU;UL;CUL;TUV
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500000pcs per year
Delivery Time :
7-60 days
Price :
Negotiation
Packaging Details :
Wooden Box
Operating Temperature :
-10-50°C
Working Power :
220V~690V,50HZ/60HZ
Lift Speed :
2.1/4.3
Phase :
1P/3P
Chain :
Japan FEC chain
Material :
Alumimum
Application :
Warehouse, Building, Wharf, Ect.
Speed :
11m/min-21m/min
Load Of Chain :
Japan chain
Chain Dia :
11.2 mm
Function :
lifting
Protection Level :
IP65
Warranty :
1 Year
N.W :
11.5-14.5KG
OEM :
SUPPORT
Description

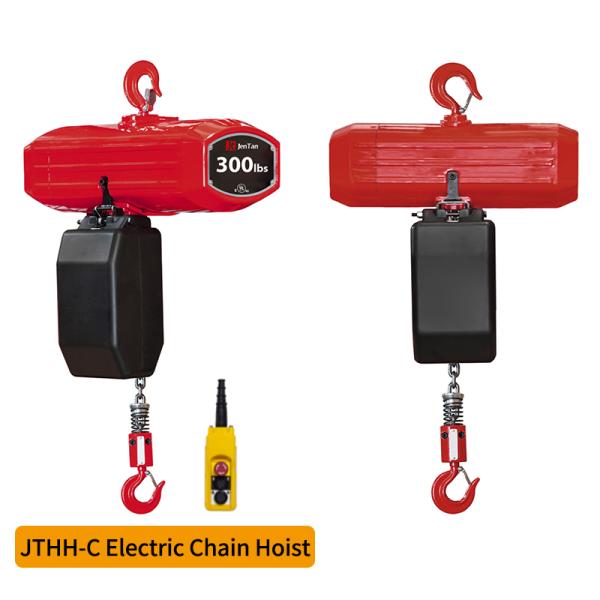

JTHH-C Electric Hoist

1. New design and light body;

2. The protection grade of the motor rotor is IP55;

3. Brakes: Disc DC electromagnetic brakes, with large braking torque, smooth and rapid braking, and low noise;

4. The contact type upper and lower limit switches are safe and reliable;

5. All electrical components of contactors, transformers and terminals are closed with a block type;

6. Protection class lP55;

7. The clutch bearing adopts powder metallurgy library wiper, which has good heat dissipation and long service life;

8. The castor box is made of PE polyethylene, which is odorless, impactless, and feels like a grandma;

9. The machine body uses commercial strength aluminum alloy. Thin-wall extrusion molding is made in orange dense, commercial pressure die-casting to avoid the formation of pores during the forming process. Raise the strength of the body, reduce the appearance of cocoon;

10. When the motor is running, the noise is low (measured at the rated electric frequency and rated lifting, the noise is ≤82 dB).

11. JTHH-C Series Mini Single Chain Electric Chain Hoist for Light Duty Lifting

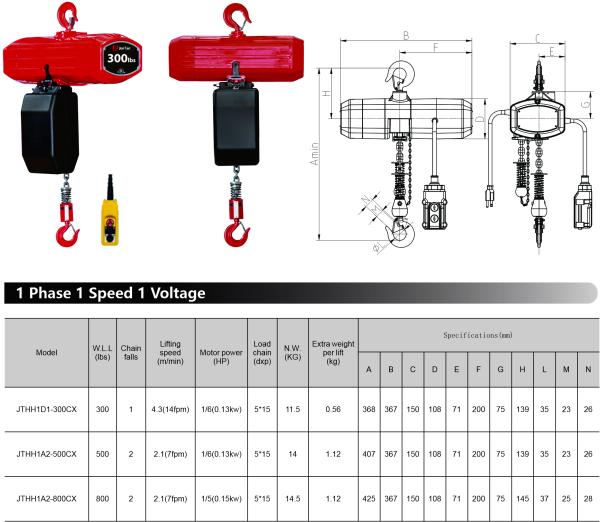

JTHH-C Series Mini Single Chain Electric Chain Hoist
(300lbs~800lbs)
MODEL NO. W.L.L.(lbs) Chain
Falls 		Lifting Speed
(m/min) 		Motor Power
(HP) 		Load Chain
(dxp) 		N.W.
(kg) 		Extra Weight
Per Lift(kg) 		Specifications(mm)
A B C D E F G H L M N
JTHH1D1- 300CX 300 1 4.3(14fpm) 1/6(0.13KW) 5x15 11.5 0.56 368 367 150 108 71 200 75 139 35 23 26
JTHH1A2- 500CX 500 2 2.1(7fpm) 1/6(0.13KW) 5x15 14 1.12 407 367 150 108 71 200 75 139 35 23 26
JTHH1A2- 800CX 800 2 2.1(7fpm) 1/5(0.15KW) 5x15 14.5 1.12 425 367 150 108 71 200 75 145 37 25 28

Standard Power: Single Phase, 115V, 60HZ; other could be customized.
