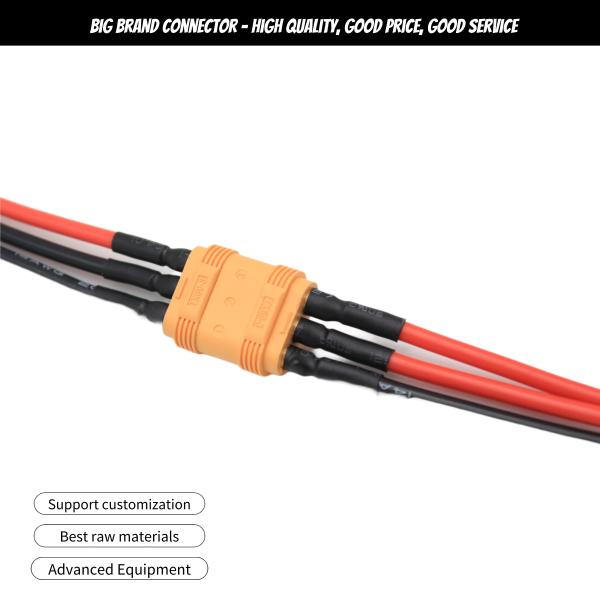

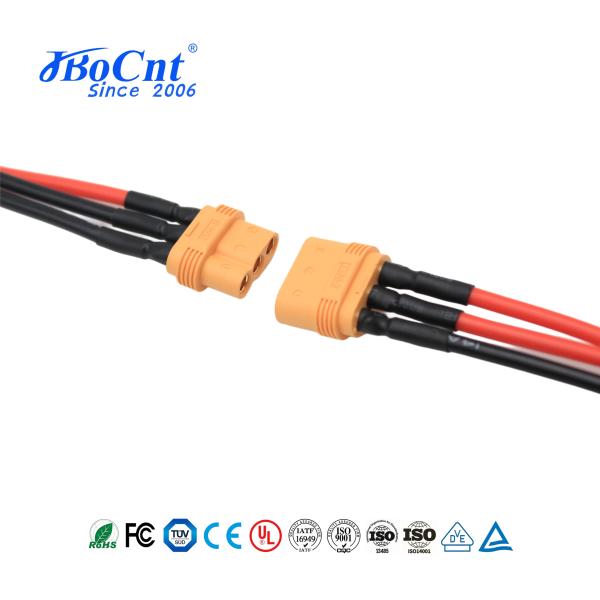

Jbocnt Group Power Battery Harness TX60-3 Plug Male Female 3-Pin Connector With Sheath Suitable For Brushless Motor UAV Lithium Battery Model Aircraft Connector

Product advantages

The core advantages of XT connectors are mainly reflected in the following aspects:

1. Excellent current carrying capacity
‌▶Graded current design‌:
TX60 supports 30A continuous current (peak 65A) to meet the needs of micro devices to industrial high-power scenarios
2. Innovative structure and reliable connection
‌▶Anti-misplugging and anti-vibration design‌:
The groove structure of the heterosexual sheath (XT60/XT90) prevents misplugging and removal. The upgraded XL series adds side buckles with a pull-off force of ≥5kg, meeting the GB/T26846 anti-vibration standard.
▶‌Anti-spark and protection‌:
XT90-S has a built-in load resistor to eliminate plug-in sparks and is compatible with 10AWG silicone wire (resistant to high temperatures of 120℃)
IP65 protection level (some models are IP67), resistant to dust, water splashes and harsh environments.
3. Top materials and processes
‌▶Gold-plated contact technology‌:
24K gold-plated contacts (contact resistance ≤ 0.65mΩ) provide 99.9% conductivity, and their resistance to oxidation and corrosion far exceeds that of silver-plated materials
‌▶High-strength engineering plastics‌:
The upgraded version uses a PBT shell (glowing wire test 850°C), an operating temperature of -40°C to +140°C, and a 40% increase in temperature shock resistance.
‌▶Riveting process upgrade‌:
The XL series B-type riveting process replaces welding, eliminates the risk of false welding, and reduces the difficulty of quality control.
4. Scene adaptation and long-term durability
‌▶Multi-field applications‌:
Covering drone microcomputers (XT30), outdoor power supplies (XT60), electric vehicle battery packs (XT90-S) and industrial equipment.
‌▶Extremely long service life‌:
Plug-in life ≥ 5000 times (such as QS8 vs. XT90), the wear resistance of the gold-plated layer extends the maintenance cycle.
‌▶Summary‌: XT connectors have become a benchmark solution for high-power, harsh environment applications through their graded current architecture, shock-resistant and spark-proof structure, gold-plated contacts + PBT material combination, and industrial-grade protection design.

Our customers

FAQ

1. How does your 19-year experience translate to product quality?‌

• ‌Precision‌: ±0.01mm tolerance control (e.g., 0.3mm pitch board-to-board connectors) through mature mold technology.
• ‌Reliability‌: Proven performance in extreme conditions (-40℃ to +125℃, IP68 rating) for automotive/aerospace applications.
• ‌Durability‌: Optimized plating (gold/tin alloy) ensures 10,000+ mating cycles with minimal contact resistance fluctuation.

‌2. What client benefits come from your long-term experience?‌

• ‌Customization‌: Cross-industry solutions (telecom/medical/auto) with rapid design-to-production support.
• ‌Supply chain‌: Stable raw material partnerships (copper alloys/PBT) reducing costs by 15-20%.
• ‌Quality control‌: Full digital traceability with <0.1% defect rate.

‌3. How do you address high-frequency demands?‌

• ‌R&D focus‌: 110GHz coaxial connectors for 3Gbps+ transmission (5G/AI compatible).
• ‌Process innovation‌: IDT technology and automated crimping to ensure consistent insulation/alignment.
• ‌Certifications‌: RoHS/REACH/UL compliance with complete documentation.

‌4. Service differentiators?‌

• 24/7 remote troubleshooting for field issues (e.g., crimping defects).
• Shared 3D model libraries and cross-reference tools for faster replacement.
• Joint R&D priority for strategic clients (e.g., Electric vehicle lithium battery, energy storage system).
