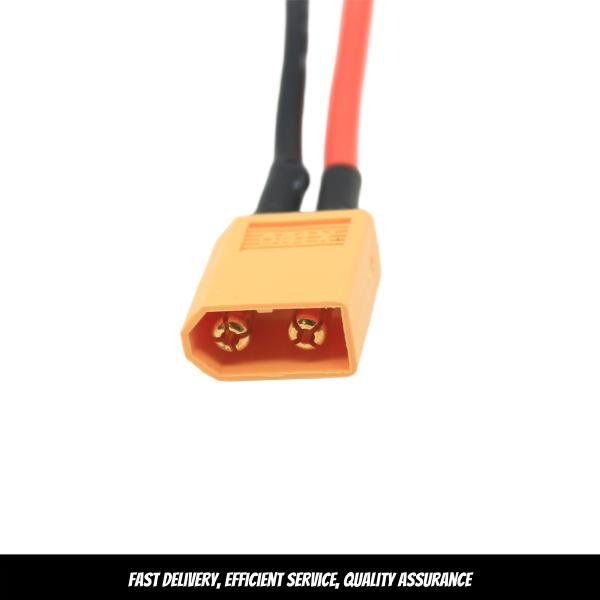

Jbocnt Charging Socket 2+4P To XT+SM Connector Harness EV Connector Harness Lithium Battery Connector Suitable For Lithium Battery Charging And Discharging

The design of this connector has multiple advantages

This connector is designed for lithium batteries, electric vehicles and energy storage systems, and has excellent performance.

Rated current up to 30 amps, meeting the needs of high-power transmission.

High-quality materials are used to ensure safe, reliable and durable electrical connections.

Compact design saves space, is easy to install, and is compatible with a variety of cable types.

Provides stable and efficient power transmission, making it an ideal choice for power connection of your equipment.

30A high current 2+4 cable connector

1. Conductive system (electric vehicle connector/energy storage cable)

6N oxygen-free copper conductor (99.9999% purity) with 0.8μm gold plating, contact resistance <3mΩ (IEC60512 standard)

10AWG silicone cable passed UL1581 certification, temperature resistance -60℃~200℃, bending life >100,000 times

2. Protection structure (IP67 waterproof connector)

Zinc alloy die-cast shell passed 96 hours salt spray test, surface nickel plating

Triple-proof design: IP67 protection level + LV214 vehicle regulation shockproof + flame retardant UL94V-0

3. Thermal management solution (high current temperature rise control)

Copper-aluminum composite heat dissipation architecture makes the temperature rise only 22K at 30A load

Temperature warning design: built-in NTC thermistor (optional)

4. Industry verification (energy storage system connection solution)

3000 hours of zero-fault operation in 48V/100Ah energy storage system

Efficiency > 98.5% when adapted to 4-6mm² cable

Key Features

• Sealed to protect against dust and liquids (IP67)
• Power connector is waterproof
• Resistant to vibration, shock, and stretching
• Socket with cover
• Cable assembly bracket
• Custom cable sizes and lengths

Features:
• 1. Power supply, 4IN signal
• IP67 grade
• Rated voltage: 300V
• Cable range: 10AWG
• UL, TUV, CB, CCC, CE, RoHS certification
• Mating times: 3000 times

What is the size?

Our customers

FAQ

Q&A: Analysis of Jbocnt's global competitiveness as a connector manufacturer

Q1: What are your core advantages compared to Southeast Asian manufacturers?

A: Material technology: Military-grade silicone wire (temperature resistant -60℃~200℃) and zinc alloy die-cast shell, passed 96-hour salt spray test

Process standard: Main channel plug-in force 40N±5% (better than the industry standard of 50N), contact resistance still <3mΩ after 1500 cycles

Complete certification: Simultaneously holds UL1977/CE/USCAR-2 three certifications, global certification, supports customers to directly export to the European and American markets

Q2: How to ensure stable quality of large-scale delivery?

A: Full process control: From copper smelting to electroplating processing, AI quality inspection coverage of key processes is 100%

Traceability system: Each connector is laser-marked with a QR code, and production batch/test data can be queried

Q3: Can customized services be provided?

A: Quick response: Provide 2+4 channel structure adjustment plan (including 3D drawings) within 72 hours

Flexible adaptation: Support main channel 30A-60A current specification switching, shell color/logo can be customized

Q4: What are the guarantees for after-sales support?

A: Technical team: Equipped with global engineers, respond to technical consultation within 15 minutes
