Black Smooth PVC Conveyor Belt High Friction For Logistics Industry
Black Smooth PVC Conveyor Belt High Friction For Logistics Industry
Black Smooth PVC Conveyor Belt High Friction For Logistics Industry
Black Smooth PVC Conveyor Belt High Friction For Logistics Industry
Black Smooth PVC Conveyor Belt High Friction For Logistics Industry
Black Smooth PVC Conveyor Belt High Friction For Logistics Industry
Black Smooth PVC Conveyor Belt High Friction For Logistics Industry
Black Smooth PVC Conveyor Belt High Friction For Logistics Industry
Specifications
Working Temperature :
-10/+80℃
Character :
high friction
Belt Type :
PVC Conveyor Belt
Advantage :
Flame resistance/ Low noise / anti-slip
Usage :
logistics Industry; airport industry
Abrasion Resistance :
High
Pattern :
smooth
Ply :
2
Color :
green; petrol blue; grey; white; black; etc.
Brand Name :
Jarulan
Model Number :
PVC5/5RF2PB AS
Place of Origin :
China
MOQ :
1 square meter
Payment Terms :
T/T; LC,etc
Delivery Time :
within 15-20 days
Packaging Details :
Wrapped with stretched film & Packed in pallets
Description

Description

Black smooth PVC Conveyor Belt for logistics industry

For AIR PORT AND LOGISTICS INDUSTRY

Flame resistance,wear resistance,anti static are the characteristics of airport and postal logistics industrial belts.We are specialized in turning conveyor belt,swing belt,baggage carrying belt,timing belt etc. They're widely used in inspection and sorting system for airport,parcel,logistic,supermarket and warehouse distribution.

PRODUCT ADVANTAGES:

  • With a variety of specifications; manufacturing or processing according to the specific application of environmental production is available.
  • Stable quality of dimensions; can be applied to changing temperature environment.
  • Low noise characteristics improve the transport environment.

TECHNICAL DATA OF RECOMMENDATION:

The following recommendation is just for standard reference.As conveying and processing systems are diverse and complex, we can customize solutions according to our customers' exact application situations.

Code Thickness Material Surface Bottom Color Plies 1% Extension stress
(N/mm)		 Weight
(kg/㎡)		 Min. roller diameter
(mm)		 Temperature range
(℃)		 Standard Prodiction width
(mm)
PVC2/8SF2BK AS 2.80 PVC smooth fabric black 2 8 3.2 60 -10~+80 2000/3000
PVC5SF3BK AS 5.00 PVC smooth fabric black 3 13 5.4 100 -10~+80 2000/3000

We can manufacture max. width of 3500mm.

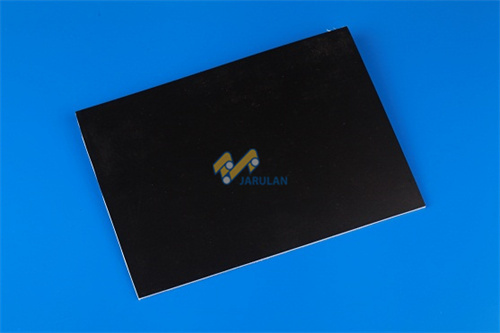

PRODUCT DETAIL:

Black Smooth PVC Conveyor Belt High Friction For Logistics IndustryBlack Smooth PVC Conveyor Belt High Friction For Logistics Industry

Other related products for logistics and airport application:

Code Thickness Material Surface Bottom Color Plies 1% Extension stress
(N/mm)		 Weight
(kg/㎡)		 Min. roller diameter
(mm)		 Temperature range
(℃)		 Standard Production width
(mm)		 Special properties
PVC2/5MF2BK 2.50 PVC matt fabric black 2 10 3.0 50 -10~+80 2000/3000
PVC2/8LF2BK-FR 2.80 PVC longitudinal groove fabric black 2 10 3.2 60 -10~+80 2000/3000 Flame resistance/ Low noise
PVC5SF3G 5.00 PVC smooth fabric green 3 13 5.4 100 -10~+80 2000/3000
PVC5SF3BK 5.00 PVC smooth fabric black 3 13 5.4 100 -10~+80 2000/3000
PVC5SF3W 5.00 PVC smooth fabric white 3 13 5.4 100 -10~+80 2000/3000
PVK120 3.00 PVK black 2 14 3.3 60 -10~+80 2000/3000
PVK125 4.00 PVK black 2 25 4.2 100 -10~+80 2000/3000
PVK150 4.80 PVK black 2 25 5.0 120 -10~+80 2000/3000
Code Thickness Material Surface Bottom Color Plies 1% Extension stress
(N/mm)		 Weight
(kg/㎡)		 Min. roller diameter
(mm)		 Temperature range
(℃)		 Standard Production width
(mm)		 Special properties
PVC4/8RF2BK-FR 4.8 PVC rough fabric black 2 12 5.4 100 -10~+80 2000/3000 Flame resistance/ Low noise
PVC4/8RF2DG 4.8 PVC rough fabric deep green 2 12 5.4 100 -10~+80 2000/3000
PVC5/2RF2G 5.2 PVC rough fabric green 2 8 4.3 40 -15~+80 2000/3000
PVC5/2RF2BK 5.2 PVC rough fabric black 2 8 4.6 50 -10~+80 2000/3000 Flame resistance/ Low noise
PVC5/2RF2DG 5.2 PVC rough fabric deep green 2 8 4.6 50 -10~+80 2000/3000
PVC5/5RF2LB AS 5.5 PVC rough fabric light blue 2 8 4.8 60 -10~+80 2000/3000
PVC5/5RF2PB AS 5.5 PVC rough fabric petrol blue 2 8 4.8 60 -10~+80 2000/3000
PVC5/5RF2PG AS 5.5 PVC rough fabric petrol green 2 8 4.8 60 -10~+80 2000/3000
PVC5/5RF2LB AS 5.0 PVC rough fabric petrol blue 2 8 4.5 55 -10~+80 2000/3000

PRODUCT DETAIL:

Black Smooth PVC Conveyor Belt High Friction For Logistics IndustryBlack Smooth PVC Conveyor Belt High Friction For Logistics IndustryBlack Smooth PVC Conveyor Belt High Friction For Logistics IndustryBlack Smooth PVC Conveyor Belt High Friction For Logistics Industry

As an experienced manufacturer of PVC and PU conveyor belt, JARULAN is able to produce the conveyor belts according to customers' requirement with high quality output.

Thickness, pattern, fabric layers, fabric type, materials of the conveyor belts are available to customize. We could make exactly the same as your provided technical data sheet as well.

Black Smooth PVC Conveyor Belt High Friction For Logistics IndustryBlack Smooth PVC Conveyor Belt High Friction For Logistics Industry
