Basket Profile I Shape Pattern PVC Conveyor Belt 2.5mm 3.2mm 3.5mm Thickness
Basket Profile I Shape Pattern PVC Conveyor Belt 2.5mm 3.2mm 3.5mm Thickness
Specifications
Place of Origin :
China
Packaging Details :
Wrapped with stretched film & Packed in pallets
Delivery Time :
within 15-20 days
Payment Terms :
T/T; LC,etc
MOQ :
1 square meter
Working Temperature :
-10/+80℃
Item :
PVC Conveyor Belt
Color :
Petrol Green
Thickness :
2.1mm/2.5mm/2.8mm
Top Pattern :
basket weave/I shape
Bottom :
polyester fabric
Description

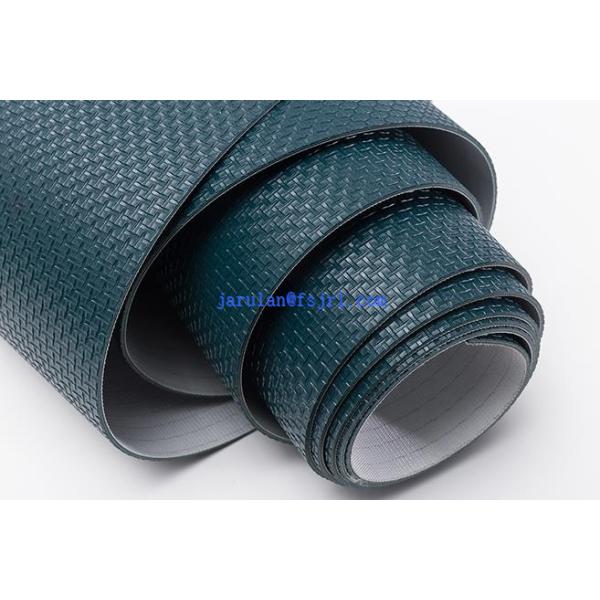

Basket I shape Pattern PVC Conveyor Belt
Description

Basket Profile I Shape Pattern PVC Conveyor Belt 2.5mm 3.2mm 3.5mm Thickness

Basket profile PVC belt is widely applied in general industry.

We could produce different thickness like 2.5mm, 3.2mm, 3.5mm, 4mm, etct to customers.

Normal polyester fabric, low noise fabric and other types of fabric could be matched with this type of belt as well.

Technical Data Sheet
Belt data
Color Petrol Blue
Tension Member Polyester Fabric
Fabric layer(s) 2 EM
Total Thickness 2.5 mm 0.098 inch
Weight approx. 2.6 kg/m² 0.532 lb/ft²
Standard width 2000 mm 78.7 inch
Maximum width 3000 mm 118.1 inch
Top side PVC H24 PetrolBlue
Thickness 0.9 mm 0.035 inch
Hardness 45A Shore hardness
Middle side PVC PetrolBlue
Bottom side Polyester Fabric
Thickness 0 mm inch
Hardness Shore hardness
Belt characteristics
Force at 1% elongation 8 N/mm 44.8 lbs/ins
Laterally stable
Noise level (not applicable if blank)
Ambient temperature -10 °C 14 °F
70 158
Max. temperature short -15 °C 5 °F
90 194

Jarulan has very good reputation for good quality products.

If our basket profile pvc belt with low noise fabric caters to your requirement, Welcome to buy high quality low price conveyor belt from our factory. As one of the leading China belt manufacturers and suppliers, we must be your best choice.
