JARULAN Factory Price 2.5mm Petrol Blue PVC Conveyor Belt 2 Ply Polyester Fabric 2000mm Width
JARULAN Factory Price 2.5mm Petrol Blue PVC Conveyor Belt 2 Ply Polyester Fabric 2000mm Width
JARULAN Factory Price 2.5mm Petrol Blue PVC Conveyor Belt 2 Ply Polyester Fabric 2000mm Width
JARULAN Factory Price 2.5mm Petrol Blue PVC Conveyor Belt 2 Ply Polyester Fabric 2000mm Width
JARULAN Factory Price 2.5mm Petrol Blue PVC Conveyor Belt 2 Ply Polyester Fabric 2000mm Width
JARULAN Factory Price 2.5mm Petrol Blue PVC Conveyor Belt 2 Ply Polyester Fabric 2000mm Width
Specifications
MOQ :
50 Square Meters
Maximum Width :
3400 mm
Force at 1% Elongation :
8 N/mm
Price :
USD 8.5-15 / Square Meter
Brand Name :
JARULAN
Place of Origin :
Jiangxi, China
Color :
Petrol Blue
Packaging Details :
Export-grade plywood pallet with waterproof film and plastic wrap
Total Thickness :
2.5 mm
Top Side :
PVC smooth, 0.9mm, 75A Shore
Model Number :
PVC2/5SF2PB AS
Standard Width :
2000 mm
Min Pulley Diameter :
55 mm (normal), 80 mm (back flexing)
Payment Terms :
T/T,L/C,PayPal,Western Union
Weight :
2.8 kg/m2
Temperature Range :
-10 deg C to +80 deg C
Certification :
ISO 9001:2015, FDA 21 CFR 175.300, EU (EC) No. 1935/2004 & (EU) No. 10/2011
Applications :
Agriculture & Horticulture, Tobacco, General Handling
Tension Member :
Polyester Fabric
Delivery Time :
7-15 working days
Fabric Layers :
2 EM
Supply Ability :
50000 Square Meters per Month
Bottom Side :
Polyester Fabric
Article Code :
PVC2/5SF2PB AS
Description

2.5mm Petrol Blue PVC Conveyor Belt - JARULAN Factory Price

Jiangxi Jarulan Industrial Belt Co., Ltd. manufactures the PVC2/5SF2PB AS petrol blue PVC conveyor belt in-house and supplies it directly from the factory at a competitive factory price. With a 2-ply polyester fabric tension member and a smooth 0.9mm PVC top cover (75A Shore), this 2.5mm belt delivers reliable conveying for general handling, agriculture & horticulture, and tobacco processing lines.

Key Features

  • Factory-direct price with no middleman markup
  • 2.5mm total thickness, 75A Shore hardness PVC top cover
  • 2-ply polyester fabric tension member, 8 N/mm force at 1% elongation
  • Standard width 2000mm, maximum width 3400mm
  • Flat conveyor and positive drive capable
  • Antistatic, food-grade FDA/EU, and chemically resistant options available

Technical Specifications

Item Specification
Article Code PVC2/5SF2PB AS
Color Petrol Blue
Tension Member Polyester Fabric
Fabric Layers 2 EM
Total Thickness 2.5 mm
Weight 2.8 kg/m2
Standard / Max Width 2000 mm / 3400 mm
Top Side PVC smooth, 0.9mm, 75A Shore
Bottom Side Polyester Fabric
Force at 1% Elongation 8 N/mm
Min Pulley Diameter 55 mm normal / 80 mm back flexing
Temperature Range -10 deg C to +80 deg C

Applications

Agriculture & horticulture, tobacco handling, and general material handling.

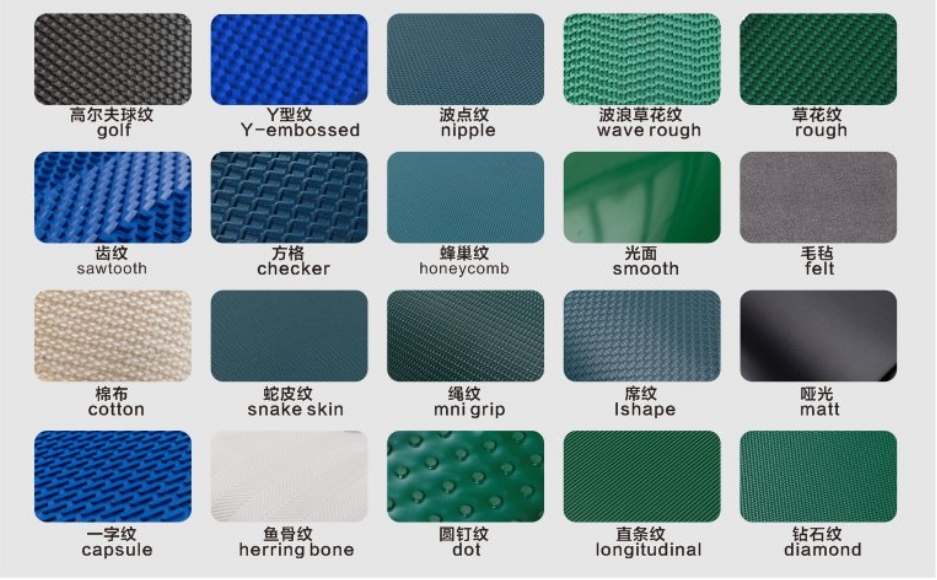

Other PVC / PU Conveyor Belt Patterns to Choose

Other PVC/ PU CONVEYOR BELT PATTERNS TO CHOOSE

JARULAN Factory Price 2.5mm Petrol Blue PVC Conveyor Belt 2 Ply Polyester Fabric 2000mm Width

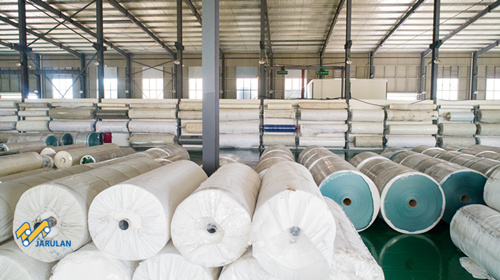

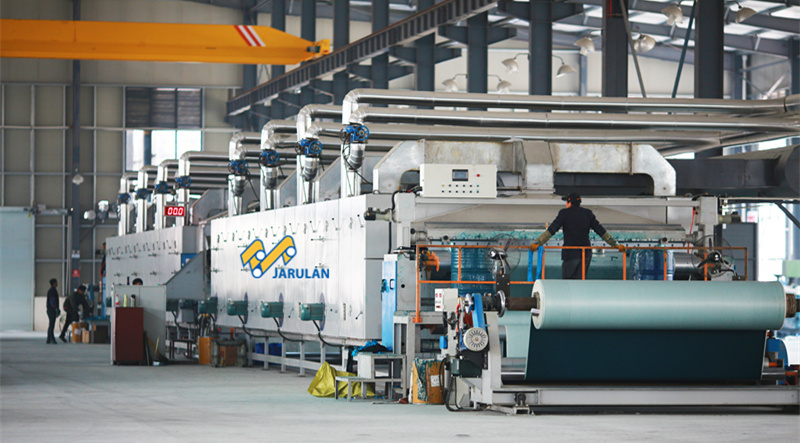

About JARULAN

Jiangxi Jarulan Industrial Belt Co., Ltd. is a professional conveyor belt manufacturer with a factory in Red Lake Industrial Park, Jiujiang City, Jiangxi Province, China. Contact us today for a factory-price quotation.
