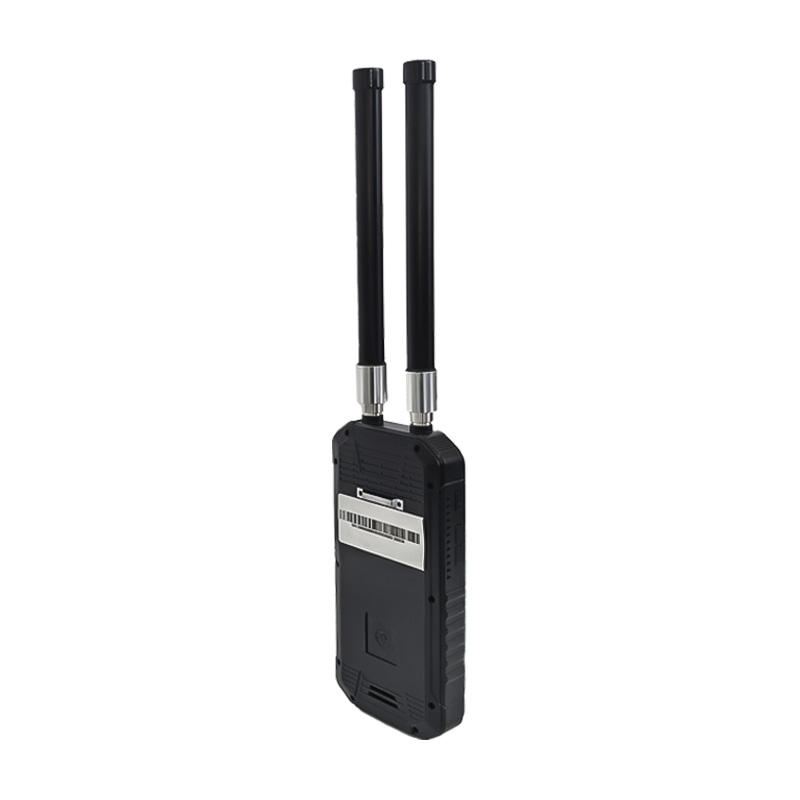

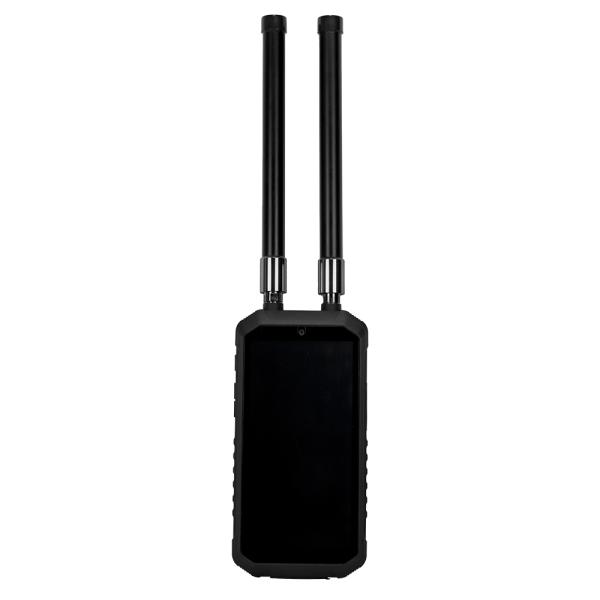

Handheld Portable Drone Detection Device 380W 100MHz-6GHz Bandwidth 1–3km
Handheld Portable Drone Detection Device 380W 100MHz-6GHz Bandwidth 1–3km
Handheld Portable Drone Detection Device 380W 100MHz-6GHz Bandwidth 1–3km
Handheld Portable Drone Detection Device 380W 100MHz-6GHz Bandwidth 1–3km
Handheld Portable Drone Detection Device 380W 100MHz-6GHz Bandwidth 1–3km
Handheld Portable Drone Detection Device 380W 100MHz-6GHz Bandwidth 1–3km
Handheld Portable Drone Detection Device 380W 100MHz-6GHz Bandwidth 1–3km
Handheld Portable Drone Detection Device 380W 100MHz-6GHz Bandwidth 1–3km
Specifications
Brand Name :
TTSK
Model Number :
TTSKL03
Place of Origin :
China
MOQ :
1
Price :
3800
Payment Terms :
T/T
Supply Ability :
5000
Delivery Time :
5-8 work days
Packaging Details :

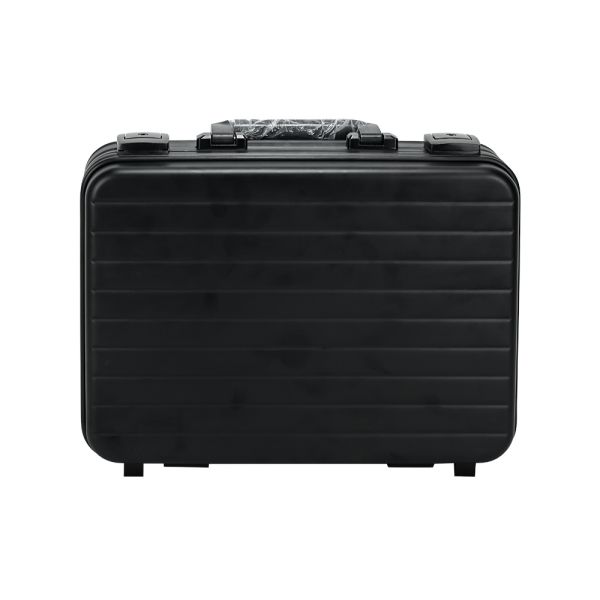

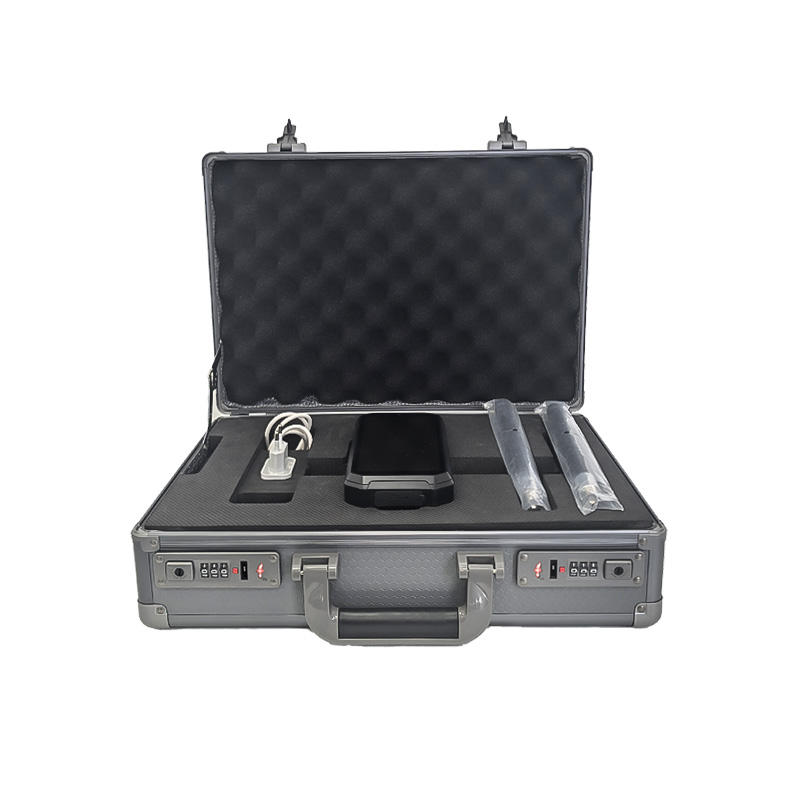

Packing: aviation transportation plastic box
Description
Portable Handheld Drone Detection Device with 380W Total Output Power and 100MHz – 6GHz Bandwidth for 1–3km Positioning Range
15W Total Output Power UAV
Compatible with

900MHz, 1.2MHz, 2.4GHz, 5.8GHz, WiFi；

DC9V,12000mAh Battery
Product Description

Advanced UAV detector and locator system with 100MHz-6000Hz frequency band detection for comprehensive drone safety and security. The system features passive detection with pilot positioning capability and IP54 environmental protection rating.

Handheld Portable Drone Detection Device 380W 100MHz-6GHz Bandwidth 1–3km
Specifications
Product Performance - Detecting Mode
NO. ITEM Technical parameter
1 Work pattern passive detection
2 Work frequency 900MHz, 1.2MHz, 2.4GHz, 5.8GHz, WiFi
3 Detection and identify UAV type DJI OC protocol models, Mavlink protocol, Parrot, TBS CrossFire and other brands
4 Detection range 0~3000m (urban environment, tested by DJI AIR2 target)
5 Positioning Range 1-2 km (urban environment)
6 Recognition time ≤2s
7 False alarm rate 1 time / day
8 Capacity of discernment The number of drones that can be simultaneously detected and identified ≥ 10 (5 manufacturers)
Technical Specifications
  • Total output power: 380W
  • Power consumption: 900W
  • Power supply: AC90-260V, DC24-28V
  • Main engine weight: 12Kg (Manpack 10KG, Antenna 1.5KG, Control Box 0.3KG)
  • Size: 520*400*230mm
  • With omni antenna 8 pcs
  • Jammer Module Number: 8
  • Cooling System: Systematic Smart Cooling System
  • Jamming Source: Noise Technology
  • Humidity: 30%-95%
  • Running temperature: -20℃ to +60℃
  • Inside battery working 1.5h: 24V,25AH
  • Battery charger: 5A (Open the external switch to charge, automatically manage the charging current, full automatically disconnect)
  • Jamming Range: 800-1500m
  • External Remote control Panel: shows the battery voltage, can switch on/off each band
Product Images
Handheld Portable Drone Detection Device 380W 100MHz-6GHz Bandwidth 1–3km


Handheld Portable Drone Detection Device 380W 100MHz-6GHz Bandwidth 1–3kmHandheld Portable Drone Detection Device 380W 100MHz-6GHz Bandwidth 1–3km
Handheld Portable Drone Detection Device 380W 100MHz-6GHz Bandwidth 1–3km
Handheld Portable Drone Detection Device 380W 100MHz-6GHz Bandwidth 1–3km
Frequently Asked Questions
1. How long is the production lead time?
The production lead time varies depending on the product and order quantity. Generally, it takes around 7-15 days after receiving the deposit. Please contact us for more accurate information based on your order.
2. Can I customize the product?
Yes, power and frequency band can be customized according to your needs. Please contact us with your specific requirements.
3. What is your payment term?
We accept various payment methods, including T/T (Telegraphic Transfer), PayPal. Payment terms are typically 30% deposit and 70% balance before shipment.
4. How do you ensure product quality?
We have a strict quality control process, including raw material inspection, in-production checks, and final quality inspections before shipment.
5. What shipping methods are available?
We offer multiple shipping options, including sea freight, air freight, and express courier (DHL, FedEx, UPS, etc.). We will recommend the most suitable method based on your order quantity and destination.
6. Can I track my order?
Yes, we will provide you with a tracking number once your order is shipped. You can use this number to track your order through the carrier's website.
7. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including technical assistance and warranty services. Please contact our customer service team for any issues related to your order.
