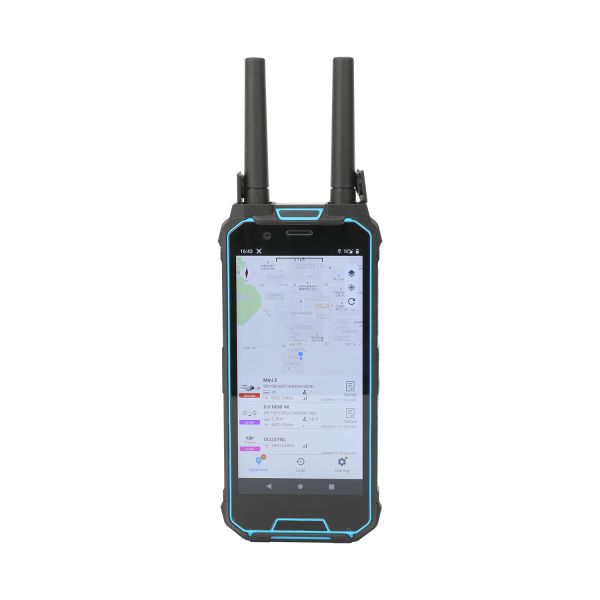

Handheld Drone Detector With 100MHz-6GHz 1-3KM Detection Radius 8000mAh Battery
Handheld Drone Detector With 100MHz-6GHz 1-3KM Detection Radius 8000mAh Battery
Handheld Drone Detector With 100MHz-6GHz 1-3KM Detection Radius 8000mAh Battery
Handheld Drone Detector With 100MHz-6GHz 1-3KM Detection Radius 8000mAh Battery
Handheld Drone Detector With 100MHz-6GHz 1-3KM Detection Radius 8000mAh Battery
Handheld Drone Detector With 100MHz-6GHz 1-3KM Detection Radius 8000mAh Battery
Specifications
Brand Name :
ttsk
Model Number :
ttskL03
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Price :
$3600-4000
Supply Ability :
100pcs within 14days
Delivery Time :
5-8 work day
Detection frequency band :
100MHz～6GHz
Detection radius :
1-3KM
Battery capacity :
8000mAh
Simultaneous detection capacity :
≥10 drones
Operation time :
3 hours (with original charger)
Host dimensions :
185*80*33mm (±5mm)
Weight :
650±10g (without antenna)
Description
Handheld Drone Detector with 100MHz～6GHz Detection Frequency Band, 1-3KM Detection Radius, and 8000mAh Battery Capacity
H2L Handheld Drone Detection for Drone Defense System: 100M-6GHz Full Bands, Pilot Positioning & UAVs Positioning, Compatible with DJI, AUTEL, FPV etc.
Technical Specifications
Performance Indicators
Item Performance Index Parameters
1 Detection frequency band 100MHz～6GHz
2 Detection radius 1.5-2km (urban) / 2-3km (open area)
3 Response time 3-5 seconds
4 Positioning range 1-2km (urban) / 2-3km (open area)
5 Simultaneous detection capacity ≥10 drones
6 Operation time 3-4 hours
Mechanical Parameters
Item Performance Index Parameters
1 Host dimensions 185*80*33mm (±5mm)
2 Weight 650±10g (without antenna)
Electrical Characteristics
Item Performance Index Parameters
1 Battery capacity 8000mAh (built-in lithium)
2 Operation time 4-6 hours (20% screen brightness at 25°C)
3 Charging time ~3 hours (with original charger)
Environmental Specifications
Item Performance Index Parameters
1 Operating temperature -25°C to 40°C
2 Storage temperature -35°C to 40°C
Key Features
  • UAV Positioning: Locates drone positions displayed as icons on electronic maps
  • Pilot Positioning: Tracks remote controller locations shown as control icons
  • Detection & Identification: Recognizes DJI, Dow Tong, and other common models plus custom-built drones
  • FPV Detection: Identifies custom drones and analyzes first-person view flight footage
  • Operator Navigation: Plans search routes for drone operators with one-click navigation
  • Unique Identification: Captures serial numbers for DJI, RID protocol, and WiFi drones
  • Trajectory Tracking: Displays multiple flight paths on electronic maps
  • Multidimensional Monitoring: Shows real-time drone model, location, speed, altitude, and pilot position
  • Whitelist Management: Filters recognized friendly drones
  • RID Monitoring: Supports multiple standard remote ID protocols
  • Intrusion Alerts: Audible and vibration alarms for detected drone threats
  • Flight Playback: Reviews historical flight data for security analysis
  • Detection Records: Stores comprehensive detection logs including serial numbers and frequencies
  • Data Visualization: Presents detection statistics through graphical interfaces
  • Network Intercom (Optional): Supports device networking and real-time communication
Handheld Drone Detector With 100MHz-6GHz 1-3KM Detection Radius 8000mAh Battery
Frequently Asked Questions

1.What is the typical production cycle?

The production cycle differs based on the specific product type and the total order volume. Usually, it takes about 7 to 15 days once we receive the advance payment. For a more precise timeline tailored to your order details, feel free to get in touch with us.

2.Is product customization available?

Certainly, we support customization of product parameters such as power output and frequency range to meet your specific demands. Please reach out to us and provide your detailed requirements for further discussion.

3.What payment terms do you offer?

We accommodate several payment methods, including Telegraphic Transfer (T/T) and PayPal. Our standard payment terms usually involve a 30% advance deposit and the remaining 70% balance to be settled before the goods are shipped.

4.How do you guarantee product quality?

We implement a rigorous quality management system covering three key stages: inspection of incoming raw materials, quality checks during the production process, and a final thorough inspection prior to shipment, ensuring each product meets our quality standards.

5.What shipping options can I choose from?

We provide a range of shipping solutions, including ocean freight, air freight, and international express services (such as DHL, FedEx, UPS, Meest ,etc.). Our team will suggest the most appropriate shipping method based on the size of your order and the destination country/region.

6.Do you offer after-sales support?

Yes, we provide 1 year after-sales service, which includes technical guidance and warranty coverage for our products. If you encounter any problems with your purchased products, please contact our customer support team for assistance.
