CAT8 FFTP LSZH Cable 2000MHz for Data Centers 5G Base Stations Industrial Networks
CAT8 FFTP LSZH Cable 2000MHz for Data Centers 5G Base Stations Industrial Networks
CAT8 FFTP LSZH Cable 2000MHz for Data Centers 5G Base Stations Industrial Networks
CAT8 FFTP LSZH Cable 2000MHz for Data Centers 5G Base Stations Industrial Networks
CAT8 FFTP LSZH Cable 2000MHz for Data Centers 5G Base Stations Industrial Networks
CAT8 FFTP LSZH Cable 2000MHz for Data Centers 5G Base Stations Industrial Networks
Specifications
Brand Name :
ITI -LINK
Model Number :
ITI-CTF8-013
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Place of Origin :
ShenZhen
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Delivery Time :
15-45 Days
Packaging Details :
Outer box size (for packing): 40X40X26CM
Cable Type :
Ethernet
Color :
Purple
Jacket Material :
LSZH
Bandwidth :
2000MHz
Shielding :
FFTP
Cable Length :
100M
Cable Category :
CAT8
Conductor Gauge :
22 AWG
Description

CAT8 FFTP LSZH Cable 2000MHz for Data Centers 5G Base Stations Industrial Networks





Product Description:


The INTEGRITY ITI-CTF8-013 CAT8 FFTP Ethernet cable is engineered for mission-critical networking in data centers, 5G base stations, and industrial automation environments. With a 2000MHz bandwidth and 40Gbps short-link capability, this FFTP CAT8 cable ensures ultra-low latency and future-proof capacity. Double shielding (pair foil and overall shield) protects against EMI and crosstalk, while solid oxygen-free copper conductors maintain low attenuation and reliable signal transmission. Its LSZH jacket enhances safety in enclosed spaces, and the durable purple PVC/PE outer layer improves identification and resists wear. Factory-tested for performance, the ITI-CTF8-013 is the trusted choice for high-speed, shielded networking applications.

Bullet Points

  1. Ultra-High-Speed CAT8 FFTP – Supports up to 2000MHz bandwidth and 40Gbps short-distance links, ideal for data centers, 5G backhaul, and high-density server racks.

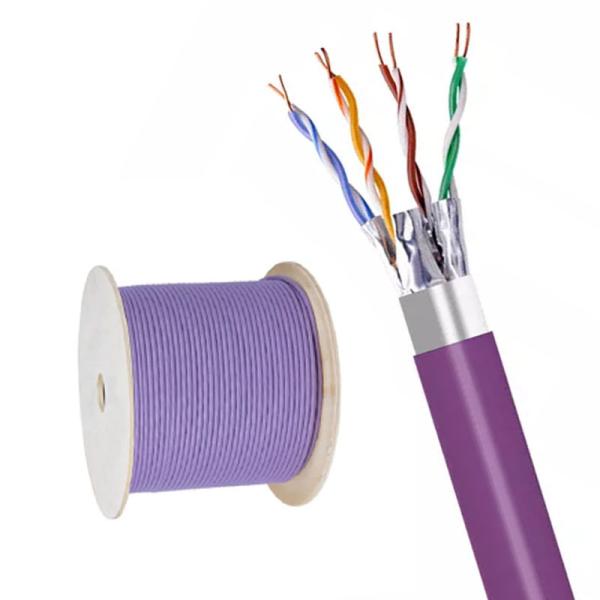

  2. Double Shielding Design – FFTP construction with pair foil plus overall shield minimizes EMI and crosstalk, ensuring stable, interference-free transmission.

  3. Solid Oxygen-Free Copper Conductors – Reduces attenuation and delivers consistent signal quality for long-term network performance.

  4. LSZH Safety Jacket – Low smoke zero halogen outer layer meets strict safety standards, suitable for enclosed spaces and public infrastructure.

  5. Durable Purple PVC/PE Jacket – Highly visible for quick cable identification, abrasion-resistant, and factory-tested for attenuation, NEXT, and return loss.

Technical Parameters:


Product Description:CAT8 FFTP LSZH Cable 2000MHz for Data Centers 5G Base Stations Industrial Networks
Rev.: A ECN Description:
Construction Item Description Electrical Property


Conductor


Material

Bare Solid Copper(elongation:

19-24%)

 Conductor Resistance at 20°C ≤ 5.6 Ω / 100m
OD 22 AWG Resistance unbalance within a pair ≤ 0.2%






Insulation

 Material PE Skin-Foam-Skin Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V


>1500 MΩ / 100m
OD 1.62 ±0.01 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.50 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m



Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω

2p: white + 2 orange stripes &

orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min


No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown



insulation

 elongation before aging ≥ 200%



Pair Twist



Lay & Direction

 1p: S=19.0 mm (28%) tensile strength before aging ≥10 MPa
2p: S=23.5 mm (31%) elongation after aging ≥ 150%
3p: S=21.5 mm (33%) tensile strength after aging ≥8 MPa
4p: S=25.0 mm (36%)



jacket

 elongation before aging ≥ 125 %
OD / tensile strength before aging ≥ 10 MPa


Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥ 100 %
Direction according to the drawing tensile strength after aging ≥ 8 MPa
OD / Packing


Filler

 Ripcord / NA NA
Drain Wire /



Pair Shield

 Shield Pair Shield



Construction /
Material Polyester/Aluminium (PET/ALU)
Coverage ≥ 200%


Braid

 Material AL-MG
Coverage ≥ 40%





Jacket

 Material LSZH, 60P, -20~75℃
Hardness 81± 3
OD 8.6 ± 0.2
Average THK 0.65


Color

 White
Marking Color black
Marking

according to the customer's

requirements


CAT8 FFTP LSZH Cable 2000MHz for Data Centers 5G Base Stations Industrial Networks





Applications:

  • Telecom central offices and equipment rooms choose ITI-CTF8-013 CAT8 FFTP for certified 2000MHz performance

  • Test labs AI GPU clusters and HPC nodes use FFTP CAT8 for ultra fast short links

  • AV over IP and professional broadcast systems leverage CAT8 FFTP low latency links

  • Campus and building backbone where LSZH jacket is required for safety compliance


CAT8 FFTP LSZH Cable 2000MHz for Data Centers 5G Base Stations Industrial Networks
