Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CTF8-018
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Place of Origin :
SHENZHEN
MOQ :
1000pcs
Price :
$50-$100
Payment Terms :
T/T
Supply Ability :
800pcs/day
Delivery Time :
15-45 Days
Conductor Gauge :
22AWG
Cable Category :
CAT8
Shielding :
FTP
Jacket Color :
Blue
Jacket Material :
PVC
Conductor Material :
Copper
Length :
1000ft
Bandwidth :
2000 MHz
Description

CAT8 FFTP Shielded Blue 22AWG 2000MHz 40Gbps Ethernet Cable 1000FT

Product Description:

  1. 2000 MHz ultra high bandwidth for maximum throughput and minimal latency.

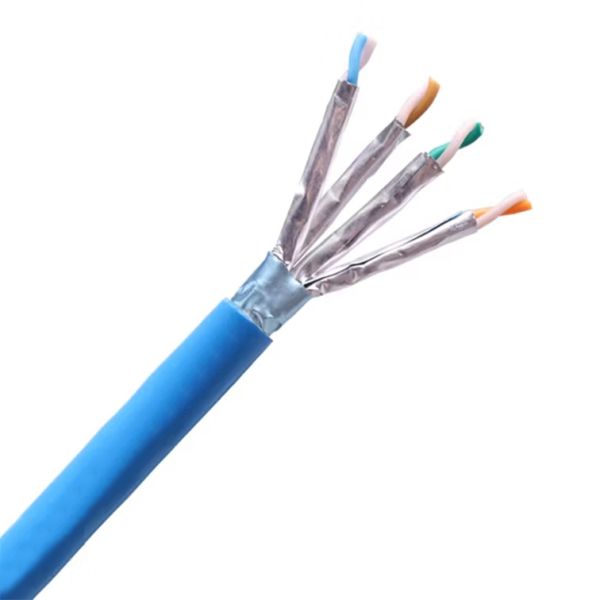

  2. F/FTP foiled twisted pair shielding for exceptional EMI and crosstalk protection.
  3. 22AWG solid oxygen free copper conductors for superior conductivity and durability.
  4. Durable blue PVC PE jacket with LSZH low smoke halogen free option for safer installs.

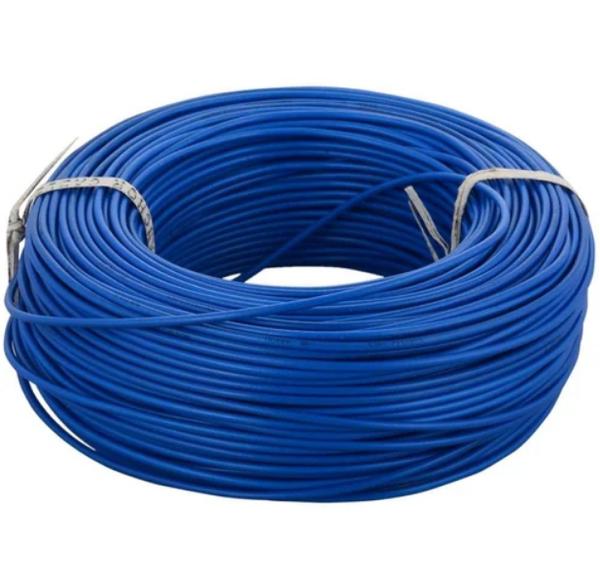

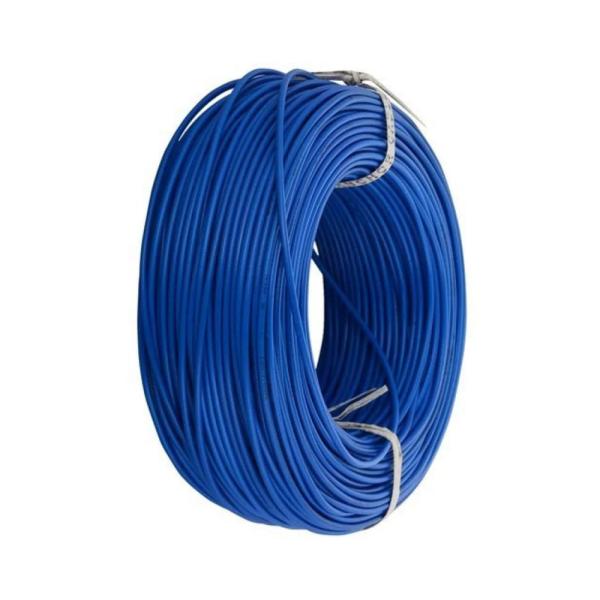

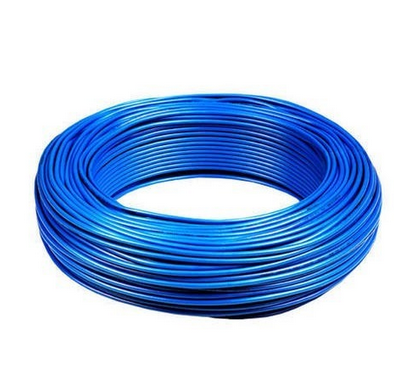

  5. 305m 1000ft spool length ideal for data centers industrial sites and large deployments.
  6. Backward compatible with Cat5 Cat5e Cat6 and Cat7 for seamless upgrades.
  7. Designed for 40Gbps ready networks high density racks and 5G base station backhaul Product description.


The ITI-LINK ITI-CTF8-018 is a premium CAT8 FFTP Ethernet cable engineered for mission critical environments. This FFTP CAT8 cable delivers 2000 MHz performance enabling ultra low latency high bandwidth connections ideal for data centers server rooms and professional network installations. FFTP CAT8 shielding combined with 22AWG solid copper conductors ensures consistent signal integrity and minimizes EMI and crosstalk across long runs. The blue jacket is rugged and available in LSZH for installations that demand low smoke and halogen free safety. Whether you need bulk length for wholesale runs or a dependable cable for industrial 5G and power telecom applications this CAT8 FFTP cable offers an optimal balance of speed durability and safety. Compatible with prior standards Cat5 Cat5e Cat6 and Cat7 this FFTP CAT8 cable integrates easily into existing deployments and supports high density 40Gbps switching and server environments.

Technical Parameters:

Product Description:

Shielded CAT8 Cable 22AWG FFTP 2000MHz Industrial LSZH Ready 1000FT

Rev.: A ECN Description:
Construction Item Description Electrical Property


Conductor


Material

Bare Solid Copper(elongation:

19-24%)

Conductor Resistance at 20°C ≤ 5.6 Ω / 100m
OD 22 AWG Resistance unbalance within a pair ≤ 0.2%






Insulation

Material PE Skin-Foam-Skin Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V


>1500 MΩ / 100m

OD 1.62 ±0.01 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.50 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m



Color

1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω

2p: white + 2 orange stripes &

orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min


No breakdown

3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown



insulation

elongation before aging ≥ 200%



Pair Twist



Lay & Direction

1p: S=19.0 mm (28%) tensile strength before aging ≥10 MPa
2p: S=23.5 mm (31%) elongation after aging ≥ 150%
3p: S=21.5 mm (33%) tensile strength after aging ≥8 MPa
4p: S=25.0 mm (36%)



jacket

elongation before aging ≥ 150 %
OD / tensile strength before aging ≥ 13.5 MPa


Inner Assemble

Lay S=90 ± 5 mm elongation after aging ≥ 125 %
Direction according to the drawing tensile strength after aging ≥ 12.5 MPa
OD / Packing


Filler

Ripcord / NA NA
Drain Wire /



Pair Shield

Shield Pair Shield



Construction /
Material Polyester/Aluminium (PET/ALU)
Coverage ≥ 200%


Braid

Material AL-MG
Coverage ≥ 40%





Jacket

Material PVC, 50P, -20~75℃
Hardness 81± 3
OD 8.6 ± 0.2
Average THK 0.65


Color

Blue
Marking Color black
Marking

according to the customer's

requirements



Applications:

  • Enterprise backbone and rack to rack cabling for ultra low latency CAT8 FFTP performance.
  • High density networking and switching rooms using FFTP CAT8 cable to maintain signal integrity across long runs.
  • Broadcast and media studios where CAT8 FFTP supports large simultaneous data streams with minimal interference.
