Toyota GD Series Engine Overhaul Gasket Kit 04111-0E010 - Complete Sealing Solution for 15.6:1 Compression with SiRPA Piston Support
Toyota GD Series Engine Overhaul Gasket Kit 04111-0E010 - Complete Sealing Solution for 15.6:1 Compression with SiRPA Piston Support
Toyota GD Series Engine Overhaul Gasket Kit 04111-0E010 - Complete Sealing Solution for 15.6:1 Compression with SiRPA Piston Support
Toyota GD Series Engine Overhaul Gasket Kit 04111-0E010 - Complete Sealing Solution for 15.6:1 Compression with SiRPA Piston Support
Specifications
Certification :
ISO/TS16949
Engine Compatibility :
Toyota 1GD-FTV (2.8L), 2GD-FTV (2.4L) common rail turbo-diesel
OEM Part Number :
04111-0E010, 04111-0E020, 04111-0E040
Brand Name :
YIMI
Place of Origin :
China
Packaging Details :
Neutral Package or as customers’ request
Thermal Efficiency :
44%
Delivery Time :
5-8 Work Days
Supply Ability :
10000 pcs/month
Torque Output :
450 Nm (1GD-FTV), 400 Nm (2GD-FTV)
MOQ :
5 pcs
Model Number :
Toyota Hilux Fortuner Innova 1GD-FTV 2GD-FTV
Compression Ratio :
15.6 : 1
Engine Weight :
270–300 kg
Piston Coating :
SiRPA (silica-reinforced porous anodised aluminium)
Payment Terms :
T/T,Western Union
Price :
Negotiable
Cooling Loss Reduction :
30%
Description

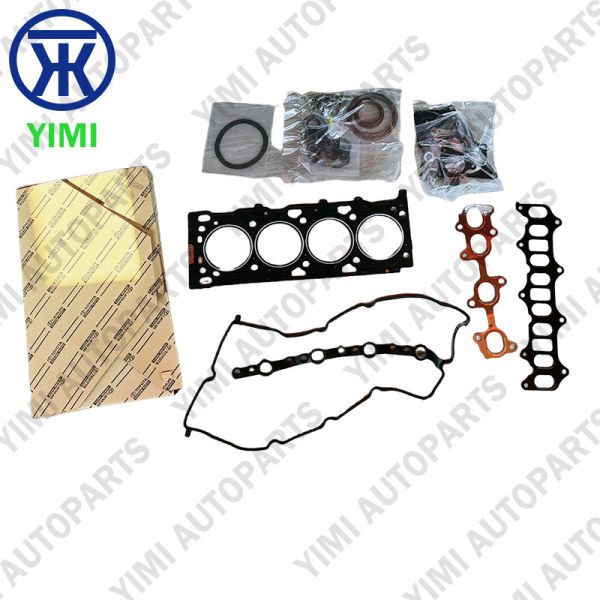

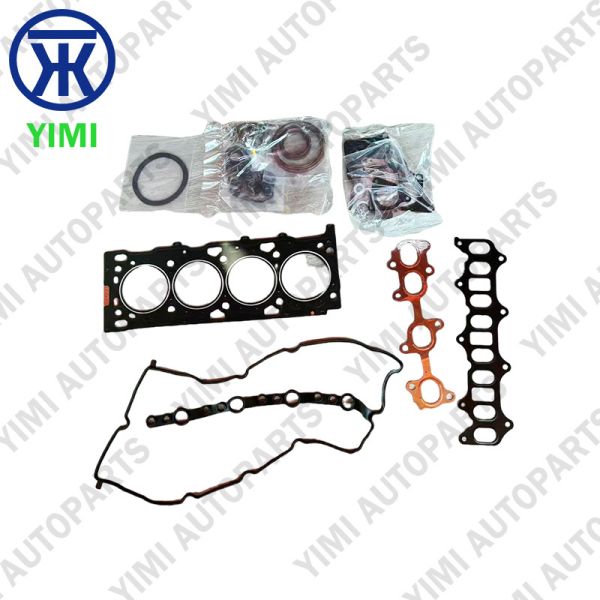

Engine Overhaul Gasket Kit 04111-0E010
Complete sealing solution for Toyota GD series diesel engines - specifically the 1GD-FTV 2.8L and 2GD-FTV 2.4L four-cylinder common rail turbo-diesels. Direct replacement for factory sealing components in popular Toyota commercial vehicles including Hilux (N80/AN120), Fortuner (AN150/AN160), Innova, Hiace, and Land Cruiser Prado models produced from 2015 onward.
Toyota GD Series Engine Overhaul Gasket Kit 04111-0E010 - Complete Sealing Solution for 15.6:1 Compression with SiRPA Piston Support
Part Number: 04111-0E010 Product Name: Engine Overhaul Gasket Kit
Car Model: Toyota Hilux Fortuner Innova Engine Model: Toyota 1GD-FTV 2GD-FTV
Condition: 100% Brand New Origin: China Mainland
Main Market: Middle East, Asia, Africa, South America, North America & Europe
Applications
This gasket kit directly replaces factory sealing components in the following configurations:
Chassis / Model Series Engine Years Markets
Toyota Hilux N80 / AN120 (Mk8) 1GD-FTV / 2GD-FTV 2015-2025 Global
Toyota Fortuner AN150 / AN160 (II) 1GD-FTV / 2GD-FTV 2015-2025 Asia, Australia, South Africa, Middle East
Toyota Innova AN140 1GD-FTV / 2GD-FTV 2015-2022 Asia
Toyota Hiace H300 1GD-FTV / 2GD-FTV 2019-present Global commercial van
Features & Benefits
  • Complete Sealing Solution: Includes every sealing component required for comprehensive engine overhaul
  • Engineered for 15.6:1 Compression Ratio: Withstands extreme cylinder pressures while maintaining perfect seal
  • Supports SiRPA Piston Technology: Preserves engine's class-leading 44% thermal efficiency
  • Complete Fitment Coverage: Fits both 1GD-FTV and 2GD-FTV engines across multiple vehicle platforms
  • ISO 9001 / IATF 16949 Certified: Manufactured under highest automotive quality standards
Quality Control
QC Item Verification Method
Gasket material integrity Visual and dimensional inspection
Gasket thickness Precision measurement per batch
Fire ring alignment Laser or CMM inspection
Full kit completeness 100% manual verification against OE component list
⚠️ IMPORTANT: The 1GD-FTV and 2GD-FTV engines use torque-to-yield (stretch) cylinder head bolts. These are single-use fasteners and must be replaced with new bolts whenever the cylinder head is removed.
Installation Recommendations
  • Always replace cylinder head bolts with new genuine-spec bolts
  • Check cylinder head and block surfaces for warpage
  • Clean and chase all bolt holes in cylinder block
  • Follow exact torque-plus-angle procedure in factory sequence
  • Replace coolant with Toyota Super Long Life Coolant (SLLC)
Note: Toyota offers replacement cylinder head gaskets in multiple thicknesses. Verify required head gasket thickness matches specific engine specifications before installation.
Packaging & Supply
Individual packaging: Sealed in anti-static VCI bag, foam-lined carton
Carton dimensions: Approximately 55 × 40 × 5 cm
Net weight: Approximately 2.5-3.5 kg
Lead time: 3-7 working days for stock orders
Minimum order quantity: 1 piece
