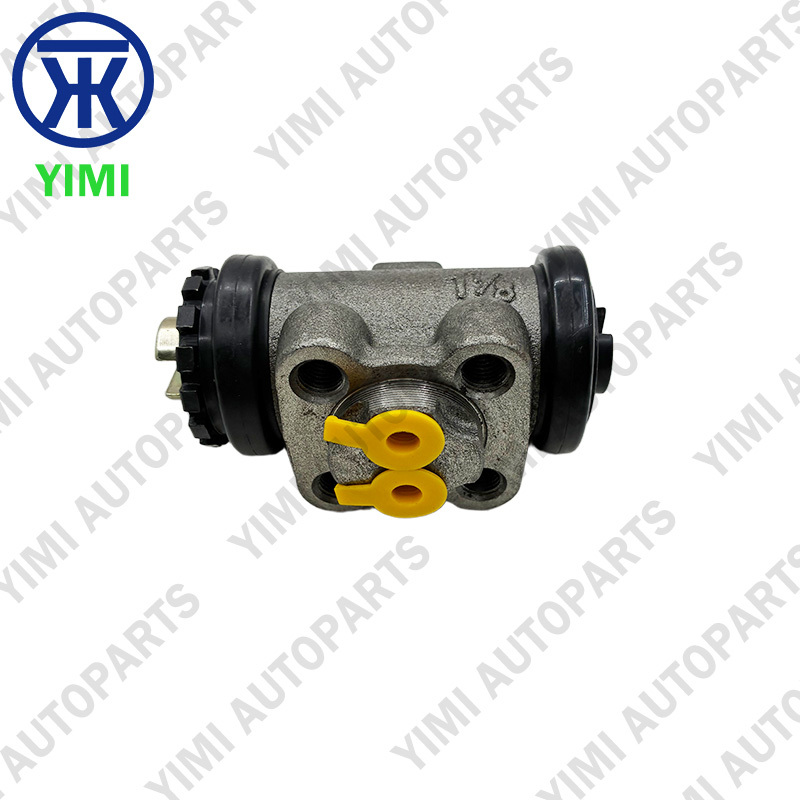

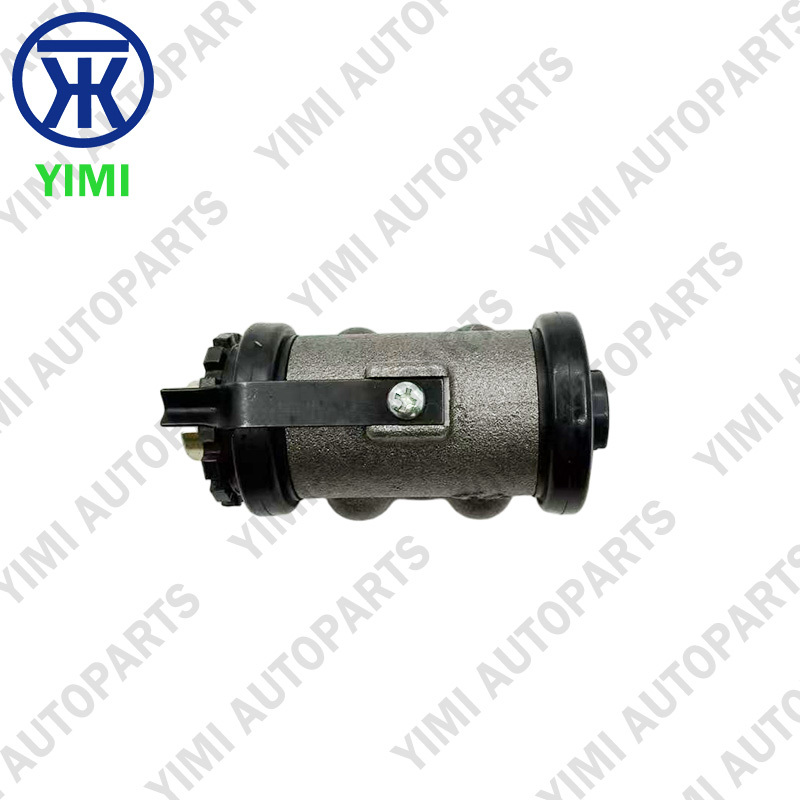

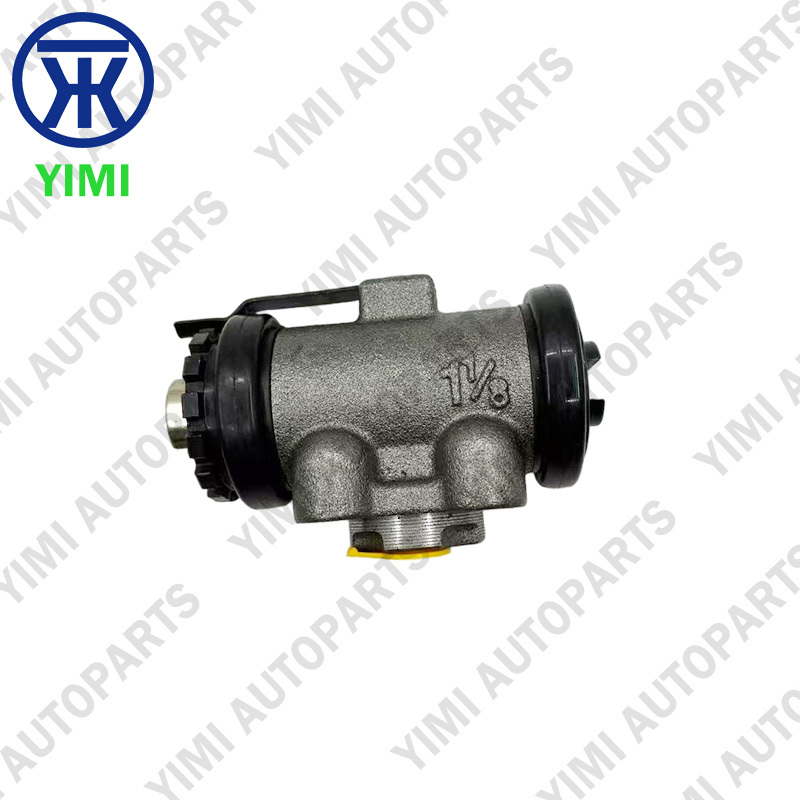

Rear Brake Wheel Cylinder MB060308 MB-060308 For Mitsubishi Canter T210/PS100 FC/FE Series — OEM Left Rear Cast Iron 1-1/8 Bore Drum Brake Cylinder
Rear Brake Wheel Cylinder MB060308 MB-060308 For Mitsubishi Canter T210/PS100 FC/FE Series — OEM Left Rear Cast Iron 1-1/8 Bore Drum Brake Cylinder
Rear Brake Wheel Cylinder MB060308 MB-060308 For Mitsubishi Canter T210/PS100 FC/FE Series — OEM Left Rear Cast Iron 1-1/8 Bore Drum Brake Cylinder
Rear Brake Wheel Cylinder MB060308 MB-060308 For Mitsubishi Canter T210/PS100 FC/FE Series — OEM Left Rear Cast Iron 1-1/8 Bore Drum Brake Cylinder
Rear Brake Wheel Cylinder MB060308 MB-060308 For Mitsubishi Canter T210/PS100 FC/FE Series — OEM Left Rear Cast Iron 1-1/8 Bore Drum Brake Cylinder
Rear Brake Wheel Cylinder MB060308 MB-060308 For Mitsubishi Canter T210/PS100 FC/FE Series — OEM Left Rear Cast Iron 1-1/8 Bore Drum Brake Cylinder
Rear Brake Wheel Cylinder MB060308 MB-060308 For Mitsubishi Canter T210/PS100 FC/FE Series — OEM Left Rear Cast Iron 1-1/8 Bore Drum Brake Cylinder
Rear Brake Wheel Cylinder MB060308 MB-060308 For Mitsubishi Canter T210/PS100 FC/FE Series — OEM Left Rear Cast Iron 1-1/8 Bore Drum Brake Cylinder
Specifications
Model Number :
Mitsubishi Canter T210/PS100 FC/FE Series
Condition :
Brand New — 100% quality inspected
MOQ :
10 pcs
Delivery Time :
5-8 Work Days
Material :
High-Grade Cast Iron
Price :
Negotiable
Fitting Position :
Rear Axle, Left Hand (LH)
Certifiion :
ISO/TS16949
Vehicle Compatibility :
Mitsubishi Canter T210/PS100
Payment Terms :
T/T
Part Name :
Brake Wheel Cylinder / Rear Wheel Cylinder
Fitted Diameter :
31.9 mm
Bore Diameter :
1-1/8″ (28.58mm / 28.6mm)
Supply Ability :
10000 pcs/month
OEM Part Number :
MB060308 / MB-060308
Weight :
Approx. 0.87 kg / 2.0 lbs
Place of Origin :
China
Bleeder Screw :
Not Included
Brand Name :
YIMI
Warranty :
12 Months
Packaging Details :
Neutral Package or as customers’ request
Chassis Compatibility :
FC302, FC312, FC332, FC432, FC633, FE515, FE535, FE79#
Production Years :
1973–1995
Description
Rear Brake Wheel Cylinder MB060308 MB-060308 For Mitsubishi Canter T210/PS100 FC/FE Series
Product Overview

The Rear Brake Wheel Cylinder with OEM numbers MB060308 and MB-060308 is a verified OEM-grade direct replacement for Mitsubishi Canter light-duty trucks and compatible PS100 series vehicles. This critical component converts hydraulic pressure from the brake master cylinder into mechanical force, pushing the brake shoes against the drum to provide safe and reliable stopping power.

Important Fitment Note: Part number MB060308 is the Rear Left-Hand (LH) wheel cylinder. The matching Rear Right-Hand (RH) counterpart is MB060309. For balanced braking performance, it is strongly recommended to replace brake wheel cylinders in pairs (both rear wheels).
Part Number: MB060308 MB-060308
Car Model: Mitsubishi Canter T210/PS100 FC/FE Series
Condition: 100% Brand New
Material: High-grade cast iron
Rear Brake Wheel Cylinder MB060308 MB-060308 For Mitsubishi Canter T210/PS100 FC/FE Series — OEM Left Rear Cast Iron 1-1/8
Failure Symptoms

If your rear brake wheel cylinder is failing, you may experience one or more of the following symptoms:

  • Brake Fluid Leakage: Visible fluid seeping from the rear wheels or inside the brake drum
  • Soft or Spongy Brake Pedal: Pedal feels unusually soft or goes to the floor
  • Reduced Braking Performance: Vehicle takes longer to stop or requires increased pedal pressure
  • Uneven Braking: Vehicle pulls to one side during braking
  • Contaminated Brake Shoes: Brake fluid soaking into the brake shoes, causing reduced friction
A failing brake wheel cylinder can lead to reduced braking performance and potential brake failure — prompt replacement is essential.
Vehicle Compatibility
Brand Model Chassis / Series Years
Mitsubishi Canter T210 1993-1996
Mitsubishi Canter PS100 1973-1995
Mitsubishi Canter FC302, FC312, FC332, FC432, FC633 1973-1995
Mitsubishi Canter FE515, FE535, FE79# 1973-1995
Important: This brake wheel cylinder is specifically for the Rear Left-Hand (LH) position. The Rear Right-Hand (RH) counterpart is MB060309. Bleeder screw is NOT included — must be transferred from the old cylinder or purchased separately.
Features & Benefits
OEM Specifiion
Guarantees factory-fit quality and performance — verified by OEM part numbers
Precision 1-1/8″ Bore
Delivers consistent hydraulic pressure for reliable braking performance
High-Grade Cast Iron
Provides exceptional durability and heat dissipation under demanding conditions
Corrosion-Resistant Coating
Ensures long-lasting durability in harsh automotive environments
CE-Certified Quality
Meets stringent safety and quality standards for automotive components
100% Pressure Tested
Guarantees dependable operation and leak-free performance
Quality Control
QC Item Verifiion Method
Dimensional Accuracy Precision inspection to verify 1-1/8″ bore diameter and mounting specifiions
Material Composition Cast iron analysis to verify structural integrity and heat dissipation
Leakage Test 100% hydraulic pressure test to guarantee zero fluid leakage
Durability Cycle Test 500+ hour fatigue testing to verify long-term reliability
Final Assembly Inspection 100% visual and functional inspection before packaging
Installation & Maintenance
Professional Installation Recommended: Replacing brake wheel cylinders is a critical safety procedure.
Pre-Installation Checklist
  • Safely raise the vehicle and support it on jack stands
  • Remove the rear wheels and brake drums
  • This is the Rear Left (LH) cylinder — the RH counterpart is MB060309
  • Bleeder screw is NOT included — transfer the old bleeder screw or purchase new
  • Inspect brake shoes, drums, and hardware for wear
  • Use new brake fluid (DOT 3 or DOT 4) from sealed container
  • Replace wheel cylinders in pairs for balanced braking performance
Maintenance Schedule
  • Inspection: Every 50,000 km / 12 months
  • Fluid Replacement: Every 2 years or 40,000 km
  • Replacement: Immediately if failure symptoms appear
Packaging & Supply
  • Packaging: Protective packaging to prevent shipping damage
  • Package Contents: 1 Brake Wheel Cylinder (Bleeder screw not included)
  • Suitable for: Wholesale distributors, truck parts retailers, commercial vehicle repair shops, and fleet owners
