ITX-Z3588 Intelligent Industrial Computing Motherboard

Overview

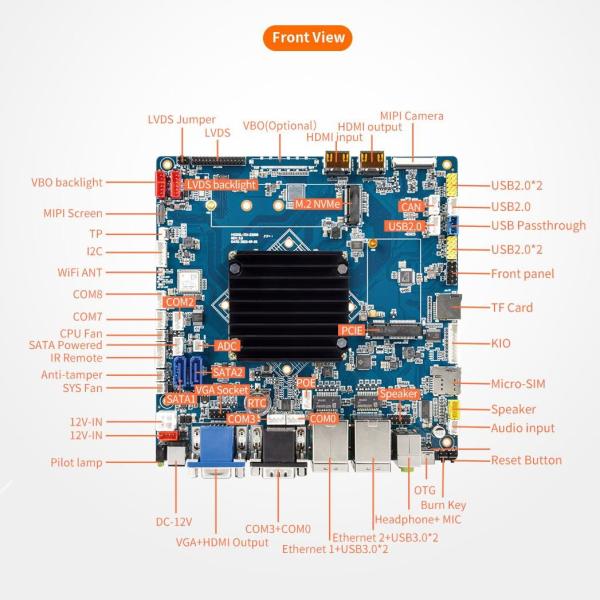

The ITX-Z3588 Intelligent Industrial Computing Motherboard delivers flagship AI performance in a standard Mini-ITX form factor (170mm × 170mm), offering seamless compatibility with X86 chassis for easy integration into industrial systems. Powered by the Rockchip RK3588 octa-core processor (quad Cortex-A76 @ 2.4GHz + quad Cortex-A55) with a built-in 6 TOPS NPU, this board handles the most demanding AI models with ease — from object detection and face recognition to complex neural networks. The ITX-Z3588 features 2× isolated DB-9 serial ports, 2× SATA 3.0 ports, M.2 PCIe NVMe SSD support, and 2× Gigabit Ethernet with PoE for industrial-grade connectivity. Display capabilities are unmatched with dual HDMI 2.1 outputs up to 8K, LVDS, MIPI-DSI, VGA, optional VBO (4K), and HDMI input — supporting triple independent displays. Additional features include Wi-Fi 6, Bluetooth 5.0, PCIe 4G/5G expansion, dual MIPI-CSI camera interface, CAN Bus, and wide-temperature operation from -20°C to 70°C. With Android 12.0 and Linux support, the ITX-Z3588 is the ultimate platform for intelligent industrial computers, all-in-one touch systems, and high-performance edge AI applications.

Key Advantages

• 6 TOPS Built-in NPU for Edge AI: On-device AI acceleration supports most mainstream models — run object detection, face recognition, and neural networks directly without cloud dependency or external accelerators.

• 8K Display with Triple Independent Screens: 2× HDMI 2.1 outputs support up to 8K resolution, plus LVDS, MIPI-DSI, VGA, and optional VBO — enabling triple independent displays for command centers, industrial dashboards, and multi-screen control systems.

• Massive Storage Flexibility: 2× SATA 3.0 ports + M.2 PCIe NVMe SSD support + onboard eMMC (up to 256GB) — configure the perfect storage solution for data logging, video recording, and AI model storage.

• Isolated Industrial Serial Ports: 2× DB-9 serial ports with signal and power isolation — protect against ground loops, voltage spikes, and electrical noise, ensuring reliable communication in harsh industrial environments.

• Dual Gigabit Ethernet with PoE: 2× 10/100/1000M Ethernet ports with 4-pin PoE PD header — enable network redundancy, fast data transfer, and power over Ethernet for simplified cabling.

• Dual MIPI-CSI Camera Interface: 40-pin FPC dual MIPI-CSI port supports stereo vision and dual-camera setups — ideal for machine vision, security surveillance, and advanced computer vision applications.

• Wi-Fi 6 + Bluetooth 5.0: Built-in Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with dual-band 2.4GHz/5GHz and Bluetooth 5.0 — next-gen wireless for fast, reliable communication in crowded environments.

Why Choose This Board?

• The Sweet Spot for Edge AI – 6 TOPS Without Overpaying: Market data shows 6 TOPS is the "sweet spot" for most industrial AI workloads — YOLO object detection, pose estimation, and multi-channel video analytics all run smoothly. Above 10 TOPS adds significant cost with diminishing returns for most use cases. Get the performance you need, without paying for unused headroom.

• Industrial Reliability That Saves Field Service Costs: Isolated DB-9 ports protect against electrical noise and ground loops — the #1 cause of communication failures in factory environments. Customers who have dealt with random serial disconnections will immediately recognize the value. Less downtime, fewer service calls, lower total cost of ownership.

• 8K Triple-Display – Ready for the 2026 Market Shift: 8K is becoming the new standard in industrial displays and control centers, not just a spec sheet number. The ITX-Z3588 equips your product for the next wave of visual demands in command centers, security monitoring, and premium HMI applications — where clients now expect nothing less than 8K clarity.

• Mini-ITX – Drop-in Replacement for x86 Systems: The biggest barrier to ARM adoption in industrial computing is board compatibility. With Mini-ITX standard mounting, the ITX-Z3588 fits into existing x86 chassis — no custom brackets, no redesign, no engineering hours wasted. Upgrade to ARM performance and AI capabilities without a complete system overhaul.

• Future-Proof Memory and Storage: AI models are growing — some already exceed 2GB. With support for up to 32GB LPDDR4, M.2 NVMe for OS, and dual SATA 3.0 for data, your system won't hit a memory or storage bottleneck two years from now. Scale with confidence as workloads evolve.

• Delivery & Packaging

  Item	Details
  Packaging	Anti-static bag + foam padding + industrial carton
  MOQ	1 piece (sample order), 100+ for volume pricing
  Lead Time	3–5 working days for samples; 15–20 working days for bulk orders
  Shipping	DHL, FedEx, UPS, or by sea (customer's choice)
