C3 Smart Minicomputer Board 1x external OTG Micro-USB interface USB 2.0 ports (2 Ext. + 2 Int.)
C3 Smart Minicomputer Board 1x external OTG Micro-USB interface USB 2.0 ports (2 Ext. + 2 Int.)
C3 Smart Minicomputer Board 1x external OTG Micro-USB interface USB 2.0 ports (2 Ext. + 2 Int.)
C3 Smart Minicomputer Board 1x external OTG Micro-USB interface USB 2.0 ports (2 Ext. + 2 Int.)
Specifications
Brand Name :
Shi Zun
Model Number :
C3 Board
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100+pcs+day
Packaging Details :
100mm* 72mm* 17mm
CPU :
Rockchip RK3288,quad-core Cortex-A17, up to 1.6GHz
GPU :
Quad-core Mali-T764
System Memory :
2GB(optional 4GB) LPDDR3
Storage :
8GB eMMC (128GB Max)
HDMI :
HDMI 2.0 interface, up to 4Kresolution
VGA :
VGA interface, up to 1080P resolution
Headphone :
3.5mm jack (supports HPD)
Line Out :
Standard left/right channel output
Mic :
Single-ended MIC input
USB Host :
USB 2.0 ports (2 Ext. +2 Int.)
USB OTG :
1x external OTG Micro-USB interface
TF Card :
Push-push type TF card slot (128GB Max)
Serial Port :
4x TTL/RS-232compatible serial ports
RTC :
Low power RTC with a CR1220 battery
GPIO :
9x GPIO ports
IR :
Infrared receiving pin header interface
Button :
Burn key and power/ reset pin header
Indicator Light :
3 indicator lights for standby/ network/ operation
Ethernet :
10/100Mbps adaptive Ethernet port
Wi-Fi :
802.11 b/g/n/ac
Bluetooth :
BT V4.0 (optional)
4G/3G :

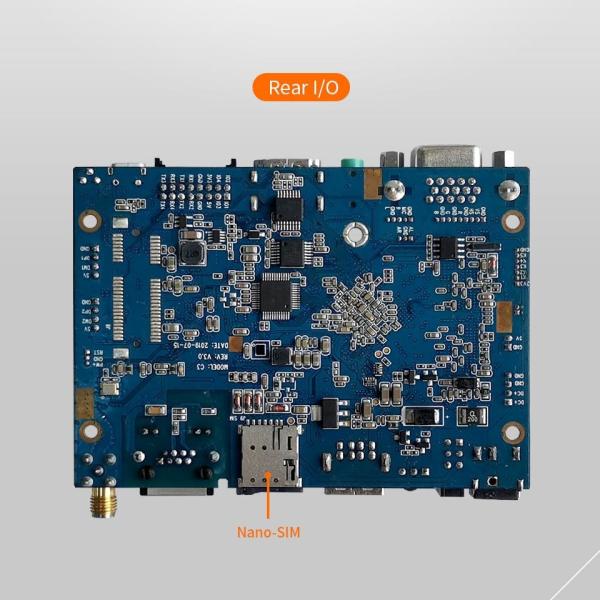

Built-in MiniPCI-E interface, externally expanded 4G/3G module, onboard pop-up Nano-SIM card slot
DC Input :
12V DC socket (9V-15V wide voltage)
Dimensions :
100mm* 72mm
Thickness :
17mm
Structure Compatibility :
Compatible and interchangeable between models C0/ C3
Operating Temperature :
0℃- 70℃
Humidity :
0%-95% (non-condensing)
Android :
Android: 7.1 (recommended), 8.1 (optional)
Linux System :
Ubuntu 18.04, Debian 9 and Buildroot+QT 2018.02 are optional
Description

C3 Smart Minicomputer Board 1x external OTG Micro-USB interface USB 2.0 ports (2 Ext.+ 2 Int.)

C3 Smart Minicomputer Board Description:

  1. The C3 board adopts the Rockchip RK3288 processor and integrated quad-core Cortex-A7 processor, with dominant frequency up to 1.6GHz.
  2. The integrated Mali-T764 graphics processing unit (GPU) supports OpenGL ES 1.1/2.0/3.1 and can achieve 4K and 1080P hardware video decoding, respectively. Various onboard display and expansion interfaces are available for secondary development of openAPI SDK, which can be quickly used in various industries.


C3 Smart Minicomputer Board Parameters:

Keyword:

 Smart Minicomputer Board

CPU:

 Rockchip RK3288,quad-core Cortex-A17, up to 1.6GHz

System Memory:

 2GB (optional 4GB) LPDDR3

Storage:

 8GB EMMC (128GB Max.)

USB Host:

 USB 2.0 ports (2 Ext. + 2 Int.)

HDMI:

 HDMI 2.0 interface, up to 4K resolution
VGA: VGA interface, up to 1080P resolution Indicator light: 3 indicator lights for standby/ network/ operation
USB OTG: 1x external OTG Micro-USB interface GPU: Quad-core Mali-T764
GPIO: 9x GPIO ports Button: Burn key and power/reset pin header

Android:

 Android 7.1 (recommended)

Serial Port:

4x TTL/RS-232 compatible serial ports

C3 Smart Minicomputer Board Feature:

  1. Processor: Equipped with a low-power SoC based on a RISC-V 32-bit single-core processor, with a clock speed of up to 160MHz.

  2. Wireless Connectivity: Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE).

  3. Memory and Storage: Built-in 400KB SRAM and 384KB ROM, with 4MB of Flash storage encapsulated.

  4. Design: Features a stamp hole design, with an onboard ceramic antenna, making it easy to integrate into user-designed baseboards.

  5. Power Consumption Control: Supports flexible clock control, separate module power settings, and other controls to achieve low-power modes for various scenarios.

  6. USB Interface: Integrates a USB serial port full-speed controller, with 15 GPIOs that can be flexibly configured for peripheral functions.

  7. Peripheral Interfaces: Features 3×SPI, 1×I2C, 2×UART, 1×I2S, 2×ADC, and other peripherals.

  8. Programming Support: Supports C/C++ and MicroPython, with a comprehensive SDK and open-source documentation and tutorials for easy上手 and quick integration into applications.

  9. Other Features:

    • USB Type-C interface.
    • BOOT button: Press and then reset to enter download mode.
    • RESET button for resetting the board.
    • WS2812 cool RGB LED.
    • ME6217C33M5G low-dropout LDO, with a maximum current of 800mA.
    • 2.4G ceramic antenna.

C3 Smart Minicomputer Board 1x external OTG Micro-USB interface USB 2.0 ports (2 Ext. + 2 Int.)C3 Smart Minicomputer Board 1x external OTG Micro-USB interface USB 2.0 ports (2 Ext. + 2 Int.)C3 Smart Minicomputer Board 1x external OTG Micro-USB interface USB 2.0 ports (2 Ext. + 2 Int.)C3 Smart Minicomputer Board 1x external OTG Micro-USB interface USB 2.0 ports (2 Ext. + 2 Int.)C3 Smart Minicomputer Board 1x external OTG Micro-USB interface USB 2.0 ports (2 Ext. + 2 Int.)C3 Smart Minicomputer Board 1x external OTG Micro-USB interface USB 2.0 ports (2 Ext. + 2 Int.)C3 Smart Minicomputer Board 1x external OTG Micro-USB interface USB 2.0 ports (2 Ext. + 2 Int.)C3 Smart Minicomputer Board 1x external OTG Micro-USB interface USB 2.0 ports (2 Ext. + 2 Int.)C3 Smart Minicomputer Board 1x external OTG Micro-USB interface USB 2.0 ports (2 Ext. + 2 Int.)
