UPC-3568 Intelligent Industrial Computing Motherboard

Overview

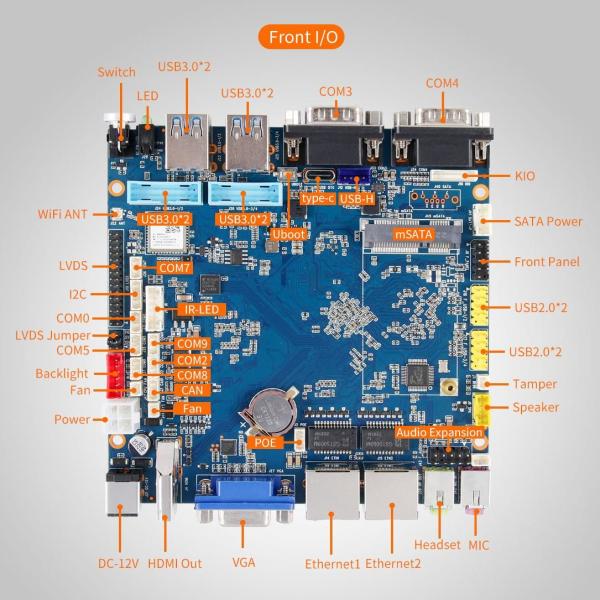

The UPC-3568 Intelligent Industrial Computing Motherboard is designed to empower traditional embedded hardware with AI capabilities, powered by the Rockchip RK3568 quad-core Cortex-A55 processor running at up to 2.0GHz. The integrated NPU delivers up to 1 TOPS AI算力, enabling on-device intelligence for machine vision, multimedia data processing, and high-speed data transmission applications. What sets the UPC-3568 apart is its 2× isolated DB-9 serial ports, 2× Gigabit Ethernet, Wi-Fi 6, USB Type-C, SATA 3.0, and CAN Bus — delivering industrial-grade connectivity in a compact 120mm × 120mm form factor. The board also features HDMI 2.0a (4K), LVDS, and VGA display interfaces, 8Ω 6W dual amplifier output, and wide-temperature operation from -20°C to 70°C. With support for Android 11 and Linux, the UPC-3568 is the ideal platform for all-in-one industrial computers, PC boxes, thin clients, and embedded edge computing applications.

Key Advantages

• 1 TOPS NPU for Edge AI Acceleration: Built-in neural processing unit enables on-device AI inference for machine vision, object detection, and data analytics — reduce cloud dependency and latency while enhancing data privacy.

• 2× Isolated DB-9 Serial Ports: Dual DB-9 ports with signal and power isolation — protect against ground loops, voltage spikes, and electrical noise, ensuring reliable communication in harsh industrial environments.

• 2× Gigabit Ethernet for Network Redundancy: Dual 10/100/1000M Ethernet ports enable network redundancy, fast data transfer, and seamless integration with industrial networks.

• Wi-Fi 6 + Bluetooth 5.0: Built-in Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with dual-band 2.4GHz/5GHz and Bluetooth 5.0 — next-gen wireless for fast, reliable communication in crowded industrial environments.

• USB Type-C + USB 3.0: Type-C port for modern connectivity and debugging, plus USB 3.0 for 10× faster data transfer than USB 2.0 — enabling high-speed camera uploads and firmware updates.

• SATA 3.0 + M.2 Expansion: Standard SATA 3.0 port with power header for mass storage, plus flexible expansion options — ideal for data logging, video storage, and large datasets.

• CAN Bus for Industrial Integration: Onboard CAN Bus interface enables seamless communication with industrial controllers, sensors, and automotive-grade peripherals.

• Wide-Temperature Reliability: -20°C to 70°C operating temperature range — stable performance in outdoor installations, cold chain environments, and industrial settings.

Why Choose This Board?

• Industrial-Grade Connectivity Where It Matters: Isolated DB-9 serial ports with signal and power isolation are non-negotiable in factory environments where electrical noise and ground loops can cripple communication. The UPC-3568 protects your system where it matters most — saving field service costs and preventing costly downtime.

• Designed for IIoT and Edge Computing: With 2× Gigabit Ethernet for network redundancy, Wi-Fi 6 for wireless flexibility, CAN Bus for industrial communication, and SATA 3.0 for local storage — the UPC-3568 provides the complete connectivity suite for modern IIoT gateways and edge computing nodes.

• AI at the Edge, Not in the Cloud: The 1 TOPS NPU enables real-time AI inference directly on the device — machine vision, predictive maintenance, and data analytics happen locally, with no cloud latency, no recurring costs, and complete data privacy. This is the future of industrial computing, and the UPC-3568 delivers it today.

• One Board, Multiple Form Factors: From all-in-one industrial computers to compact PC boxes and thin clients — the UPC-3568's 120mm × 120mm footprint and rich I/O support multiple product configurations with the same board, simplifying inventory and reducing development costs.

• Future-Proof with Wi-Fi 6: Wi-Fi 6 delivers faster speeds, lower latency, and better performance in crowded environments — essential for industrial IoT deployments where dozens of devices compete for wireless bandwidth. Future-proof your product with the latest wireless standard.

• Delivery & Packaging

  Item	Details
  Packaging	Anti-static bag + foam padding + industrial carton
  MOQ	1 piece (sample order), 100+ for volume pricing
  Lead Time	3–5 working days for samples; 15–20 working days for bulk orders
  Shipping	DHL, FedEx, UPS, or by sea (customer's choice)

​
