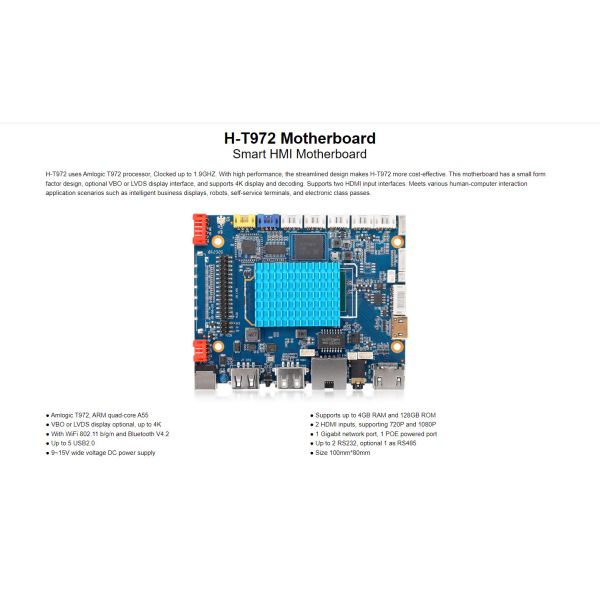

H-T972 Smart HMI Motherboard

Overview

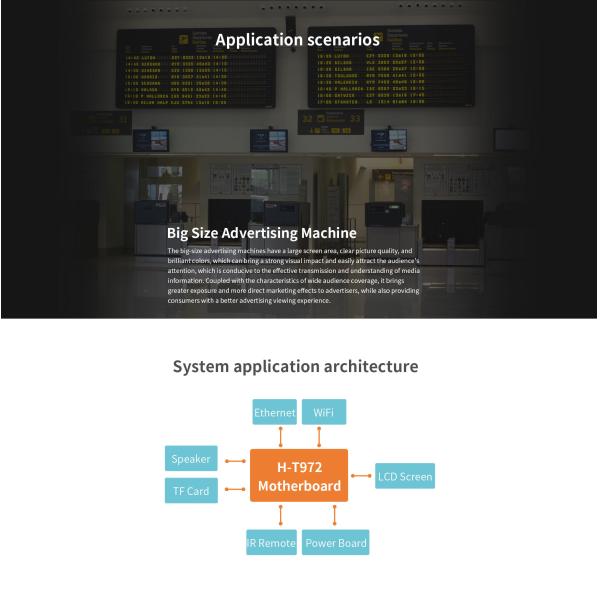

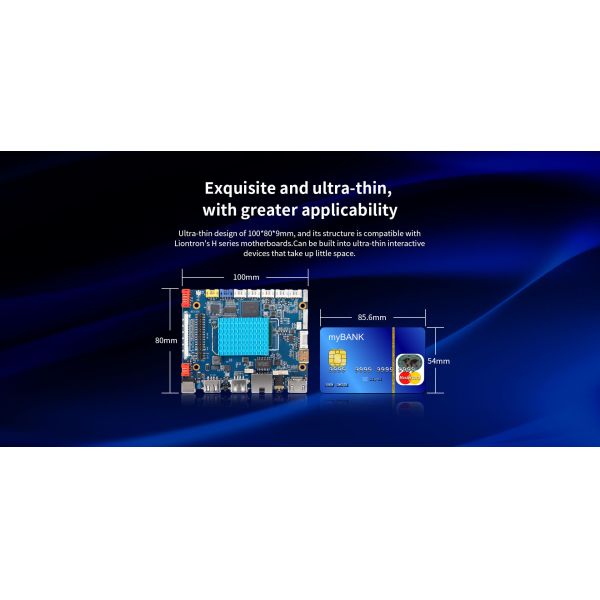

The H-T972 Smart HMI Motherboard delivers high-performance multimedia capabilities at a cost-effective price point, powered by the Amlogic T972 quad-core Cortex-A55 processor running at up to 1.9GHz. This compact 100mm × 80mm board is designed for video-centric HMI applications — from smart signage and digital menu boards to interactive kiosks, service robots, and electronic class schedules. What sets the H-T972 apart is its dual HDMI input capability (2× HDMI 2.0) for video capture and display, combined with 4K display support via industry-standard 51-pin VBO interface (with LVDS as an alternative). The board also features 8Ω 6W dual amplifier output, 10/100/1000M Gigabit Ethernet with PoE support (4-pin header), 5× configurable serial ports, and wide-temperature operation from -20°C to 70°C. Ships with Android 9.0, the H-T972 is the ideal platform for video-rich, cost-conscious HMI deployments.

Key Advantages

• Dual HDMI Input for Video Capture: 2× HDMI 2.0 inputs enable simultaneous video capture from external sources — perfect for picture-in-picture displays, security camera feeds, video conferencing, and multi-source content mixing.

• 4K Display with VBO Interface: Industry-standard 51-pin VBO interface supports 4K display output — delivering stunning ultra-HD visuals for premium digital signage and interactive displays. LVDS alternative available for 1080P panels.

• Gigabit Ethernet with PoE Support: 10/100/1000M Ethernet with 4-pin PoE header enables power and data over a single cable — simplify installation, reduce cabling costs, and deploy in locations without nearby power outlets.

• High-Performance Multimedia Processing: The T972's 1.9GHz clock speed and 4K decoding capability deliver smooth video playback, responsive UI interactions, and efficient multi-source content handling.

• Wide-Temperature Reliability: -20°C to 70°C operating temperature range ensures stable operation in outdoor kiosks, cold chain environments, and unheated industrial spaces.

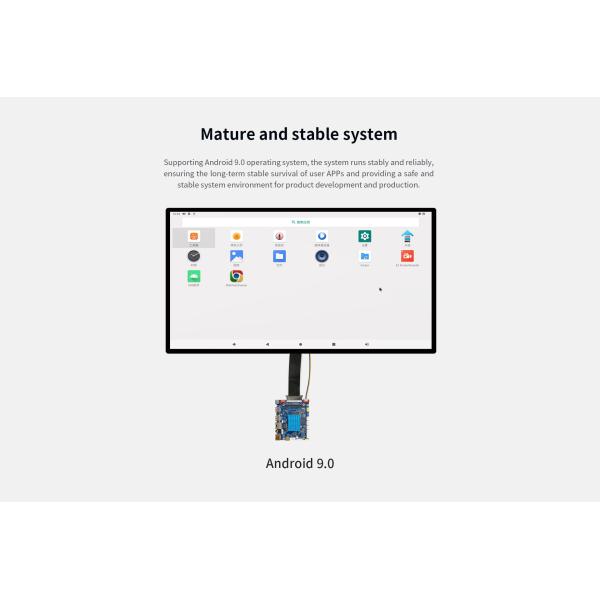

• Modern Android 9.0 Platform: Ships with Android 9.0 — providing modern security features and access to the latest Android ecosystem for application development.

Why Choose This Board?

• Dual HDMI Input — A Unique Advantage: Most HMI boards offer only display output. The H-T972's 2× HDMI inputs enable video capture from external sources — security cameras, set-top boxes, document cameras — for picture-in-picture, content switching, and video conferencing applications.

• 4K + PoE + Gigabit Ethernet — The Complete Connectivity Package: 4K display, Gigabit Ethernet, and PoE support in one compact board — high-resolution visuals, fast networking, and simplified installation. Ideal for digital signage deployments where power outlets are limited.

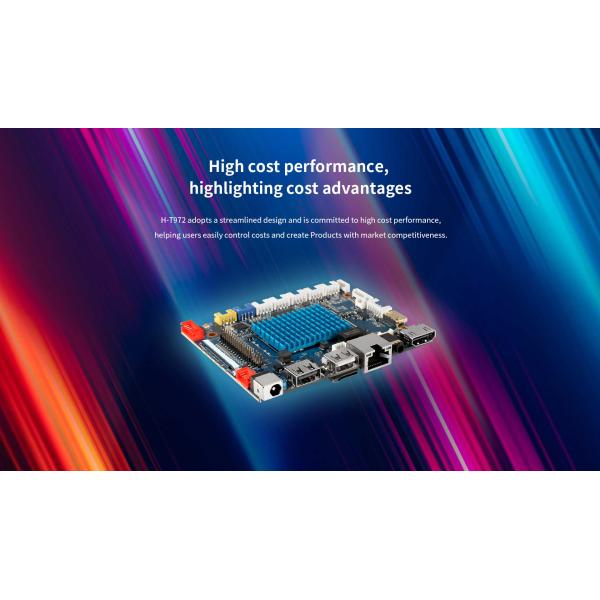

• Video-Centric Performance at Entry-Level Cost: The T972 platform delivers excellent video decoding and display capabilities at a competitive price point — perfect for digital signage, menu boards, and interactive kiosks where multimedia performance matters more than raw compute power.

• Built for Indoor and Outdoor Environments: -20°C to 70°C operation ensures reliable performance in outdoor installations, unheated entryways, and cold storage facilities — where consumer-grade boards would fail.

• Flexible Display Options: VBO for 4K panels and LVDS for 1080P panels — choose the display technology that fits your design and cost requirements without board modifications.

• Delivery & Packaging

  Item	Details
  Packaging	Anti-static bag + foam padding + industrial carton
  MOQ	1 piece (sample order), 100+ for volume pricing
  Lead Time	3–5 working days for samples; 15–20 working days for bulk orders
  Shipping	DHL, FedEx, UPS, or by sea (customer's choice)
