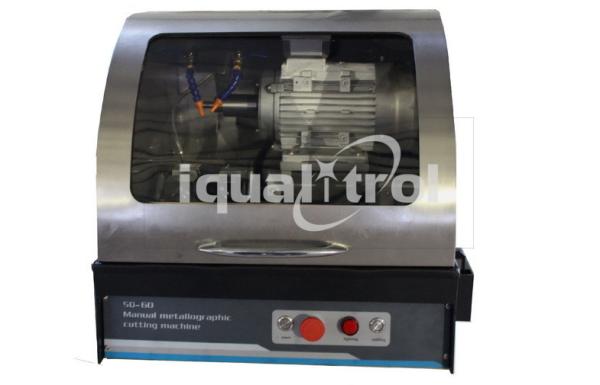

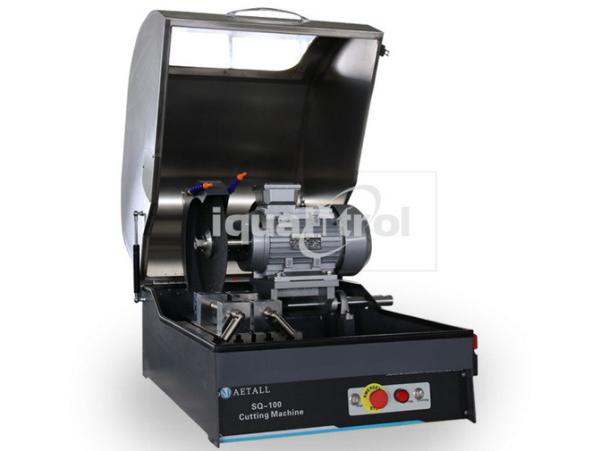

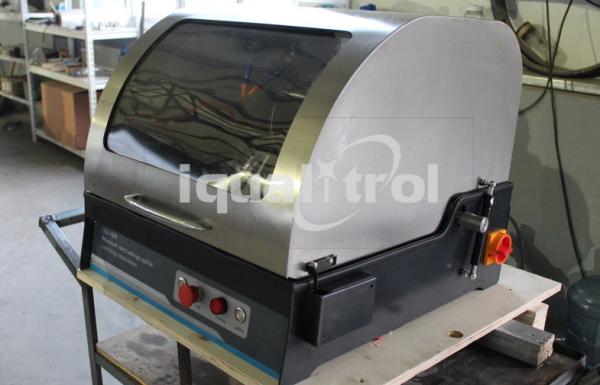

Overheating Protection Manual Metallographic Cutting Machine with Recycling Water Cooling
Overheating Protection Manual Metallographic Cutting Machine with Recycling Water Cooling
Overheating Protection Manual Metallographic Cutting Machine with Recycling Water Cooling
Overheating Protection Manual Metallographic Cutting Machine with Recycling Water Cooling
Overheating Protection Manual Metallographic Cutting Machine with Recycling Water Cooling
Overheating Protection Manual Metallographic Cutting Machine with Recycling Water Cooling
Specifications
Brand Name :
iqualitrol
Model Number :
SQ-60
MOQ :
1 Set
Payment Terms :
T/T, Western Union
Supply Ability :
20 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Box
Model :
SQ-60
Speed :
Rotation Speed 2800rpm
Diameter :
Max Cutting Diameter Φ60mm
Size :
Cut Disc Φ250mm x2mm x32mm
Motor :
2.4KW
Cooling :
Water Cooling
Description

Overheating Protection Manual Metallographic Cutting
Machine with Recycling Water Cooling System

Technical Data Download: iqualitrol Cutting Machine SQ-60

Brief Introduction:

iqualitrol SQ-60 Metallographic sample cutting machine is suitable for cutting various metal, non metal material in order to observe the metallographic, petrographic structure.

The machine has a cooling device. When using the configured cooling liquid, the heat may be taken away to avoid overheating. It is easy for the user to operate the machine. Therefore the machine is one of the equipments for samples in the factories, scientific research institution and colleges laboratory.

Technical Specification:

Model SQ-60
Input voltage 380V50HZ/3Ph/4 Wires
Motor: 2.4KW
Spindle rotation 2800r/min
MAX cutting diameter Φ60mm
Cutting wheel size Φ250mm x2mm x32mm
Dimension 740mm x620mm x450mm
Net weight 82kg


Specimen Cutting Machine:

When cutting a specimen from a larger piece of material, care must be taken to ensure that it is representative of the features found in the larger sample, or that it contains all the information required to investigate a feature of interest.

One problem is that preparation of the specimen may change the microstructure of the material, for example through heating, chemical attack, or mechanical damage. The amount of damage depends on the method by which the specimen is cut and the material itself.

Cutting with abrasives may cause a high amount of damage, while the use of a low-speed diamond saw can lessen the problems. There are many different cutting methods, although some are used only for specific specimen types. iqualitrol provides the iCut-864 low speed diamond saw for cutting OM (optical microscope), SEM (scanning electron microscope), and even TEM (transmission electron microscope) specimen.
