Specifications
Brand Name :
iqualitrol
Model Number :
iCut-865
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
20 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Pallet
Feed Speed :
0-1.5mm/s
Rotate Speed :
1950rpm
Cutting Disc :
Φ200 x 1 x 32mm
Motor :
1.8KW
Description

Automatic Precision Sample

Abrasive Cutting Machine iCut-865 with Cooling System

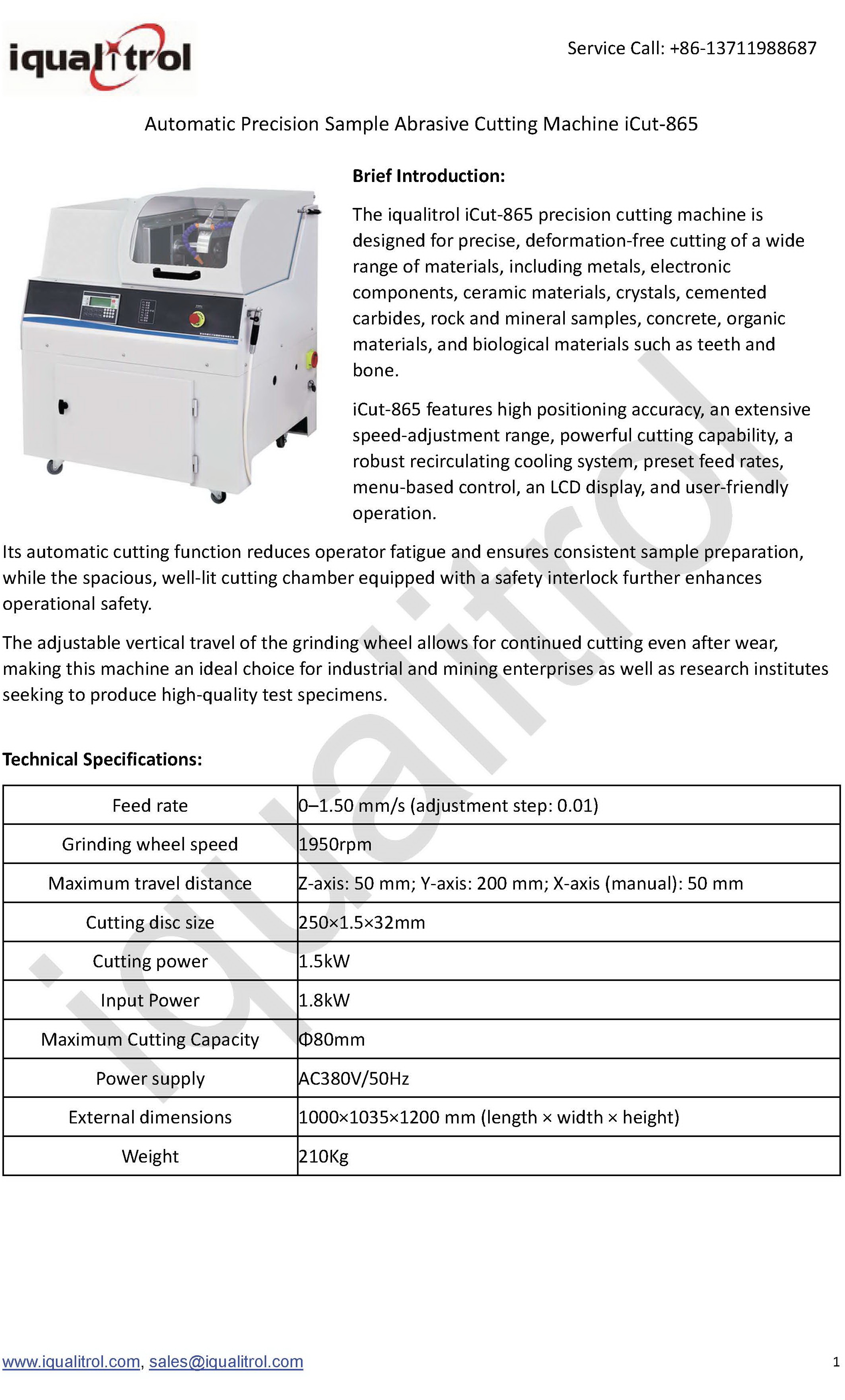

Download Technical Data: iqualitrol Cutting Machine iCut-865

Brief Introduction:

The iqualitrol iCut-865 precision cutting machine is designed for precise, deformation-free cutting of a wide range of materials, including metals, electronic components, ceramic materials, crystals, cemented carbides, rock and mineral samples, concrete, organic materials, and biological materials such as teeth and bone.

iCut-865 features high positioning accuracy, an extensive speed-adjustment range, powerful cutting capability, a robust recirculating cooling system, preset feed rates, menu-based control, an LCD display, and user-friendly operation.

Its automatic cutting function reduces operator fatigue and ensures consistent sample preparation, while the spacious, well-lit cutting chamber equipped with a safety interlock further enhances operational safety.

The adjustable vertical travel of the grinding wheel allows for continued cutting even after wear, making this machine an ideal choice for industrial and mining enterprises as well as research institutes seeking to produce high-quality test specimens.

Technical Specifications:

Feed rate 0–1.50mm/s (adjustment step: 0.01)
Grinding wheel speed 1950rpm
Maximum travel distance Z-axis: 50 mm; Y-axis: 200 mm; X-axis (manual): 50 mm
Cutting disc size 250×1.5×32mm
Cutting power 1.5kW
Input Power 1.8kW
Maximum Cutting Capacity Φ80mm
Power supply AC380V/50Hz
External dimensions 1000×1035×1200 mm (length × width × height)
Weight 210Kg
