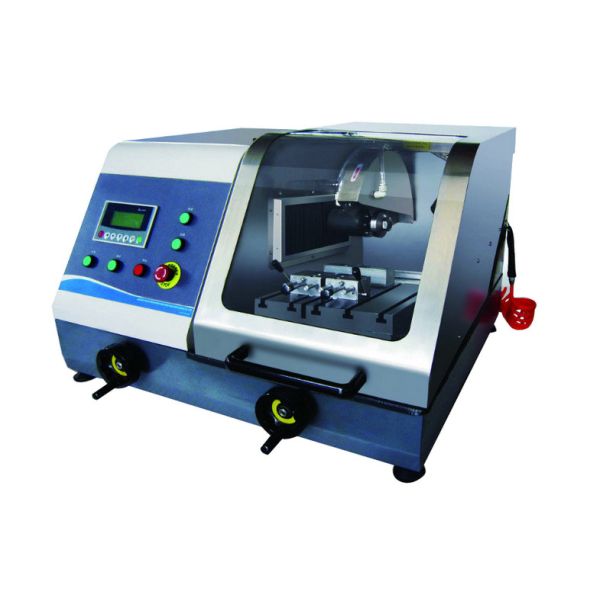

Manual and Automatic Metallographic Cutting Machine with Max Section Diameter 100mm
Manual and Automatic Metallographic Cutting Machine with Max Section Diameter 100mm
Manual and Automatic Metallographic Cutting Machine with Max Section Diameter 100mm
Manual and Automatic Metallographic Cutting Machine with Max Section Diameter 100mm
Manual and Automatic Metallographic Cutting Machine with Max Section Diameter 100mm
Manual and Automatic Metallographic Cutting Machine with Max Section Diameter 100mm
Manual and Automatic Metallographic Cutting Machine with Max Section Diameter 100mm
Manual and Automatic Metallographic Cutting Machine with Max Section Diameter 100mm
Specifications
Brand Name :
iqualitrol
Model Number :
iCut-859
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
20 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Box
Cut Disc :
Size 350x2.5x32mm
Section :
Max Diameter 100mm
Rotate Speed :
2200rpm
Motor Power :
3.3KW
Description

Manual and Automatic Metallographic Cutting Machine with Max Section Diameter 100mm

Download Technical Data: iqualitrol Cutting Machine iCut-859

Brief Introduction:

iCut-859 Manaul and Automatic Cutting machine is suitable for cutting precision various materials with strong ability, high reliability, and easy operation.

The machine consists of machine body, electrical control tank, super cutting room, and cooling system, supporting more economical and convenient cutting modes, meanwhile user can define speed and track.

iCut-859 has the features of self-test, security, running tips in order to improve the quality of cutting sample. It is one of the necessary equipment in laboratory of colleges, research institutes and factories.

Technical Specification:

Model iCut-859
Input voltage AC380V/50HZ/3Ph
Motor 3.3KW
Spindle rotation 2200rpm
MAX cutting diameter Φ100mm for cylinder samples
Cutting wheel size Φ350x2.5x32mm
Max moving travel 145mm
Max working table travel 300mm
Dimension 900x860x620mm
Net weight 272kg
