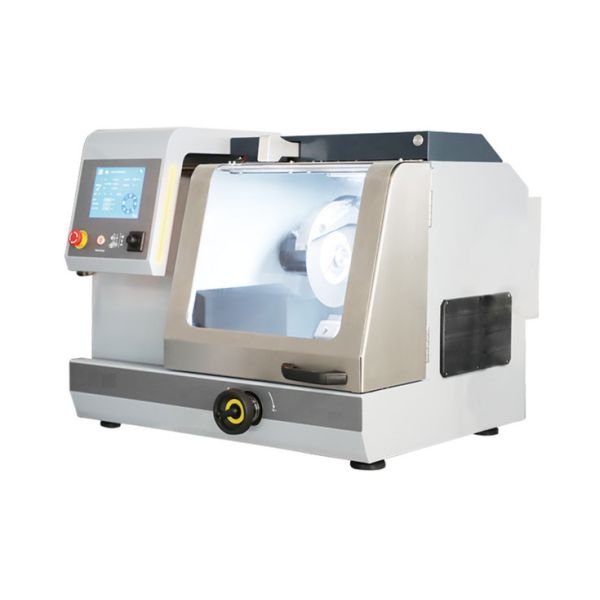

Large Worktable Metallographic Automatic Cut-off Machine with Touch Screen Controller
Large Worktable Metallographic Automatic Cut-off Machine with Touch Screen Controller
Large Worktable Metallographic Automatic Cut-off Machine with Touch Screen Controller
Large Worktable Metallographic Automatic Cut-off Machine with Touch Screen Controller
Specifications
Brand Name :
iqualitrol
Model Number :
AC-250
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
5 sets per month
Delivery Time :
20 working days
Packaging Details :
Plywood Box
Model :
AC-250
control of XYZ :
Fully automatic control of XYZ axes
Worktable :
Extra-large worktable 300*280mm
Cutting capacity :
Φ85mm for cylinder samples
Speed :
1000-3000rpm
Cutting Modes :
Vertical cutting, horizontal cutting
Description

Large Worktable Automatic Cut-off Machine iqualitrol AC-250 for Sample Preparation with Touch Controller

Download Technical Data: iqualitrol Cutting Machine AC-250

Brief Introduction:

AC-250 is a fully automatic cutting machine, suitable for cutting various metal materials, ceramics, quartz glass and petrographic samples, etc.

AC-250 can realize fully automatic cutting of multiple sections with different thicknesses in XYZ three axes.

Features:

1. Fully automatic control of XYZ axes;

2. Extra-large worktable and cutting chamber, the size of the worktable is 300*280mm;

3. Opening on both sides for extra-long specimens;

4. 8" Touch-Screen user interface;

5. Laser tool setting device.

Technical Specifications:

Model AC-250
Cutting wheel Speed 1000-3000rpm
Diameter Φ254mm
Hole-distance Φ32mm
Electricity Input 3x380V/50Hz+Neutral+Ground
Power 3.8KW
Cutting capacity Maximum diameter Φ85mm
Maximum square section 85x250mm
Intelligent cutting Cutting mode Vertical cutting / horizontal cutting
Feeding method Constant speed cutting
Travel Feeding method

Y direction (front-back): 250mm;

X direction (left-right): 100mm
Working table Dimension 280x300mm (W*D)
T-Slot 12mm
Dimensions WxDxH 930x900x720mm
Weight 250kg
