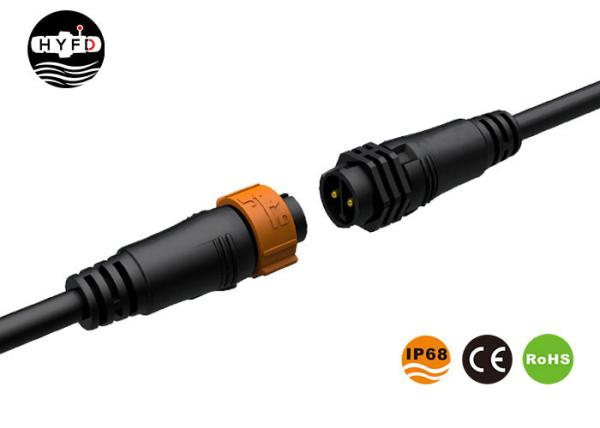

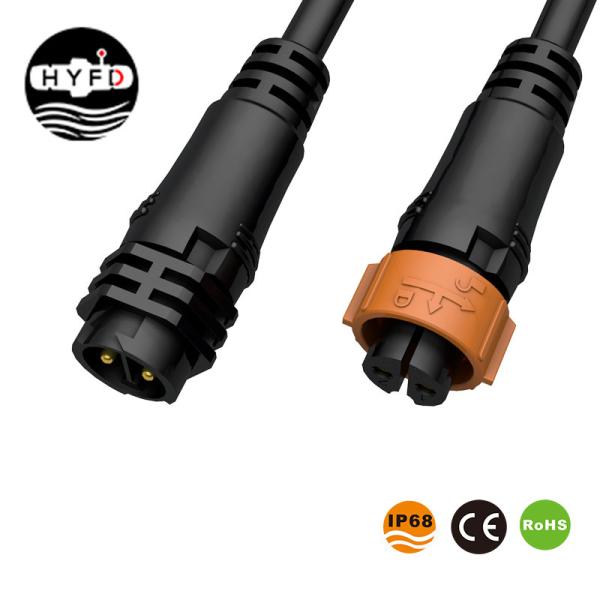

Male Female M19 11.5MM 3 Pin Circular Connectors
Male Female M19 11.5MM 3 Pin Circular Connectors
Male Female M19 11.5MM 3 Pin Circular Connectors
Male Female M19 11.5MM 3 Pin Circular Connectors
Specifications
Brand Name :
HYFD
Model Number :
SA19
Certification :
CE,RoHS,IP68,CQC
Place of Origin :
Mainland China
MOQ :
200/500
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20K sets per month
Delivery Time :
5~12 working days depending on exact order quantities
Packaging Details :
Neutral Carton Packaging
Material :
Nylon PA66
Contact material :
Brass
Finish :
Gold
Pin Numbers :
2 pin
Wire OD :
11.5MM
Color :
Black
Description

3 Pin Circular Connector M19 Connector Male Female Auto Electrical Waterproof Power Connector Molded With Cable

Introduction:

IP68 M19 male female auto electrical wire connector.

Quick connector molded with cable.

Cable can be customized.

Nut type docking assembly, simple to use and convenient installation;

The generic products of Guangdong Province semiconductor lighting benchmark system enterprise;

Application:

Our waterproof connector is widly use for led light, power, driver, electrical equipment, auto equipment, automatic production equipment, etc.

Parameter:

Item name SA19 male female auto electrical wire connector. Connecting code Soldering assembly
Current rating 2A-15A Operating temperature -40℃--105℃
Operating voltage 250V Wire OD ≤11.5mm
Mechanical life 1500 mating cycles Contact pin material Gold plated brass
Contact resistance ≤5mΩ Shell material Nylon(PA66)
Contacts numbers 2p, 3p, 4p, 5p, 6p, 7p, 8p, 9p, 10p, 12p, 14p, 16p, 18p, 2+3p, 2+4p, 2+5p, 3+4p Waterproof level IP68
Cable specification 0.3mm2~2.0mm2 Certification

IP68, CE, ROHS


Packing details:

1) Carton.

2) Plastic bag.

3) Customized packing as per requirement.

Service:

We are a professional manufacturer who owns a factory. We can provide you with:

● Injection molding and mould making.

● Independent research and development.

● Cable and hardware production.

● Perfect assembly workshop.

With us, you can get the best goods in shortest time.

FAQ:

Q1: Are you trading company or manufacturer ?

A1: We are factory.

Q2: What kind of connectors can you provide ?

A3: Our main products are: Screw type , Spring type, Bulkhead type, Pluggable type, Din Rail type, Air plug and Cables assembly.

Q3: How long is your delivery time?

A2: Generally it is 3~5 business days if we have them in stock; and 7~10 business days if no stock. Actually depends on the quantity you need.

Q4: What is your terms of payment ?

A4: We accept T/T.

Quotation will be send you within 24 hours after receiving your specific enquiry.
For more information and items, please contact us.
